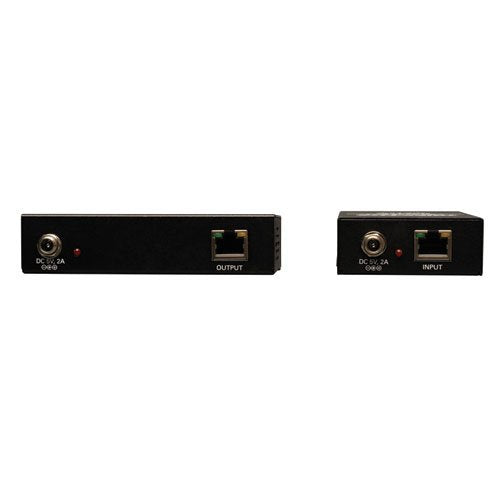

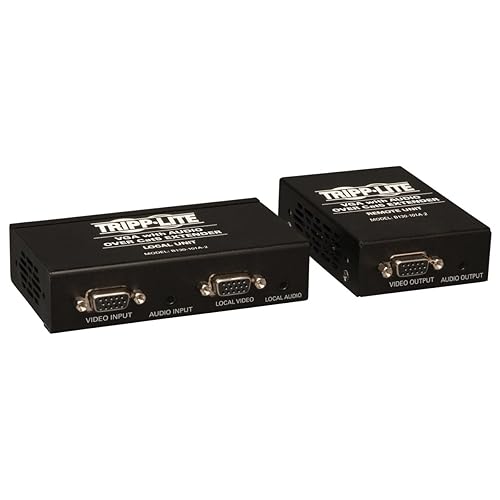

Vga with Audio Over Cat5 / Cat6 Extender, Transmitter and Receiver with Edid Cop

B130-101A-2 Feature FocusView larger

EXTEND YOUR VGA AND AUDIO SIGNAL UP TO 1,000FT. WITH TRIPP LITE!

Don’t sacrifice quality for distance—extend a VGA + stereo audio signal up to 1,000 ft. ! The Tripp Lite B130-101A-2 VGA + Audio over Cat5 Extender Kit delivers peak video and audio performance from VGA-enabled digital video components. When used with 24 AWG Solid-Wire Cat5e/6 cabling like Tripp Lite’s N022-01K-GY or N222-01K-GY, it can extend a 1920 x 1440 (60Hz) signal up to 500 ft. or a 1024 x 768 (60Hz) signal up to 1,000 ft. For maximum image quality between 500 and 1,000 ft. , use Zero-Skew cable such as Tripp Lite P524-01K. This kit comes with both the local and remote connection units, allowing you to plug in and get started right away. With no software or drivers to install, the B130-101A-2 provides total plug-and-play convenience. For peace of mind, the B130-101A-2 comes backed by a one-year warranty.

B130-101A-2 MAIN FEATURES

* Ideal for digital signage applications in schools, churches, retail locations and trade show presentations

* Extends a VGA + Audio signal up to 1,000 ft.

* Supports resolutions up to 1920 x 1440 (60 Hz)

* EDID copy feature ensures optimal display compatibility

* Features built-in 3.5 mm stereo audio connectors for support of high-quality stereo audio

* Built-in equalization control

* One-year warranty

Extend Your Video and Audio Signal up to 1,000ft.View largerTHE SMART SOLUTION FOR DIGITAL SIGNAGE APPLICATIONS

The B130-101A-2 extends a VGA signal hundreds of feet away from the source, making it the ideal solution for digital signage applications in schools, churches, retail locations, tradeshow presentations and more. The B130-101A-2 allows for the video source to be in a secure, remote location for controlled access while still delivering a signal to TVs, projectors and other devices in another area.

When used with 24 AWG Solid Wire Cat5e/6 cable like Tripp Lite’s N022-01K-GY or N222-01K-GY, the B130-101A-2 can extend a 1920x1440 (60Hz) signal up to 500 ft. or a 1024x768 (60Hz) signal up to 1,000 ft. This distance can be further expanded with the addition of B132-110A repeaters. Up to 3 repeaters can be connected, with the B130-101A-2 receiver at the end of the chain, for a total of 4 sets of monitors and speakers. For maximum image quality between 500 and 1,000 ft. , use Zero-Skew cable such as Tripp Lite’s P524-01K.

PREMIUM STEREO AUDIO AND BUILT-IN IMAGE EQUALIZATION

We haven't forgotten the sound! The B130-101A-2 features built-in 3.5 mm stereo audio connectors, allowing it to also carry high-quality stereo audio. This delivers premium sound quality to every point of your application and adds greater functionality to your displays. The B130-101A-2 features built-in image equalization, allowing you to control the way the image appears on your remote display. There are multiple equalization settings and the unit comes with a screwdriver for easy and convenient adjustment.

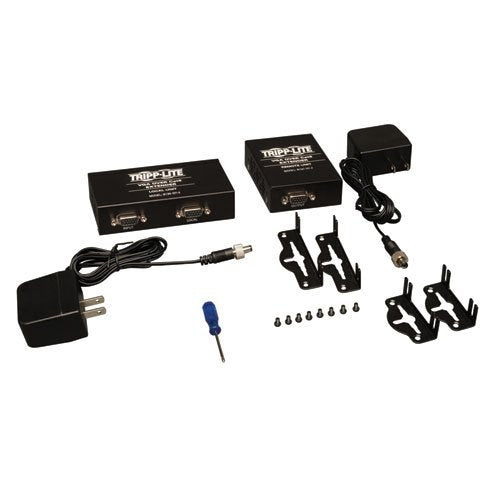

This kit includes units for both the source and display side of your application. Package includes: Local (Transmitter) unit 1 x 4.5 x 2.5 (in. ); Remote (Receiver) unit 1 x 2.5 x 3.5 (in. ); Mini-Screwdriver for EQ/Gain adjustment; (x2) Mounting Hardware Kits; (x2) External Power Supply (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A); and an Owner's Manual.

B130-101A-2
