Lantronix  |  SKU: DT-783384232358

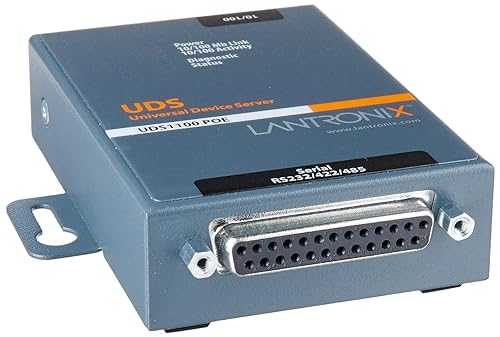

UD11000P0-01 Devise Server 1PORT 10/100 Poe 802.3AF

Model Number: UD11000P0-01

$226.74 USD
Shipping calculated at checkout.


Delivery and Shipping

Add some general information about your delivery and shipping policies.

Latronix Device Server with PoE- Simplicity and Speed The UDS1100 Device Server with PoE enables users to connect, manage and control just about any piece of equipment with a serial port from virtually anywhere over Ethernet or the Internet. Ports: 1 x RJ 45, 1 x DB 25. Dimensions: 3 1/2"(H) x 2 1/2"(W) x 0.9"(D). Compatibility: PC. Form factor: Wall mountable, Processor speed: 48 MHz. Ethernet technology: Fast ethernet, Data link protocol: Ethernet, fast ethernet, RS 232, RS 422, RS 485. Interface/ports: 1 x serial- RS 232/422/485- 25 pin D Sub (DB 25), 1 x network / power- Ethernet 10base T/100Base TX- RJ 45. Connectivity technology: Wired. Status indicators: Link activity, power, status. Standard memory: 256 KB, Memory technology: SRAM, Flash Memory installed (Max): 2 MB. Operating temperature: 41- 122 deg F. Input voltage: 30 VDC. Software selectable RS232, RS422 or RS485, flow control, DHCP support, ARP support, half duplex mode, full duplex mode. Network protocols: TCP/IP, UDP/IP, ICMP/IP, Remote management protocol: SNMP, Telnet, HTTP. Certificate and standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3af, UL, CSA, FCC, CE, TUV, C Tick, C Tick. Weight: 7.05 oz. Warranty: 2 years limited. This external device server with PoE from Latronix allows you to quickly network, monitor, control, and access any device with a serial port over an Ethernet connection. Featuring one port and a small size, this device allows you to replace your dedicated PCs and modem lines with a product that will outperform, and it is wall mountable so it won't get in the way. Install this Latronix device server to control your network equipment with ease.

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
R
Relja Bugarinovic
A great product, highly recommended!

A quick and simple way for the remote management. We’ve used Lantronix products for years and they have been a reliable go-to for our needs. This product is no exception. It allows easy access over Ethernet for our devices that have serial connections. The wall mount functionality and the PoE feature make the product even more versatile.

R
R Williams
Great device for legacy serial to Ethernet needs.

Been using these devices for years, but not POE. POE simplifies the installation with a network so-equipped.
