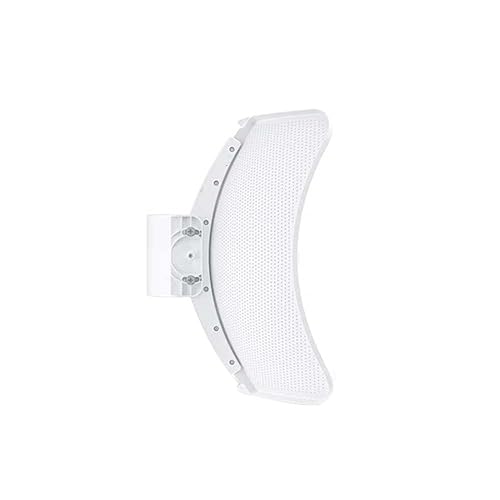

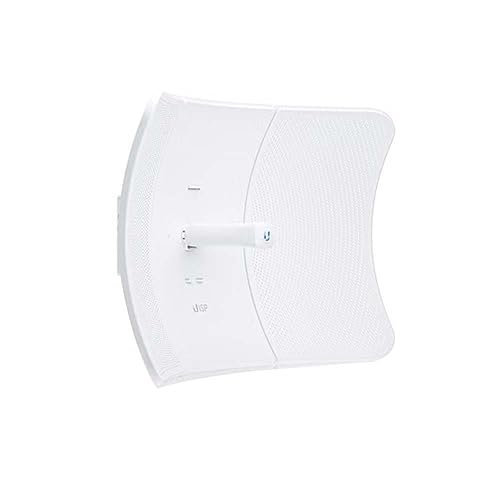

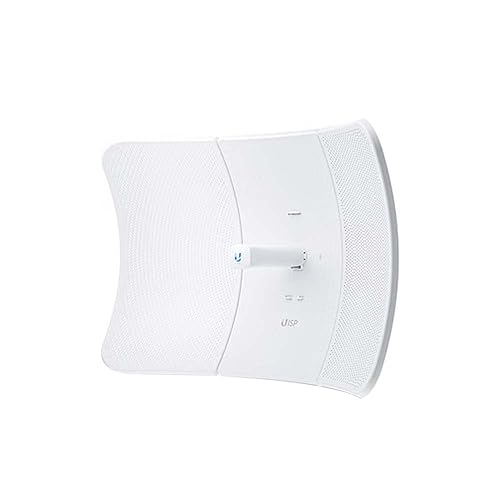

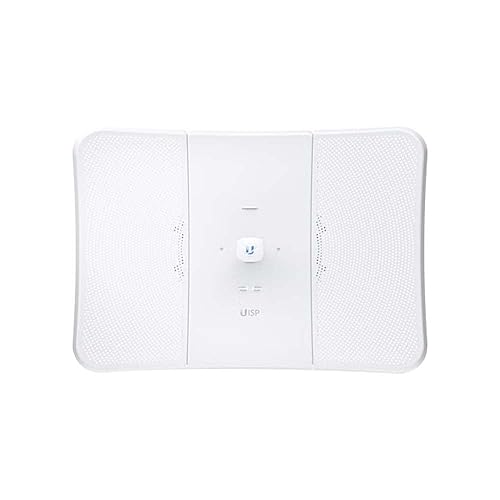

Ubiquiti LTU-XR UISP 5 GHz PtMP CPE LTU Client Radio with 35 km Extreme Range - White
Model Number: LTU-XR
Ubiquiti LTU-XR UISP 5 GHz PtMP CPE LTU Client Radio with 35 km Extreme Range - White is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Ubiquiti LTU-XR UISP 5 GHz PtMP CPE LTU Client Radio with 35 km Ext...
The LTU XR is a high-performance, cost-effective PtMP CPE for wireless ISPs that can reach up to a 900+ Mbps throughput rate. This 5 GHz LTU client establishes extremely long-distance wireless links with an LTU Rocket serving as its base station. The LTU XR also facilitates independent transmission and receives channel frequency configurations anywhere within its radio band to avoid local interference and ensure superior client performance. Additionally, the LTU XR is equipped with a Bluetooth management radio so it's easy to set up and configure with the UISP Mobile app.
TECHNICAL SPECIFICATIONS
Dimensions: 747 x 525 x 347 mm (29.4 x 20.7 x 13.7")
Weight: 3.2 kg (7.1 lb)
Enclosure materials: Aluminum alloy, UV-stabilized polycarbonate
Mount material: UV-stabilized polycarbonate
Mount: Integrated pole mount (included); Pole compatibility: Ø35 to 60 mm (Ø1.38 to 2.36")
Wind loading: 1100 N at 200 km/h (247.29 lbf at 125 mph)
Weatherproofing: IPX6
Networking interface: (1) GbE RJ45 port
Power method: Passive PoE 2-pair (4, 5+; 7, 8-)
Power supply: 24V DC, 0.5A Gigabit PoE adapter (included)
Supported voltage range: 22—26V DC
Max. power consumption: 8.5W
RF connections: Internal
Button: Factory reset
Operating temperature: -40 to 55° C (-40 to 131° F)
Operating humidity: 5 to 95% non-condensing
Certifications: FCC, IC, CE
OS: airOS
Modes: PtMP CPE only
Services: SNMP, SSH, dynamic DNS, webserver, remote log, ping watchdog
Utilities: airView, speed test, alignment, discovery, ping, traceroute, cable test, constellation
Auto distance adjustment: Yes
Auto power adjustment: Yes
Network: Router mode
Security: Yes
Statical reporting: Yes
Management interface: Bluetooth management for easy setup over UISP App; WEB UI
Minimum software requirements: Any modern web browser/iOS or Android based smartphone
Maximum throughput: 900+ Mbps* (*FW version 2.3.0 and later)
Encryption: WPA2-PSK (AES)
Uplink/downlink ratio: 25/75, 33/67, 50/50
Operating frequency*: 5.15 to 5.95 GHz (*Depends on regulatory region)
Max. conducted TX power: 22 dBm per Chain
Channel bandwidth: 10/20/30/40/50/60/80/100 MHz* (*FW version 2.3.0 and later)
Antenna gain: 29 dBi
Isolation: 20 dB
Beamwidth: HPOL: 3 dB: 5.5°, 6 dB: 7.5°; VPOL: 3 dB: 5.5°, 6 dB: 7.5°; Elevation: 3 dB: 5.5°, 6 dB: 7.5°
Electrical downtilt: 0°
LTU-XR
| Brand | Ubiquiti Networks |
| Manufacturer | Ubiquiti Networks |
| Place of Business | New York, NY 10017 |
| Model | 48660 |
| Part Number | 48660 |
| OS | airOS |
| Compatible Devices | Smartphone |
| Special features | Long Range |
| Mounting Hardware | 1 x Gigabit PoE (24V, 0.5A) with mounting bracket, Mounting hardware, 1 x Antenna feed, 1 x Center reflector panel, 2 x Side reflector panels, 1 x Mounting bracket, 1 x Rear housing, 2 x Pivot panels, 1 x Power cord |
| Number of Items | 1 |
| Batteries included | No |
| Batteries Required | No |
| Data transfer rate | 550 Megabits Per Second |
| Wireless Standard | Bluetooth |
| Frequency | 5 GHz |
| Connector Type | Bluetooth, Wi-Fi, Ethernet |
| Radio bands supported | Single Band |
| Does it contain liquid? | No |
| Includes rechargable battery | No |
| Item model number | 48660 |
| Product Dimensions | 53 x 75 x 35 cm; 3.2 kg |
| ASIN | B0C3N94DS7 |
| Date First Available | April 26 2023 |
| Best Sellers Rank | #359,190 in Electronics (See Top 100 in Electronics) #760 in Network Access Points |
