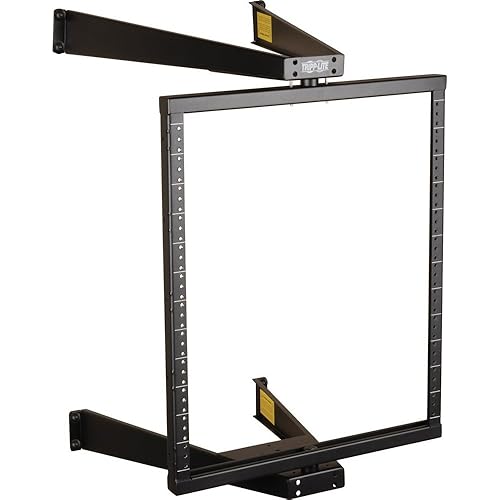

Tripp Lite SRW012US 12 U Wall Mount Pivoting Open Frame Rack Cabinet Hinged (Black)

AMAZON.CA PRODUCT DESCRIPTION

null

FROM THE MANUFACTURER

Are you running out of IT floor space? Do you need to accommodate rackmount equipment at a remote location or branch office? Tripp Lite has the solution. Our SRWO12US Wall Mount Open-Frame Rack is the perfect 2-post open-frame rack solution for applications in secure IT environments where floor space is limited where space is limited. With its sturdy wall-mount bracket and heavy-duty steel frame, the SRWO12US can accommodate up to 150 lbs. of equipment in 12U of rack space—off the floor! Wall-mount brackets with adjustable pivots provide easy access to equipment and cabling. The SRWO12US assembles and installs quickly, and comes with a 5-year warranty.

KEY FEATURES

TRIPP LITE'S SRWO12US RACK ENCLOSURE OFFERS:

* Pivoting 2-post wall mount open-frame rack

* Optimized to save space in secure environments

* 12U of rack space; 150-lb. load capacity

* Adjustable pivot provides easy equipment installation and access

* 5-year warranty

Supports up to 150 lbs of rack equipment

Click here for a larger imageVERSATILE, SPACE-SAVING RACKMOUNT SOLUTION

The SRWO12US features sturdy wall-mount brackets and a heavy-duty steel frame that allows the enclosure to be wall-mounted—an ideal rackmount solution for any venue where floor space is limited. Adjustable pivots enable the frame to swing out from the wall for easy access to equipment and cabling. The SRWO12US can accommodate up to 150 lb. of rack equipment to a maximum mounting depth of 18 inches.

SIMPLE EQUIPMENT INSTALLATION AND ACCESS

The adjustable pivots support three different frame depths and enables the frame to be safely locked the in the closed position or in the open (90° left/right) position. The SRWO12US is designed with a tight swing-out arc to minimize cable slack. These smart design features facilitate quick installation of equipment and provide convenient service access to equipment and cabling.

OPTIMIZED FOR SECURE ENVIRONMENTS

The SRWO12US is an ideal solution for secure IT environments and other applications not requiring a lockable enclosure. It conserves valuable floor space, helps IT managers to better organize their equipment array, and simplifies access for equipment installation and servicing.

TECHNICAL SPECIFICATIONS

Click here for a larger image Model: SRWO12US Rack spaces: 12 Load capacity: 150 lbs. Maximum rack depth: 18 in. Height: 30.45 in. Width: 19.76 in. Depth: 20.35 in. Weight: 15 lbs. Material of construction: Steel Warranty: 5 years WHAT'S INCLUDED

* 1 x Mounting Template

* 2 x Wall-Mount A Frames

* 1 x Equipment Mounting Frame

* 2 x Pivot Bearings

* 2 x M10 40mm Hex Bolts

* 4 x Washers

* 2 x M10 Locknuts

* 2 x Lock Pins

* 24 x #12-24 Equipment Mounting Screws
