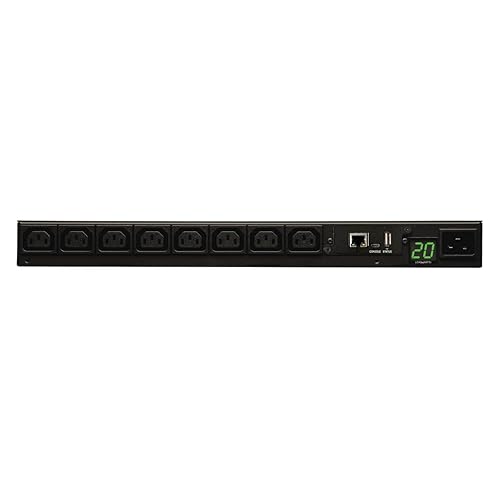

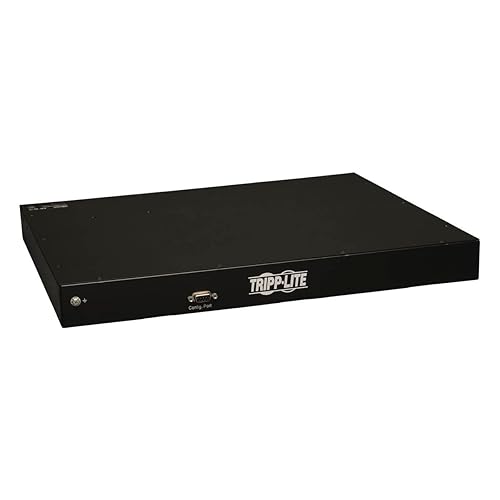

Tripp Lite PDUMNH20HV Monitored PDU, 200-240V, 20A, Single-phase, 1U RM, (8) C13 Outlets, C20 Input, L6-20P Adapter (Black) 240 Volts

AMAZON.CA PRODUCT DESCRIPTION

null

FROM THE MANUFACTURER

Tripp Lite's PDUMNH20HV Monitored Power Distribution Unit is the ideal choice for distributing and monitoring high-voltage 208/240V or 230V power in high-density IT environments worldwide. Featuring a built-in SNMPWEBCARD, the PDUMNH20HV provides full remote power monitoring via a secure network or web browser interface. Used with an optional environmental sensor module (Tripp Lite model ENVIROSENSE), the PDUMNH20HV can also provide temperature/humidity and dry contact interfaces monitoring. Its switchless, circuit breaker-free format prevents power interruptions due to tripped breakers. These capabilities provide IT personnel with enhanced oversight of facility power and environmental conditions. The PDUMNH20HV is configurable for 1U rackmount installation with included hardware.

KEY FEATURES

Advanced Network Monitoring Capabilities

Click here for a larger image

Network Interface, Outlets, Digital Current Meter and Grounding Lug

Click here for a larger image

ADVANCED NETWORK MONITORING CAPABILITIES

The PDUMNH20HV gives IT personnel enhanced oversight of network power conditions. It remotely monitors site power conditions and PDU load levels, and supports notification and logging of all major power events and user-specified alarm thresholds via email or SNMP traps. Real-time clock backup maintains the time of day and date even if the PDU is shut down and unpowered. Used with Tripp Lite's optional ENVIROSENSE sensor, the PDUMNH20HV can also remotely monitor temperature/humidity conditions plus up to four Tripp Lite SRSWITCH magnetic door switches or dry contact interfaces for alarm, security and telecom devices. These capabilities simplify and streamline the task of network power management.

BUILT-IN NETWORK INTERFACE WITH BROAD COMPATIBILITY

The PDUMNH20HV features a built-in SNMPWEBCARD that enables full remote power monitoring via a secure network or web browser interface. The PDUMNH20HV provides 10/100 Mbps auto-sensing for optimal communication compatibility with a 10/100 Base-T network. Protocols supported include HTTP, HTTPS, PowerAlert Network Management System, SMTP, SNMPv1, SNMPv2, Telnet, FTP, DHCP, BOOTP and NTP. DHCP/Manual configuration support provides the ability to have network settings automatically assigned to the card, or manually assigned via permanent IP addresses.

SEQUENTIALLY ACTIVATED OUTLETS

To prevent inrush-related equipment interaction at startup, the PDUMNH20HV's eight C13 outlets are factory-programmed for sequential activation at 250-millisecond intervals when the PDUMNH20HV is energized.

DIGITAL CURRENT METER

The PDUMNH20HV is equipped with a digital LED meter that enables IT personnel to monitor the total load on the PDU in real time. This meter helps to assure that the PDU is used at maximum capacity with no danger of overload.

HIGH-CURRENT INPUT AND WORLDWIDE COMPATIBILITY

The PDUMNH20HV features 208/240V and 230V input and output power capacity, making it ideal for a wide range of IT and industrial applications worldwide. For international (230V) applications, a detachable input cord with C20 plug is provided. The PDUMNH20HV's C20 inlet will also accept any input cord with a C19 connector and a country-specific plug. For high-current 208/240V applications, the included L6-20P plug adapter converts a single high-amperage outlet into multiple low-amperage outlets to power multiple devices.

OPTIMIZED FOR DEMANDING APPLICATIONS

The PDUMNH20HV is designed for reliable distribution of AC power to supported equipment in IT, industrial and similar applications. It features a rugged all-metal case, high-quality outlets, a locking plug and a switchless, circuit breaker-free design with included cord retention brackets to prevent accidental shutoff.

VERSATILE INSTALLATION OPTIONS

The PDUMNH20HV is easy to integrate with a wide range of data center and network applications. It is suitable for 1U installation in standard 19-inch rack enclosures as well as wall-mount, workbench, under-counter and similar installations.

TECHNICAL SPECIFICATIONS

TRIPP LITE PDUMNH20HV MONITORED PDU

Click here for a larger image

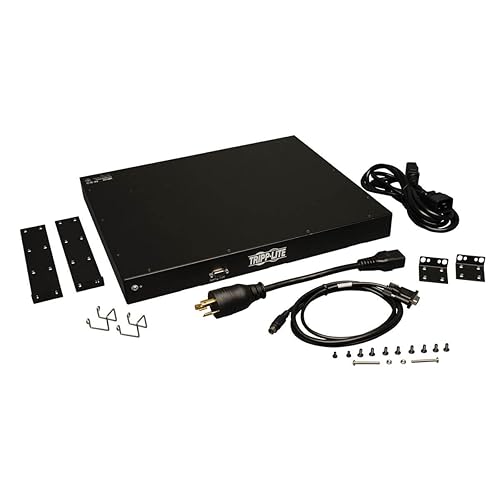

WHAT'S IN THE BOX

* PDUMNH20HV Monitored PDU

* Mounting Hardware

* Cord Retention Brackets

* Detachable C19 to C20 Power Cord

* C19 to L6-20P Plug Adapter

* SNMPWEBCARD Configuration Cable
