Tripp Lite PDU40TDUAL PDU Basic Dual Circuit 120V 20A 5-15/20R 40 Outlet L5-20P 0URM

AMAZON.CA PRODUCT DESCRIPTION

null

FROM THE MANUFACTURER

Tripp Lite's PDU40TDUAL Dual Circuit Power Distribution Unit gives you the performance and flexibility of two independent, high-current power circuits—without the extra expense, space requirements and management demands of two separate PDUs. It provides forty outlets arranged in two separately powered and breakered twenty-outlet banks, an ideal solution for powering servers and networking equipment with dual redundant power supplies. Included mounting hardware supports vertical 0U installation in most rack enclosures as well as wall-mount, workbench, under-counter and similar installations. The PDU40TDUAL comes with a lifetime warranty.

KEY FEATURES

Reliable IT Power Distribution

Click here for a larger image

OPTIMIZED FOR DEMANDING APPLICATIONS

The PDU40TDUAL is designed for reliable distribution of AC power to supported equipment in high-density IT environments. It features a rugged all-metal case, high-quality outlets and plugs, a switchless design to prevent accidental shutoff and dual 20A circuit breakers. The circuit breakers are sleeved to protect against accidental shutoff.

RELIABLE IT POWER DISTRIBUTION

Unfiltered electrical pass-through makes the PDU40TDUAL ideal for distributing alternate waveform utility, UPS or generator power in rack enclosures, network closets, and more. It provides forty 5-15/20R outlets in two independent twenty-outlet 20A load banks, and dual 10-ft. power cords with locking L5-20P plugs. A pair of included plug adapters enables the PDU to be connected to standard 5-20P outlets.

Dual Circuit Design

Click here for a larger image

DUAL CIRCUIT DESIGN

The PDU40TDUAL features two independent 20A circuits, each with its own cord/plug, digital meter, 20A circuit breaker and twenty-outlet load bank. This makes the PDU40TDUAL ideal for powering servers and networking equipment with dual redundant power supplies, or for any application that requires high capacity in a compact form factor.

COLOR-CODED CIRCUITS

The PDU40TDUAL features color-coded plugs, power cords, outlets and circuit breakers for each independent 20A circuit. This simplifies power cord management in high-density multi-server configurations.

VERSATILE INSTALLATION OPTIONS

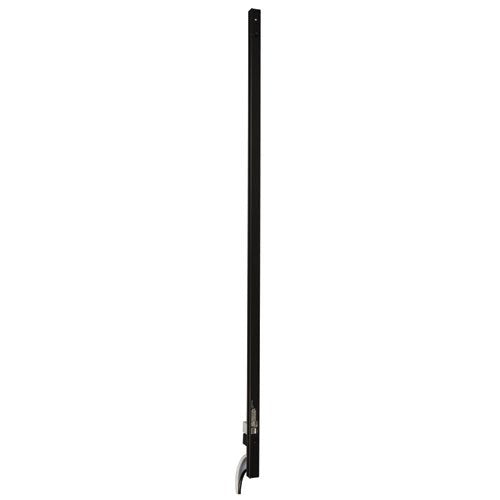

The PDU40TDUAL is easy to integrate with a wide range of data center and network applications. Included mounting hardware enables the PDU to be installed in 0U vertical rackmount configurations, wall-mount, workbench, under-counter and similar applications.

PEACE OF MIND

The PDU40TDUAL comes with a lifetime warranty.

TECHNICAL SPECIFICATIONS

TRIPP LITE PDU40TDUAL BASIC POWER DISTRIBUTION UNIT

Click here for a larger image

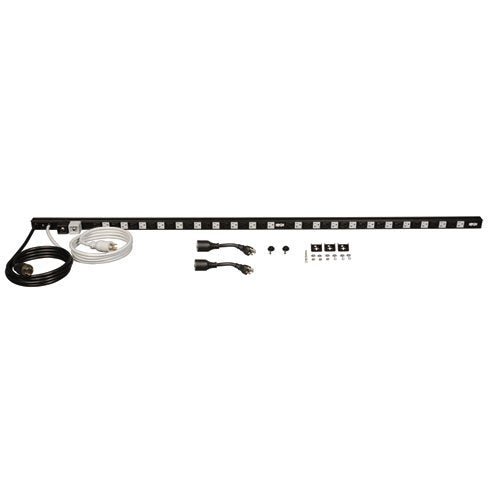

WHAT'S IN THE BOX

* PDU40TDUAL Basic PDU

* Mounting Hardware

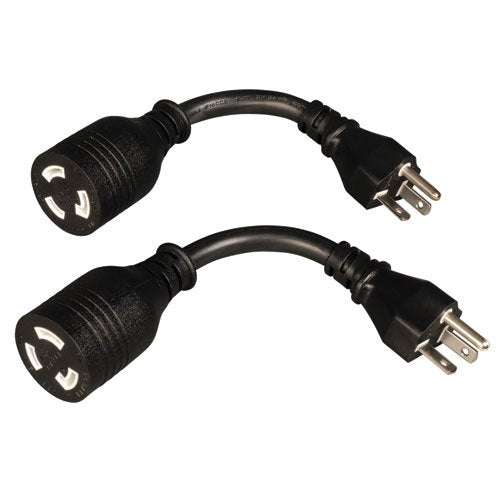

* 2 x L5-20R to 5-20P Plug Adapters
