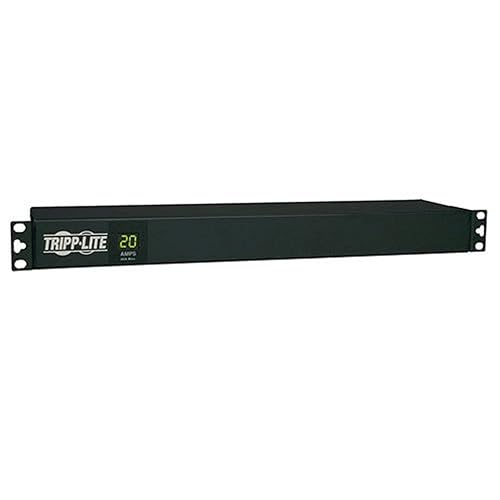

Tripp LITE PDU Metered 120V 20A 5-15/20R 12 Outlet L5-20P 1URM 6ft Cord 120 Volts (Standard)

AMAZON.CA PRODUCT DESCRIPTION

Tripp Lite Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital meter. Enables visual current monitoring of PDU output current to prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.

Key Features * 20A single phase 120V Metered Power Distribution Unit / PDU (Agency de-rated to 16A continuous)

* Built-in 2 digit visual meter continuously reports PDU load level in amps

* Attached NEMA L5-20P 20A 120V input plug with 6 ft. / 1.8m line cord

* Includes 5-20P 20A 120V plug adapter

* 1U horizontal rackmount format installs in one rack space

* 12 NEMA 5-15/20R outlets

* Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats

* Mounting ears are reversible for front or rear facing rackmount installation

* Optional PDUSIDEBRKT enables 0U vertical rackmount in compatible racks

* Back panel grounding lug

* 2-year limited warranty

Typical Applications * Multi-outlet power distribution unit with digital current monitoring is the ideal means of powering multiple loads in 19 inch rackmount, wall-mount, and under-counter applications such as internetworking, PC systems, telecommunications, audio visual, security, sound reinforcement, and more. Ideal distribution of alternate and sinewave UPS and generator power or commercially derived AC power to connected equipment.

Package Includes * PDUMH20 Metered rackmount PDU

* L5-20R to 5-20P plug adapter

* Owner's manual with warranty information

FROM THE MANUFACTURER

Tripp lite metered PDU/Power distribution units offer real-time local reporting of load level in amps via built-in digital meter. Enables visual current monitoring of PDU output current to prevent circuit overloads as additional equipment is added. Offers reliable rack mount multi-outlet power distribution from any protected ups, generator or mains input power source. High quality design includes rugged all-metal housing and secure rack mount installation with included mounting accessories. Key features 20a single phase 120v metered power distribution Unit/PDU (agency de-rated to 16a continuous) built-in 2 digit visual meter continuously reports PDU load level in amps attached NEMA l5-20p 20a 120v input plug with 6-feet /1.8m Line cord includes 5-20p 20a 120v plug adapter 1u horizontal rack mount format installs in one rack space 12 NEMA 5-15/20r outlets mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats mounting ears are reversible for front or rear facing rack mount installation optional PDUSIDEBRKT enables 0u vertical rack mount in compatible racks back panel grounding lug 2-year limited warranty typical applications multi-outlet power distribution unit with digital current monitoring is the ideal means of powering multiple loads in 19-inch rack mount, wall-mount, and under-counter applications such as internetworking, pc systems, telecommunications, audio visual, security, sound reinforcement, and more. Ideal distribution of alternate and sinewave ups and generator power or commercially derived ac power to connected equipment. Package includes pdumh20 metered rack mount PDU l5-20r to 5-20p plug adapter owner's manual with warranty information.

PDUMH20-6
