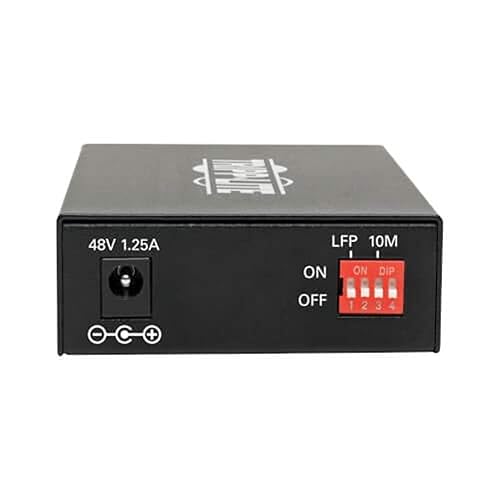

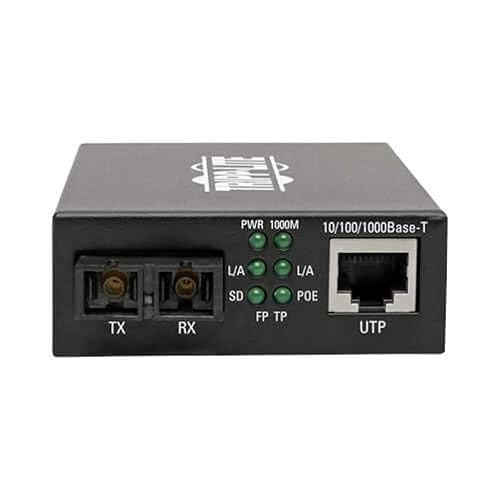

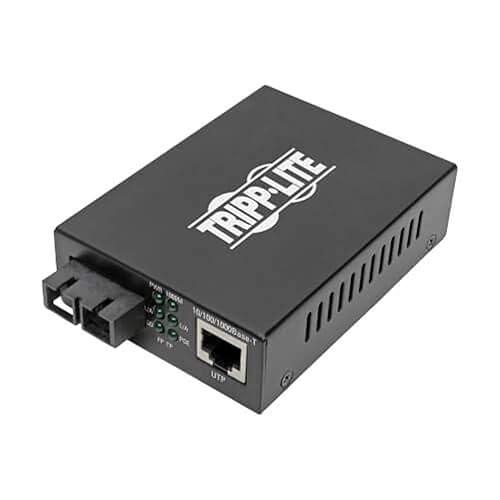

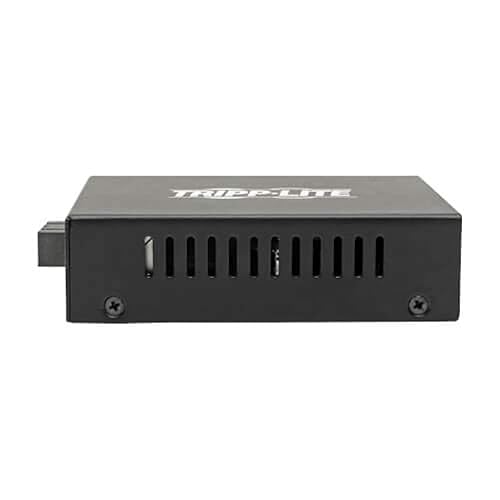

Tripp Lite Network Copper RJ45 Ethernet to Fiber SC Duplex Multimode Cable Extender Converter, 850nm Wavelength, Power Over Ethernet, Gigabit, Extend 1800 Ft / 550 M, 2-Year Warranty (N785-P01-SC-MM1) Power Over Ethernet+ SC / Multimode 850nm

Extends Power and Data to a PoE+ Device up to 550 Meters via SC Multimode Fiber Cable This economical unit converts a multimode fiber optical signal to a copper Ethernet signal that extends both power (48 VDC) and 10/100/1000 Mbps Gigabit Ethernet to a PoE+ (Power over Ethernet) device. Because Cat5e/6 cables are limited to only 100 meters, it is more effective to couple the N785-P01-SC-MM1 with multimode fiber cable to reach greater distances. This could include providing both data and power to PoE and PoE+ devices, such as security cameras, VoIP telephones, point-of-sale kiosks and access control devices. Supports Power over Ethernet to Save You Money and Give You More Installation Choices PoE saves you the expense and effort of purchasing, connecting and installing individual power supplies for each device. It also helps you install PoE devices in areas far away from AC outlets, such as poles or ceilings. Supports Auto-Sensing of Network Speed and Other Advanced Functions Monitoring and controlling your network nodes is easy with the N785-P01-SC-MM1’s advanced features, such as automatic network speed sensing, full/half-duplex auto-detection and automatic MDI/MDIZ configuration. Six LEDs indicate the converter’s power, PoE, Ethernet network and fiber link statuses at a glance. Link fault pass through (LFP) monitors both the SC and RJ45 ports to ensure link status remains active. Works in Tandem with Tripp Lite’s N785-001-SC-MM Media Converter This media converter connects to the N785-001-SC-MM using multimode fiber optic cabling with SC ends (such as Tripp Lite’s N520-Series, sold separately) to extend an Ethernet network connection up to 550 meters. Use Cat5e/6 cabling (such as Tripp Lite’s N001- or N201-Series cables) to deliver data and power to a 10/100/1000 Mbps PoE device up to 100 meters (328 feet) from the N785-P01-SC-MM1. Completely Plug-and-Play with No Additional Software Required for Connection The compact metal converter is easy to install and set up with no software or drivers required. The included power supply connects to a convenient AC outlet with no computer or other signal source needed.

N785-P01-SC-MM1

Standing screen display size	‎2 Inches
Brand	‎Tripp Lite
Item model number	‎N785-P01-SC-MM1
Product Dimensions	‎7.11 x 9.4 x 2.54 cm; 680.39 g
Item dimensions L x W x H	‎7.1 x 9.4 x 2.5 Centimetres
Colour	‎850nm
ASIN	B07RK31KMJ
Customer Reviews	4.94.9 out of 5 stars 18 ratings4.9 out of 5 stars
Best Sellers Rank	#144,515 in Electronics (See Top 100 in Electronics) #1,539 in Fiber Optic Audio Cables #2,980 in Audio & Video Adapters
Date First Available	May 9 2019
Manufacturer	TRIPP LITE
Place of Business	CHICAGO, IL, 60609 US
Brand	Tripp Lite
Connector type	RJ45
Compatible devices	Camera, Monitor
Colour	850nm
Data transfer rate	1 Gigabits Per Second
