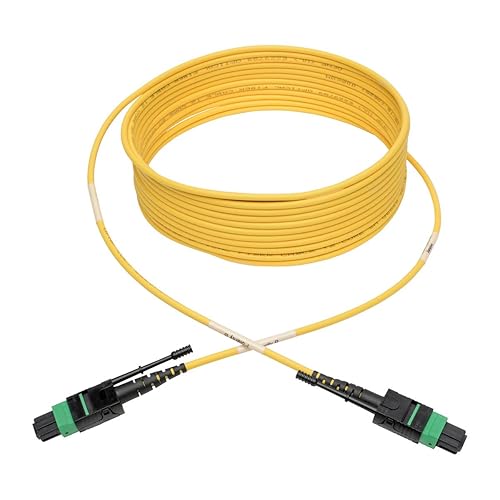

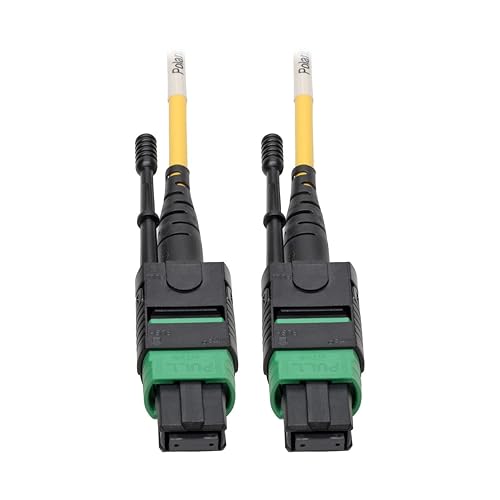

Tripp Lite N390-07M-12-AP MTP/MPO (APC) Singlemode SMF Fiber Patch Cable 12 Fiber QSFP Plus 40/100Gbe, QSFP Plus 40GBASE-PLR4, Plenum, Push/Pull Tab 7M 23', Yellow

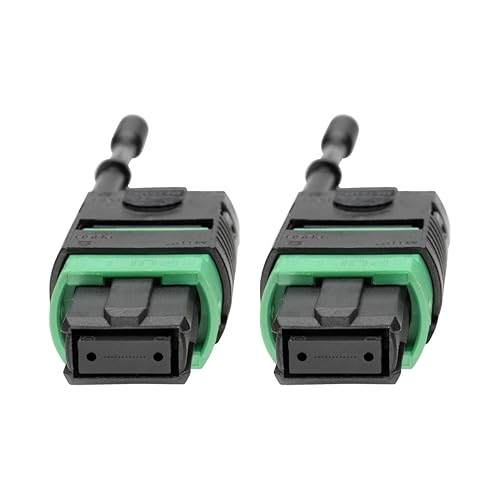

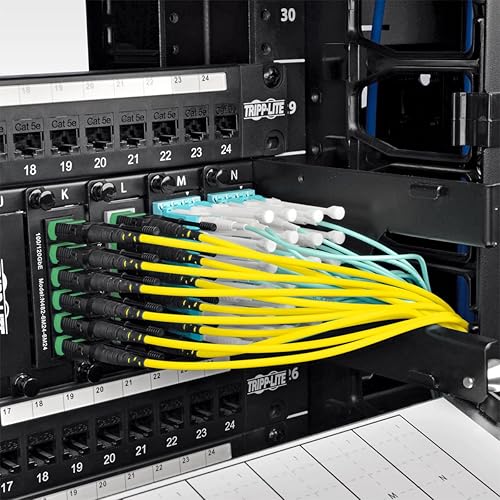

The N390-07M-12-AP MTP/MPO Single mode Patch Cable (F/F) supports 40/100 Gb Ethernet speeds and is designed for QSFP Plus applications in enterprise installations in wiring closets, telecom rooms and data centers. With two female MTP/MPO connectors, this single mode fiber optic cable with plenum-rated jacket is recommended for connecting switches, hubs, routers and other high-speed network components in ceilings, walls and ducts. The 12-fiber MTP/MPO connectors are about the same size as SC connectors, but are 12 times denser, freeing up rack space for other cables. The APC connectors are angled to prevent infrared light entering the fiber from bouncing back into the laser. The N390-07M-12-AP is tested for low insertion loss and back reflection on every connector and attenuation loss that meets or exceeds current standards. The N390-07M-12-AP is colored yellow for instant identification in a crowded switch or patch panel as a single mode cable. Push/pull tab connectors are easily accessible in high-density data center environments and make the plug-and-play cable easy to install and remove with one hand.

N390-07M-12-AP

Brand	‎Tripp Lite
Series	‎N390-07M-12-AP
Item model number	‎N390-07M-12-AP
Product Dimensions	‎1.27 x 17.78 x 22.86 cm; 45.36 g
Item dimensions L x W x H	‎13 x 178 x 229 millimeters
Colour	‎Yellow
ASIN	B077BQ1LNW
Date First Available	Dec 2 2017
Manufacturer	Tripp Lite
Brand	Tripp Lite
Connector type	RJ45
Cable type	Fibre Optic
Compatible devices	Router
Special feature	High Speed
