Tripp Lite Industrial 5-Port Lite Managed PoE+ Gigabit Ethernet Switch, 2 SFP GbE Slots, 10/100/1000 Mbps RJ45 Ports, 30W Power over Ethernet+, 14° to 140°F Temp Range, 3-Year Warranty (NGI-S05C2POE4) Lite Managed PoE+ 5-Port 2 SFP Slots

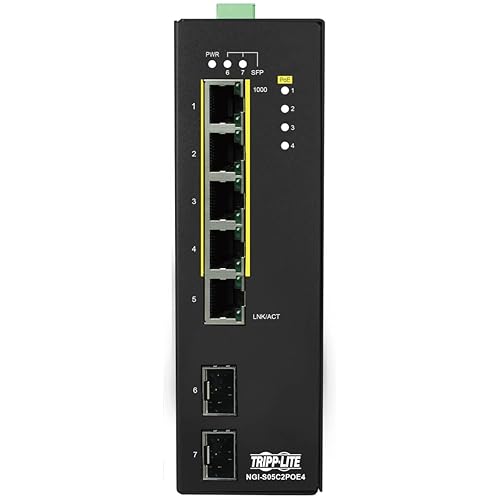

5-PORT SMART GIGABIT ETHERNET SWITCH CONNECTS YOUR NETWORK DEVICES TO A LAN: This Lite Managed switch transmits both power and data over a Gigabit Ethernet network. Five auto-negotiating 10/100/1000 Mbps ports send data via Cat5e/6/6a cable only to the devices designated to receive it, which improves the efficiency and potential throughput of the network. The NGI-S05C2POE4 also features two GbE SFP slots for uplinking data to other switches via optical fiber or copper. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity. POE+ PORTS DELIVER POWER TO DEVICES WITHOUT ACCESS TO AC OUTLETS: This smart switch features four PoE ports capable of powering compatible PoE appliances and devices, such as VoIP phones and IP surveillance cameras, without the expense and effort of running separate power lines or installing the devices near an AC outlet. The NGI-S05C2POE4 provides PoE+ compatibility up to 30W per port and a PoE budget of 120W with 24VDC input or 240W with 48VDC input to satisfy your demand for high-power network devices. PROTECTIVE METAL HOUSING BUILT TO LAST IN HARSH ENVIRONMENTS: The hardened NGI-S05C2POE4 adds 10/100/1000 Mbps Gigabit Ethernet capacity to industrial automation, security, government, military, oil and gas, mining and outdoor applications that demand high bandwidth convergence, as well as other environments with space constraints and wide temperature ranges. The IP30 industrial-grade aluminum case withstands vibration, shock and free fall. It can also operate in extreme temperatures ranging from -10 to 60 degrees Celsius (-14 to 140 degrees Fahrenheit). MANAGES AND MONITORS DEVICES VIA INNOVATIVE LAMUNGAN MANAGEMENT PLATFORM: The Lite Managed switch's user-friendly cloud-based Lamungan platform helps you manage your network via web interface or mobile app. Three different features help you monitor connected devices, real-time traffic and link information. The Wizard is a set-up assistant that guides you step-by-step through initial management. The Topology Map with visual connectivity diagram displays network infrastructure and highlights link status. The Dashboard provides important performance and traffic-related information. A tri-color scheme - red (critical), yellow (alert), green (normal) - keeps you up to date on any network irregularities. INTELLIGENT CONNECTION TECHNOLOGY ENSURES PLUG-AND-PLAY OPERABILITY: The NGI-S05C2POE4 supports MAC address auto-learning and auto-aging for efficient routing, as well as automatic MDI/MDI-X crossover detection for plug-and-play functionality. It also supports QoS, IGMP snooping and other device management features that fulfill the needs of high-performance managed industrial networks. IEEE 802.3x flow control allows smooth transmission of large files. WORKS WITH THE MOST POPULAR WEB BROWSERS: The NGI-S05C2POE4 is browser-based and works independently from the connected computer's operating system. Because switch compatibility is based on common hardware standards, rather than system software dependencies, the NGI-S05C2POE4 accommodates most platforms. Preferred web browsers include Google Chrome (on both Windows and macOS) and Microsoft Edge (Windows only). PRE-INSTALLED DIN RAIL CLIP ALLOWS FOR CONVENIENT INSTALLATION: The switch may be DIN mounted using the pre-installed rail clip, which mounts firmly to any standard 35 mm DIN rail. Providing seamless operation in the event of power dips or failures, the switch features redundant power inputs to help prevent unnecessary downtime. When used with two power sources, the switch also supports alarm relay contacts that you can wire to your existing alarm circuit to notify you instantly when a power disruption occurs. TAA-COMPLIANT FOR GSA SCHEDULE PURCHASES: The NGI-S05C2POE4 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

NGI-S05C2POE4

Item Weight	2.2 Pounds
Voltage	24 Volts
Case Material	Aluminum
Upper Temperature Rating	6E+1 Degrees Celsius
Interface Type	PoE, RJ45
Data Transfer Rate	1.11E+3 Megabits Per Second
Current Rating	6 Amps
Manufacturer	TRIPP LITE
UPC	037332267009
Product Dimensions	7.2 x 9.17 x 2.44 inches
Item Weight	2.15 pounds
ASIN	B09RKV3ZKH
Item model number	NGI-S05C2POE4
Batteries	Product Specific batteries required.
Customer Reviews	5.05.0 out of 5 stars 3 ratings5.0 out of 5 stars
Best Sellers Rank	#430 in Computer Networking Switches
Date First Available	January 31, 2022
Brand	Tripp Lite
Number of Ports	5

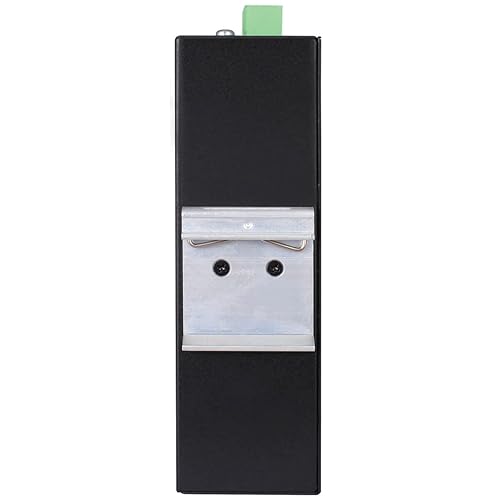

Included Components	● NGI-S05C2POE4 5-Port Lite Managed Industrial Gigabit Ethernet Switch ● DIN rail-mounting clip (pre-installed) See more
Color	Black
Compatible Devices	Desktop
