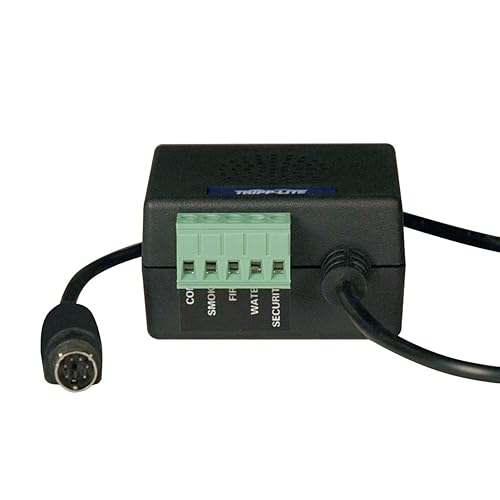

Tripp Lite ENVIROSENSE Environmental Sensor for Use with SNMP/Web Cards

Don't just protect your IT equipment against power problems; ensure ideal environmental conditions with the ENVIROSENSE Environmental Sensor from Tripp Lite. The ENVIROSENSE relays ambient temperature and humidity readings to a Tripp Lite SNMP accessory card (Model: SNMPWEBCARD or SNMPWEBSOLO) installed in a compatible UPS or PDU. The sensor can also send and receive contact closure signals, communicating with up to four compatible devices (such as smoke detectors, fire alarms and security systems). Its 12-ft. cord broadens potential mounting options.

KEY FEATURES

ENVIROSENSE ENVIRONMENTAL SENSOR OFFERS:

* Environmental Sensor for use with Tripp Lite SNMP/Web Cards

* Connects to Tripp Lite Internal or External SNMP/Web Cards

* Allows remote temperature/humidity monitoring in network environments

* Provides monitoring and control of alarm, security and telecom devices through a dry-contact interface

* 2-year product warranty

Remotely Monitor Your IT Environment

Click here for a larger imageREMOTELY MONITOR YOUR IT ENVIRONMENT

Downtime isn't just caused by power problems—other factors in the IT environment can cause equipment degradation and failure. The ENVIROSENSE accessory allows IT managers the ability to monitor temperature and humidity within their IT architecture to ensure that equipment isn't affected by high-moisture conditions and excessive heat.

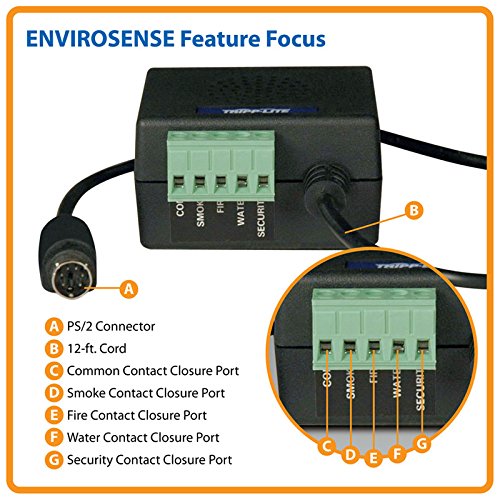

CONTACT CLOSURE PORTS

Five contact closure ports allow connection of alarm, security and telecom devices, meaning you can monitor every aspect of your IT environment—from anywhere!

VERSATILE INSTALLATION

The ENVIROSENSE sensor's extra-long cord enables it to be mounted up to 12 feet from the SNMPWEBCARD, meaning it can be located in specific “trouble spots” or even provide a farther reach to make connections with various alarm, security and telecom devices.

PEACE OF MIND

The ENVIROSENSE comes with a two-year warranty.

TECHNICAL SPECIFICATIONS

TRIPP LITE ENVIROSENSE ENVIRONMENTAL SENSOR

Click here for a larger image Model: ENVIROSENSE Compatibility: Expansion slot-equipped Tripp Lite SmartPro/SmartOnline UPS Systems & PDUs Required Hardware: SNMPWEBCARD Required Software: Tripp Lite PowerAlert 12 Dimensions (HWD): 1.5 x 2.5 x 2.5 in. Unit Weight: 0.4 lb Cable Length: 12 feet (3.66 meters) Temperature Measurement Range: 32° to 149° F (0° to 65° C) Temperature Measurement Accuracy: ± 8% from 59° to 95° F (15° to 35° C) Humidity Measurement Range: 10% to 90% Humidity Measurement Accuracy: ± 2% Power Dissipation: <400 m Warranty: 2-year Agency approvals: RoHS WHAT'S IN THE BOX

* ENVIROSENSE Environmental Sensor

* Owner's Manual
