TRIPP LITE DVI Over Cat5/Cat6 Extender, Video Transmitter and Receiver 1920x1080 at 60Hz(B140-101)

Don't let distance make your application fall flat—extend a DVI video signal up to 100 ft.! This Tripp Lite DVI over Cat5 Passive Extender Kit delivers peak video performance by digital video components, assuring that you enjoy a crystal-clear picture. With the B140-101, you can extend a 1024 x 768 (60Hz) signal up to 100 ft., when using 24 Awg, Solid-Wire UTP cable (Tripp Lite N202-Series), or a 1920 x 1080 (60Hz) signal up to 50 ft. This kit comes with both the local and remote connection units, allowing you to plug in and get started right away. With no additional cables, external power sources or hardware to install, the B140-101 provides total plug-and-play convenience.

KEY FEATURES

B140-101 DVI OVER CAT5 PASSIVE EXTENDER KIT:

* Ideal for digital signage applications needing to extend a DVI video signal over longer distances

* Kit includes local and remote units eliminating need for separate purchases

* Extend a high-quality video signal up to 100 ft. when using 24 Awg, Solid-Wire a Cat5e/6 cabling (Tripp Lite N202-Series)

* Plug-and-play convenience with no need for additional cables or external power sources

* RoHS and TAA-compliant design

The Smart Solution for Digital Signage Applications

Click here for a larger image

Click here for a larger imageTHE SMART SOLUTION FOR DIGITAL SIGNAGE APPLICATIONS

This Tripp Lite DVI over Cat5 Passive Extender Kit extends digital video a hundred feet away from the source, making it the ideal solution for digital signage applications like schools, churches, retail displays, trade show presentations and more. The B140-101 allows the video source to be in a secure, remote location for controlled access while still delivering a signal to TVs, projectors and other devices in another area. This kit includes units for both the source and display side of your application.

GREATER DISTANCE—GREATER FLEXIBILITY

With the B140-101 you can extend a 1024 x 768 (60Hz) signal up to 100 ft., when using 24 Awg, Solid-Wire UTP cable (Tripp Lite N202-Series), or a 1920 x 1080 (60Hz) signal up to 50 ft. The direct plug-in design of the units allows for greater installation flexibility and eliminates the need for extra DVI cables.

CONVENIENT PLUG-AND-PLAY SETUP

With no software, drivers, hardware, additional cables or external power adapters to install, the B140-101's plug-and-play setup gets your application up and running faster. Simply connect the local unit to the video source, the remote unit to the display and connect the units to each other to start watching as the B140-101 provides crystal-clear resolution. There is no equalization or image adjustment necessary!

ENVIRONMENTALLY RESPONSIBLE AND TAA-COMPLIANT

The B140-101 features a green, RoHS-compliant design that limits the use of hazardous materials in its construction. It is also compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

ABOUT TRIPP LITE

Outstanding product reliability and exceptional service have been Tripp Lite trademarks for 90 years. Tripp Lite's innovations include the world's first UPS system designed specifically for personal computers, and the world's most trusted premium surge suppressor—the Isobar®—with more than 18 million in use. Tripp Lite maintains the highest level of ready-to-ship inventory in the industry with more than 2,500 different products, including UPS systems, rack systems and cooling solutions, PDUs, PowerAlert software for enterprise-level system management and control, surge suppressors, KVM switches, cables and connectivity products, inverters, power strips and notebook accessories. Headquartered in Chicago, Illinois, Tripp Lite maintains a global presence with fully staffed offices worldwide.

TECHNICAL SPECIFICATIONS

TRIPP LITE B140-101 DVI OVER CAT5 PASSIVE EXTENDER KIT

Click here for a larger image Type: DVI over Cat5 Passive Extender Kit Connectors: Connector 1: 2 x DVI-D Single Link Male

Connector 2: 2 x RJ45 Housing: Black Plastic Resolution/Range: With 24 Awg, Solid-Wire cable: 1920 x 1080 (60Hz) 50 ft.; 1024 x 768 (60Hz) 100 ft. Certifications: RoHS, TAA Warranty: 1-year WHAT'S IN THE BOX

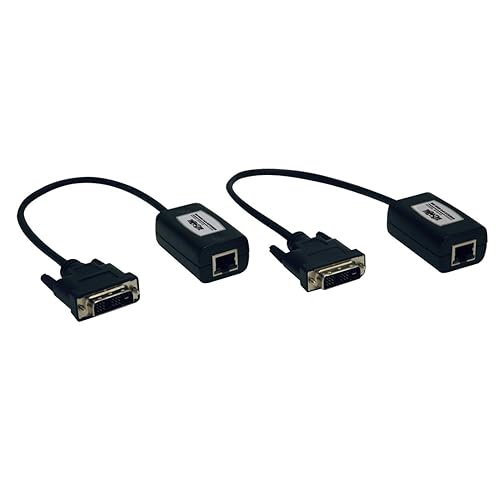

* B140-101 local transmitter unit

* B140-101 remote receiver unit

* Owner's manual
