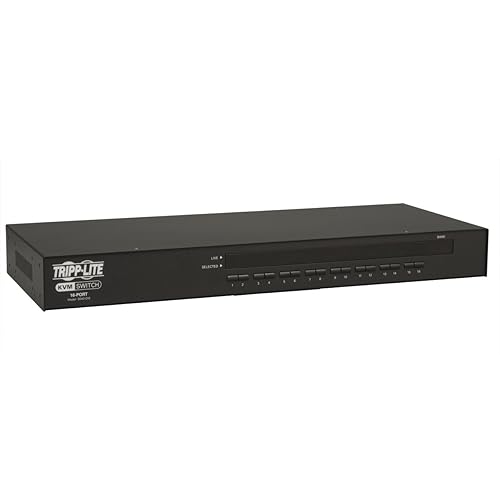

Tripp Lite B042-016 16-Port 1U Rackmount USB PS2 KVM Switch with On-Screen Display 16 Port

AMAZON.CA PRODUCT DESCRIPTION

null

FROM THE MANUFACTURER

Tripp Lite's B042-016 NetController� 16-Port Rackmount KVM Switch is the smart solution for controlling multiple computers and servers from one monitor, keyboard and mouse. Requiring just 1U of rack space, the B042-016 features a rugged housing, premium connectors and superior functionality to ensure trouble-free operation in demanding high-availability environments. The B042-016 can control sixteen servers/computers directly, or up to 256 by daisy-chaining additional KVM switches. It is compatible with both PS/2 and USB computers using Tripp Lite P780-Series combo KVM cable kits (available separately).

KEY FEATURES

B042-016 NETCONTROLLER� 16-PORT VGA RACKMOUNT KVM SWITCH OFFERS:

* Manage an entire network with one keyboard, mouse and monitor from 1U of rack space

* Control up to 248 computers/servers by daisy-chaining multiple KVM switches

* Supports QXGA video resolutions up to 2048 x 1536

* Compatible with PS/2 and USB computers and servers

* Supports all major operating systems

All-in-One Network Management for Critical Systems

Click here for a larger image Simple, Flexible Network Control

Click here for a larger imageALL-IN-ONE NETWORK MANAGEMENT FOR CRITICAL SYSTEMS

The B042-016 offers a comprehensive, cost-effective network management solution that installs in 1U of rack space. No server-resident software is required, so server performance and reliability are never compromised. Upgradable firmware fine-tunes compatibility with emerging standards.

SUPPORTS MULTIPLE PLATFORMS

The B042-016 supports both PS/2 and USB connections (Tripp Lite P780-Series combo KVM cable kits required; sold separately). Because compatibility is based on common hardware standards rather than system software dependencies, almost any platform can be accommodated. Connect multiple versions of multiple platforms in any combination, including Windows�, Mac�, UNIX�, Linux, BSD and DOS.

SIMPLE, FLEXIBLE NETWORK CONTROL

The B042-016 is designed to ease multi-server management in data centers, server rooms and other high-density environments. An advanced on screen display (OSD) with high-resolution QXGA video up to 2048 x 1536 provides a graphical user interface with management tools including custom port labeling, auto-scanning and panel array mode. Users may also select a connected computer using on-console pushbuttons or keyboard hotkey commands. Two LEDs per KVM port indicate (1) when a computer is connected to a KVM port and powered on, and (2) when a computer is selected.

CONTROL MULTIPLE COMPUTERS

The B042-016 is capable of controlling up to 256 servers/computers by daisy-chaining additional B042-Series KVMs. This gives network managers the flexibility to add capacity when it's needed, accommodating growing data center requirements without disrupting existing equipment.

B042-016 Expansion Diagram

Click here for a larger image B042-016 Access Servers Diagram

Click here for a larger imageACCESS SERVERS ANYWHERE WITH OPTIONAL IP REMOTE ACCESS CAPABILITY

The B042-016 accepts an optional IP remote access unit (Tripp Lite model B051-000) that provides secure IP remote access to connected servers/computers without requiring additional rack space. IP remote access enables system administration, BIOS-level troubleshooting, GUI application installations, equipment reboots and more to be accomplished from any location using a standard Web browser or multi-platform client software.

SECURE EVERY CONNECTION

The B042-016 offers two levels of password protection (administrator/user) to prevent unauthorized persons from gaining access to connected servers/computers.

PEACE OF MIND

The B042-016 comes with a 1-year warranty.

ADDITIONAL KVM ACCESSORIES (SOLD SEPARATELY)

To connect computers to the KVM: one Tripp Lite P780-Series combo KVM cable kits per server/computer is required (see below). To daisy-chain from the B042-016: additional B042-016 or B042-008 KVM switches and cable kits; consult the owner's manual for detailed information about daisy-chain configurations. For IP remote access: B051-000 IP Remote Access Unit (see below).

TECHNICAL SPECIFICATIONS

TRIPP LITE B042-016 NETCONTROLLER� 16-PORT RACKMOUNT KVM SWITCH

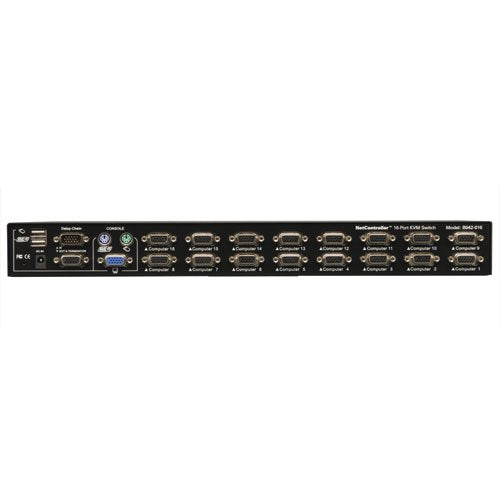

Click here for a larger image Model: B042-016 Users: 1 Maximum video resolution: QXGA 2048 x 1536 KVM ports: 16 x HD15 External console ports: 1 x HD15, 2 x USB, 2 x PS/2 Daisy-chain/firmware upgrade port: 1 x HD15 Maximum CPU control: 248 units (with daisy-chaining) Dimensions (HWD): 1.75 x 19.0 x 6.5 in. (1U) Weight: 4.7 lb. Material of construction: Metal housing OS compatibility: All major operating systems Agency approvals: CE

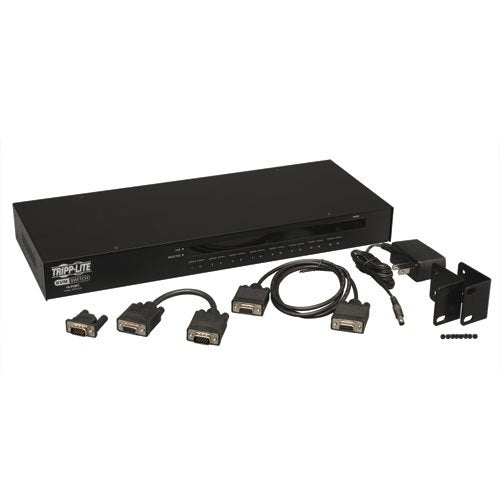

RoHS Warranty: 1 year WHAT'S IN THE BOX

* B042-016 Rackmount KVM Switch

* 1 x HD15 to DB9 Firmware Upgrade Cable

* 1 x 8-in. HD15 Daisy-Chain Cable & Terminator

* 1 x Multi-National AC Power Adapter

* Rackmounting Hardware

* Owner's Manual CD & Quick Start Guide

NETWORK CONTROL SOLUTIONS FROM TRIPP LITE

Tripp Lite UPS offers a wide range of products to provide reliable, cost-effective network control solutions for network data centers and other IT applications.

P780-SERIES USB+PS/2 COMBO KVM CABLE KITS

Connect a USB or PS/2 server/computer to a Tripp Lite KVM Switch. Combines USB and PS/2 keyboard/mouse cables and a monitor cable bonded into a single unit. Double shielding (foil and braid) for maximum EMI/RFI protection; molded connectors with integral strain relief. Available in 6-, 10- and 15-ft. lengths. Lifetime warranty.

P780-006 � P780-010 � P780-015

These cable kits are compatible with Tripp Lite B040- and B042-series KVM switches.

P781-SERIES DAISY-CHAIN CABLES

Enables expansion of the number of servers/computers that can be controlled from a single keyboard, mouse and monitor. Double shielding (foil and braid) for maximum EMI/RFI protection; molded DB15 connectors with integral strain relief and easy-grip textured over-mold. Available in 2-, 6- and 15-ft. lengths. Lifetime warranty.

P781-003 � P781-006 � P781-010 � P781-016

These cables are compatible with Tripp Lite B040- and B042-series KVM switches.

B051-000 IP REMOTE ACCESS UNIT

For use with compatible KVM switches including Tripp Lite's B042-016 Rackmount Console KVM Switch. The B051-000 provides access to networked computers/computers from any location via LAN, WAN, or the Internet. Supports 10Base-T, 100Base-T, TCP/IP, and HTTP through the Java Client. Advanced security technologies provide password protection, advanced encryption technologies, sophisticated user filters and user management, stealth mode and automatic lockout.

B042-SERIES NETCONTROLLER� RACKMOUNT KVM SWITCHES (4- AND 8-PORT)

Controls an entire network in just 1U of rack space. B042-series rackmount KVM switches can directly control up to 16 servers/computers from a single console. Multiple units can be daisy-chained to control up to 256 servers/computers. Can be daisy-chained from Tripp Lite B040-series rackmount console KVM switches. Compatible with PS/2 and USB servers/computers. Simple port switching via on-screen display (OSD) or keyboard hot keys. Includes multi-national AC power adapter, daisy-chain cable and rackmounting hardware. 1-year warranty.

B042-004 � B042-008

SR42UB SMARTRACK� ENCLOSURE

Premium 42U rack enclosure with doors and side panels. The SR42UB features locking, removable, reversible front and rear doors; locking, removable side panels keyed alike with doors; 4 interior vertical posts with unthreaded square-hole openings; preinstalled casters and leveling feet; and 3000-lb. stationary/2250-lb. rolling load capacity. The SR42UB ships fully assembled and comes with a 5-year repair/replacement warranty. A full range of rackmount accessories is also available.

SMART2200RMXL2U SMARTPRO� UPS SYSTEM

Advanced automatic voltage regulation and battery backup protection for mission-critical servers, storage devices and telecom equipment in 2U of rack space. The SMART2200RMXL2U provides 2200VA/1600W power capacity with 8 outlets including 3 outlets that are individually controllable for remote equipment reboots or load shedding. USB and DB9 ports, an SNMP accessory slot and PowerAlert monitoring software provide complete power network monitoring and control. The SMART2200RMXL2U supports connected equipment for 16 minutes during power failures at a half load of 800 watts. Runtime is expandable with optional external battery packs, sold separately. $250,000 Ultimate Lifetime Insurance; 2-year warranty.
