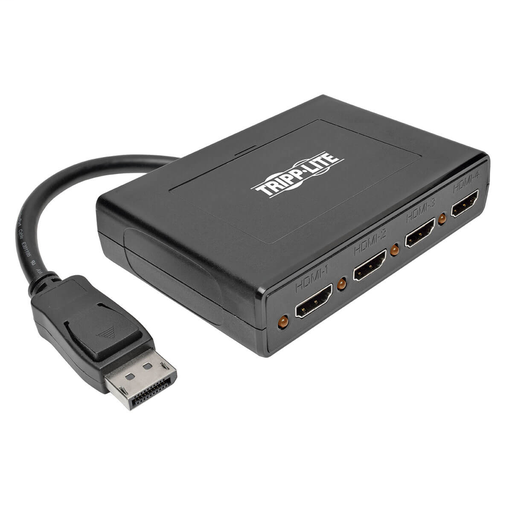

Tripp Lite 4-Port DisplayPort To HDMI Multi Stream Transport Hub MST 4Kx2K
Model Number: B156-004-HD-V2
Tripp Lite 4-Port DisplayPort To HDMI Multi Stream Transport Hub MST 4Kx2K is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Displays Video in 3 Ways and Supports High Definition Video
In mirror mode, you can display the same image on each monitor. In extended desktop mode, you can show your computer’s desktop on the connected monitors with a different window open on each monitor. You can work on multiple documents at the same time, or display notes or reference data on one screen while showing a video on a different screen. Another option is creating a video wall: combine the monitors in your setup so they act as one monitor (requires computer with a DisplayPort 1.2-compatible graphics card). You can arrange the monitors vertically or horizontally.
The B156-004-HD-V2 is compliant with DisplayPort 1.2 and backward compatible with versions 1.1 and 1.1a with the feature set being limited to that of your equipment. It supports HD video resolutions up to 1920 x 1080 per monitor. In video wall mode, it supports expanded resolutions, such as 3840 x 2160 (4K x 2K) in a 2 x 2 monitor configuration or 7680 x 1080 in a vertical 4 x 1 configuration. This MST hub also supports HDCP, EDID, DDC and 48-bit Deep Color (16 bits per channel), as well as DTS-HD, Dolby TrueHD and 7.1-channel surround sound audio.
B156-004-HD-V2
| Harmonized System (HS) code | 8525.50.3035 |
| Output voltage | 5 V |
| Package height | 2.2" (55.9 Mm) |
| Product color | Black |
| Master (outer) case length | 22.5" (571.5 Mm) |
| Certification | Ce, Fcc, Rohs, Reach |
| Package width | 6.2" (157.5 Mm) |
| Input current | 0.5 A |
| Country of Origin | Taiwan |
| Color depth | 48 Bit |
| Cable length | 5" (0.127 M) |
| Supported graphics resolutions | 1920 X 1080 (hd 1080),3840 X 2160 |
| Package depth | 8.4" (213.4 Mm) |
| Video out * | 4x Hdmi |
| Master (outer) case width | 6.9" (175.3 Mm) |
| Supported audio channels | 7.1 |
| Connector(s) | Displayport 1.2 |
| Output current | 2 A |
| Maximum resolution * | 3840 X 2160 Pixels |
| Video ports quantity * | 4 |
| Dimensions (WxDxH) | 4.29 X 3 X 0.945" (109 X 76.2 X 24 Mm) |
| Weight | 4.94 Oz (140 G) |
| Package weight | 14.5 Oz (410 G) |
| Master (outer) case weight | 8.99 Lbs (4.08 Kg) |
| Quantity per master (outer) case | 10 Pc(s) |
| Master (outer) case height | 9.1" (231.1 Mm) |
| Video port type * | Displayport |
| Supported video modes | 1080i,1080p |
