Tripp Lite 3-Port DisplayPort to HDMI Multi Stream Transport Hub MST, DP 1.2, DP to HDMI, UHD 4Kx2K, Black
Model Number: B156-003-HD-V2
Tripp Lite 3-Port DisplayPort to HDMI Multi Stream Transport Hub MST, DP 1.2, DP to HDMI, UHD 4Kx2K, Black is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.

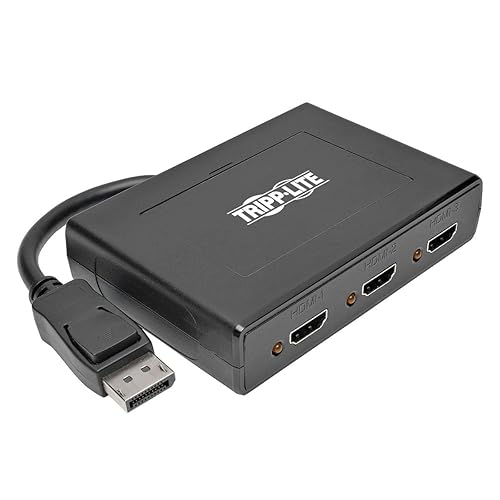

The B156-003-HD-V2 3-Port DisplayPort 1.2 to HDMI MST Hub connects up to three HDMI monitors to the DisplayPort output on your computer. Ideal for digital signage in schools, churches, conference rooms, trade shows, hotels and retail outlets, this hub allows you to display the same image on all three monitors, extend the desktop across them, or combine all three as one large monitor in video wall mode.
The B156-003-HD-V2 is compliant with DisplayPort 1.2 and backward compatible with versions 1.1 and 1.1a with the feature set being limited to that of your equipment. It supports Ultra High Definition (UHD) video resolutions up to 3840 x 2160 (4K x 2K) at 24/30 Hz. In video wall mode, it supports expanded resolutions, such as 5760 x 1080 in a horizontal 1 x 3 monitor configuration or 1920 x 3240 in a vertical 3 x 1 configuration.

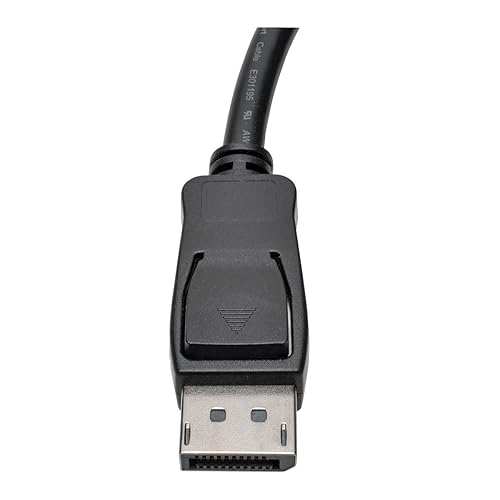

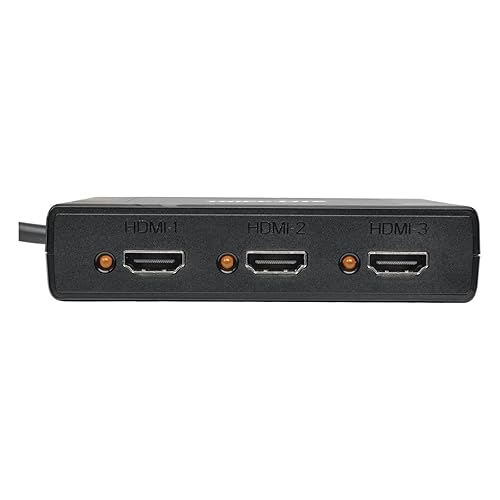

This MST hub also supports HDCP, EDID, DDC and 48-bit Deep Color (16 bits per channel), as well as DTS-HD, Dolby TrueHD and 7.1-channel surround sound audio. It works with all operating systems. Plug-and-play convenience means no software or drivers are needed. A built-in six-inch cable connects directly to a DisplayPort source. LEDs indicate when the monitors are receiving a signal. The B156-003-HD-V2 complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Computer with DisplayPort 1.2-compatible graphics card (e.g. AMD Radeon with AMD Eyefinity) required for video wall mode. Backward compatible with most DisplayPort 1.1a equipment running current graphics drivers with feature set limited to that of your equipment. Compatibility with older graphics cards not guaranteed.
Maximum supported video resolutions and number of monitors depend on your graphics card. Check graphics card specifications to determine its capabilities.
1-Year Limited Warranty
3-year limited warranty
B156-003-HD-V2
Brand | TRIPP LITE |
Manufacturer | Tripp Lite |
Place of Business | CHICAGO, IL, 60609 US |
Model | B156-003-HD-V2 |
Model year | 2016 |
Part Number | B156-003-HD-V2 |
Compatible Devices | Monitor |

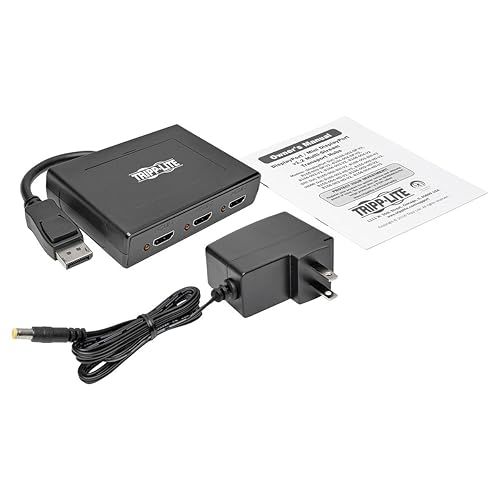

Mounting Hardware | B156-003-HD-V2 3-Port DisplayPort 1.2 to HDMI MST Hub^External power supply w/NEMA 1-15P plug and 5 ft. cord (Input: 100–240V, 50/60 Hz, 0.5A; Output: 5V, 2A)^Owner’s manual |
Number of Items | 1 |
Standing screen display size | 6 Inches |
Voltage | 5 Volts |
Batteries included | No |
Batteries Required | No |
Number of Ports | 3 |
Does it contain liquid? | No |
Item model number | B156-003-HD-V2 |
Product Dimensions | 16.26 x 5.59 x 20.57 cm; 317.51 g |
ASIN | B01HIOY7X6 |
Date First Available | July 21 2016 |
Customer Reviews | 4.0 4.0 out of 5 stars 47 ratings4.0 out of 5 stars |
Best Sellers Rank | #6,112 in HDMI Cables |
Is discontinued by manufacturer | No |
Compatible devices | Monitor |
Connector type | HDMI |
Colour | Black |
Item dimensions L x W x H | 16.3 x 5.6 x 20.6 Centimetres |
Brand | TRIPP LITE |
