Tripp Lite 1.9kW Single-Phase Monitored PDU, 120V Outlets (8 5-15/20R), L5-20P/5-20P Adapter, 12 ft. Cord, 1U Rack-Mount, LX Platform Interface, TAA (PDUMNH20)

AMAZON.CA PRODUCT DESCRIPTION
Tripp Lite PDU Monitored 120V 20A 5-15/20R 8 Outlet L5-20P Horizontal 1URM

FROM THE MANUFACTURER

Tripp Lite's PDUMNH20 Monitored PDU is the ideal choice for distributing and managing power in high-density IT environments. Featuring a built-in SNMPWEBCARD, the PDUMNH20 provides full remote power monitoring via a secure network or web browser interface. Used with an optional environmental sensor module (Tripp Lite model ENVIROSENSE), the PDUMNH20 can also perform temperature/humidity and dry contact interface monitoring. These capabilities provide IT personnel with enhanced oversight of facility power and environmental conditions. With 8 5-15/20R outlets, an L5-20P plug and an adapter to convert the plug to a standard 5-20P, the PDUMNH20 offers efficient, flexible power distribution options. It is configurable for 1U rackmount installation with included hardware.

KEY FEATURES
TRIPP LITE'S PDUMNH20 POWER DISTRIBUTION UNIT OFFERS:
* Real-time remote monitored 20-amp PDU with 8 outlets
* Built-in SNMPWEBCARD for remote power monitoring
* Digital meter for on-site monitoring of total PDU load
* 1U (horizontal) rackmount installation
* 2-year warranty

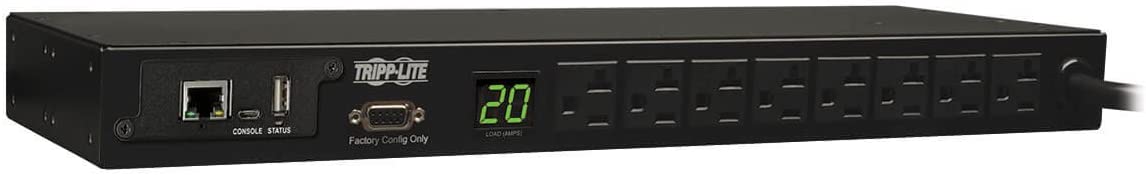

The PDUMNH20 can be configured for 1U rackmount installation with included hardware

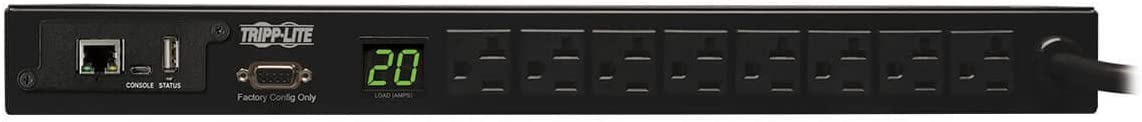

Click here for a larger image The PDUMNH20 Monitored PDU is the ideal choice for distributing and managing power in high-density IT environments
Click here for a larger imageBUILT-IN NETWORK INTERFACE
The PDUMNH20 features a built-in SNMPWEBCARD that enables full remote power monitoring via a secure network or web browser interface. The PDUMNH20 can monitor, report and log input/output power status, PDU load conditions and more. Tiered access privileges allow both an administrator and a guest to log in and monitor the PDU via a web browser.

ADVANCED NETWORK MONITORING CAPABILITIES
The PDUMNH20 gives IT personnel enhanced oversight of network power conditions. It remotely monitors site power conditions and PDU load levels, and provides including immediate event notifications via email or SNMP traps. Real-time clock backup maintains the time of day and date even if the PDU is shut down and unpowered. Used with Tripp Lite's optional ENVIROSENSE sensor, the PDUMNH20 can also remotely monitor temperature/humidity conditions plus up to four dry contact interfaces for alarm, security and telecom devices. These capabilities simplify and streamline the task of network power management.

BROAD COMPATIBILITY
The PDUMNH20 features 10/100 Mbps auto-sensing for optimal communication compatibility with a current 10/100 Base-T network. Protocols supported include HTTP, HTTPS, PowerAlert Network Management System, SMTP, SNMPv1, SNMPv2, Telnet, FTP, DHCP, BOOTP and NTP. DHCP/Manual configuration support provides the ability to have network settings automatically assigned to the card, or manually assigned via permanent IP addresses.

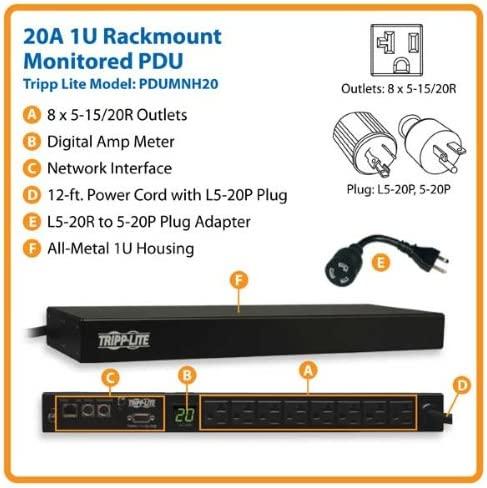

Built-In Network Interface and Digital Current Meter
Click here for a larger imageDIGITAL CURRENT METER
The PDUMNH20 is equipped with a digital LED meter that enables IT personnel to monitor the total load on the PDU in real time. This meter helps to assure that the PDU is used at maximum capacity with no danger of overload.

VERSATILE INSTALLATION OPTIONS
The PDUMNH20 is easy to integrate with a wide range of data center and network applications. It can be configured for 1U rackmount installation with included hardware. The PDUMNH20 is further optimized for reliable service in IT applications with a rugged all-metal case, high-quality outlets and plugs, and a switchless, circuit breaker-free design to prevent accidental shutoff.

TECHNICAL SPECIFICATIONS
TRIPP LITE PDUMNH20 MONITORED PDU
Click here for a larger image Model: PDUMNH20 Voltage compatibility: 120 VAC Frequency compatibility: 50/60 Hz Amps: 20 (agency de-rated to 16A continuous) Outlet quantity/type: 8 x 5-15/20R Cord/plug: 12 ft./L5-20P (attached) Plug adapter: 6-in. L5-20R to 5-20P Communications: SNMPWEBCARD (built-in) LED display: 2-character (indicating amps) Dimensions (HWD): 1.7 x 17.3 x 6.2 in. (1U) Weight: 7.0 lbs. Material of construction: Metal Agency approvals: UL 60950-1 (US/Canada)
FCC Class A
NOM (Mexico)
RoHS Warranty: 2 years WHAT'S IN THE BOX
* PDUMNH20 Monitored PDU
* 6-in. L5-20R to 5-20P Plug Adapter
* Plug Retention Plates
* Rackmounting Hardware
