TRENDnet Inline PoE Tester, TC-NTP1, Tests 4PPoE, PoE+, PoE & Passive PoE Technology, Wattage, Voltage, Amperage, Polarity, LED Display, Battery-Free, Troubleshoot PoE Issues, IEEE 802.3af/at/bt
Model Number: TC-NTP1
TRENDnet Inline PoE Tester, TC-NTP1, Tests 4PPoE, PoE+, PoE & Passive PoE Technology, Wattage, Voltage, Amperage, Polarity, LED Display, Battery-Free, Troubleshoot PoE Issues, IEEE 802.3af/at/bt is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.

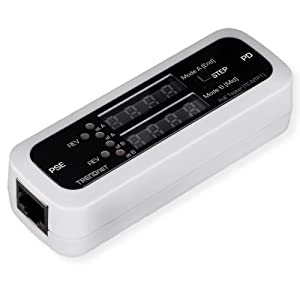

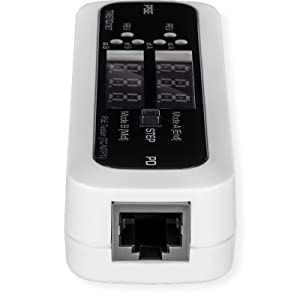

TRENDnet's Inline PoE Tester, model TC-NTP1, is a comprehensive PoE cable tester for network professionals. This compact tool
accurately tests 4PPoE, PoE+, PoE, and passive PoE technologies. The TC-NTP1 PoE cable tester works on active connections,
and is designed to sit inline between the PoE source and PoE device. The PoE cable tester then displays real-time PoE information
such as wattage, voltage, and amperage for that connection.
Testing Modes
The TC-NTP1 has three testing functions: T-mode (for testing ports on your PSE device to determine the PoE switch's or injector's PoE type, and voltage output); N-mode (for non-standard passive PoE devices); and I-mode (for PoE inline testing, displaying voltage, amperage, and wattage of the connected PD).
Step Button
The convenient step button on the PoE cable tester allows users to cycle through voltage, amperage, and wattage readouts. It also allows users to lock the display to a specific readout (e.g. wattage) for real-time monitoring.
Compatibility
The PoE cable tester is compatible with IEEE 802.3af/at/bt PoE devices up to 100W, and non-standard passive PoE devices from 11V – 60V.
PACKAGE CONTENTS
TC-NTP1
Quick Installation Guide
