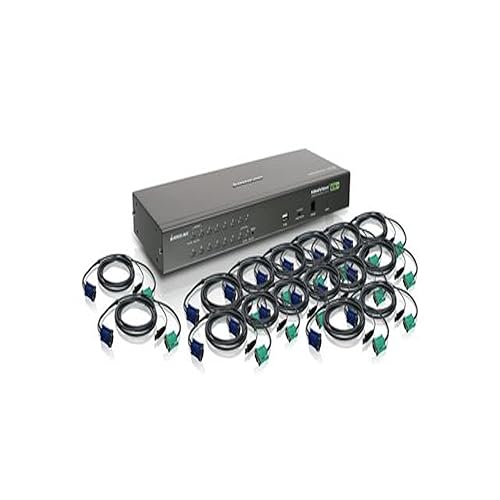

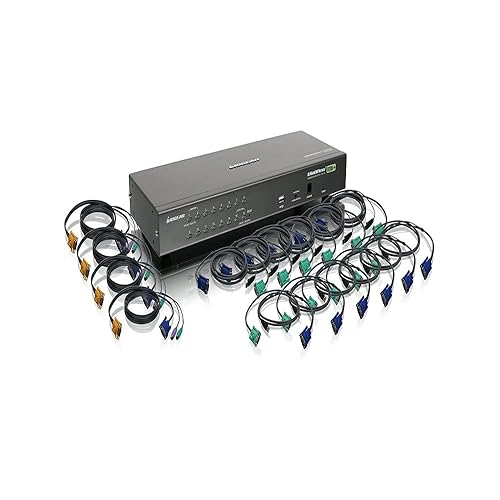

IOGEAR 16-Port PS/2 USB Combo KVM Switch with Cables
Model Number: GCS1716KIT
IOGEAR 16-Port PS/2 USB Combo KVM Switch with Cables is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
IOGear GCS1716KIT 16-Port USB PS/2 Combo KVM Switch with Cables is a combo switch allowing access and control of up to 256 computers from a single console (keyboard, mouse, and monitor). As many as 16 additional switches can be cascaded bringing the total number of connected computers to 256 computers that can be controlled from a single keyboard-monitor-mouse console. A custom ASIC (patent pending) provides an auto-sensing function that recognizes the position of each station on the installation, eliminating the need to manually set the position with DIP switches. Additionally, the GCS1716 features high density SPHD 15-pin instead of the usual 25-pin connectors thus allowing for a compact design and installation in a 1U system rack. The GCS1716 includes one USB port located on the front panel for easy access and sharing of any USB peripherals. Setup is fast and easy; plugging cables into their appropriate ports is all that is needed. The switch supports both USB and PS/2 connections for the console and computers. The GCS1716 intercepts keyboard input directly, thus eliminating the need for any software configuration. Switching between computers can be easily accomplished either by manually pressing the front panel push button port LEDs, entering hotkey combinations from the keyboard, or via a menu driven multilingual on-screen display (OSD) system. A convenient auto-scan feature permits automatic scanning and monitoring of activities on all connected. Requirements; VGA, SVGA, or MultiSync Monitor, Keyboard and Mouse (USB or PS/2) Computers: VGA, SVGA, or MultiSync video graphics card with an HDB-15 port PS/2 mouse and keyboard ports (6-pin mini DIN) and at least 1 USB port Multi OS Platform Support: PC / Mac / Sun / Linux
Whats in the box :
1 x GCS1716, 16-Port Combo KVM w/ Standard Rack Mounting Kit
6 x 2M USB KVM cable (G2L5202U)
6 x 3M USB KVM cable (G2L5203U)
2 x 2M PS/2 KVM cable (G2L5202P)
2 x 3M PS/2 KVM cable (G2L5203P)
1 x Console cable
1 x Cascade cable
1 x Firmware upgrade cable
1 x Grounding wire
1 x Foot pad set (4 pads)
1 x Power adapter
1 x Installation Guide
1 x Warranty Card
GCS1716KIT
| Brand | IOGEAR |
| Item model number | GCS1716KIT |
| Operating System | linux |
| Product Dimensions | 55.88 x 25.4 x 24.13 cm; 2.7 kg |
| Item dimensions L x W x H | 55.9 x 25.4 x 24.1 Centimetres |
| Power Source | Corded Electric |
| ASIN | B001M5M02S |
| Customer Reviews | 3.63.6 out of 5 stars 74 ratings3.6 out of 5 stars |
| Best Sellers Rank | #95,204 in Electronics (See Top 100 in Electronics) #361 in KVM Switches |
| Date First Available | March 7 2009 |
| Manufacturer | IOGEAR |
| Operation mode | Manually |
| Brand | IOGEAR |
| Switch type | Push Button |
| Material | Metal |
| Item dimensions L x W x H | 55.9 x 25.4 x 24.1 Centimetres |
| Actuator type | Push Button |
| International protection rating | IP54 |
| Specification met | certified frustration-free |
| Number of Items | 1 |
| Global Trade Identification Number | 00881317503503 |
