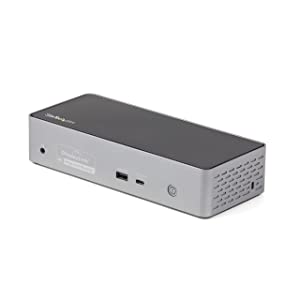

StarTech.com USB C Dock - 4K 60Hz Quad Monitor DisplayPort & HDMI - Universal USB-C Docking Station with 100W Power Delivery - USB Hub with 1x USB Type-C & 3X USB-A, Ethernet, Audio (DK31C4DPPD)

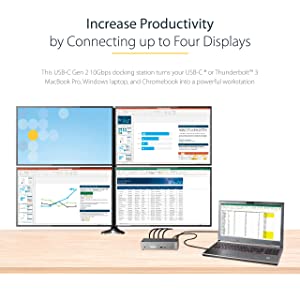

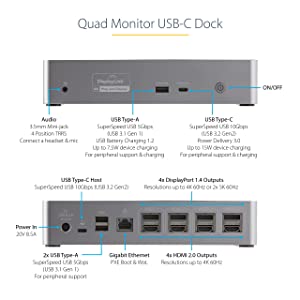

QUAD MONITOR USB-C DOCK: USB Type-C docking station supports up to 4 (4K 60Hz) monitors, also supports dual & triple display extended modes, using any combination of four DisplayPort (DP) and/or four HDMI 2.0 video outputs; Or 2x 5K DP 1.2 displays INCREASE PRODUCTIVITY: DisplayLink Certified dock with 4-port USB hub includes 3x USB-A 5Gbps (1x fast-charge 1.5A), 1x USB-C up to 10Gbps (15W 3A smartphone/tablet charging) port, Gigabit Ethernet (PXE Boot & WoL), and a 3.5mm TRRS audio headset/mic jack 100W POWER DELIVERY: USB Type-C dock with 100W PD to power & charge high performance USB-C/Thunderbolt 3 laptops incl. Lenovo X1 Extreme G2, X1 Carbon, Dell XPS15, HP Spectre x360, MacBook Pro 16 (M1 chip or Intel processor), & Surface Laptop 4 (13"/15") COMPATIBILITY: DisplayLink certified for universal compatibility where mixed laptop brands are deployed & works w/ devices from Dell, HP, Lenovo & Apple; supports Windows, macOS, Chrome OS; Port replicator works w/ TB3/TB4, USB4 & USB-C 5Gbps host devices EASY SETUP & MANAGEMENT: Quadruple display docking station with K-slot, 3.3ft (1m) USB-C host cable (USB-IF certified), mounting holes, front On/Off button; optimized ventilation for enhanced cooling CONNECTIVITY TOOLS: Provided with this device, the application improves performance and security, featuring MAC Address Changer, USB Event Monitoring, Windows Layout & Wi-Fi Auto Switch utilities This USB-C Gen 2 10Gbps docking station turns your USB-C ® or Thunderbolt™ 3 MacBook Pro, Windows laptop, and Chromebook into a powerful workstation. A USB 3.2 Gen 2 Type-C dock features everything you need, from quad HDMI or DisplayPort video outputs up to 4K 60 Hz to 10Gbps USB-C & USB-A downstream peripheral ports to 100W Power Delivery. This USB-C Gen 2 docking station with DP 1.2 and HDMI 2.0 HDR support, is a perfect choice for dual, triple, or quad monitor setup, supporting up to quad 4K 60Hz display output, with any combination of four DisplayPort or HDMI video interfaces, on USB-C Gen 2 laptops, MacBooks (including M1 based systems) and Windows-based Thunderbolt 3 laptops. Display & Resolution Specs: Quad 4K DisplayPort | Up to 3840 x 2160p @ 60Hz Quad 4K HDMI | Up to 3840 x 2160p @ 60Hz Quad 4K (Mix of DP & HDMI) | Up to 3840 x 2160p @ 60Hz Dual 5K DisplayPort* | Up to 5120 × 2880 Single 5K DisplayPort* | Up to 5120 × 2880 + Dual 4K HDMI/DisplayPort | Up to 3840 x 2160p @ 60Hz *Requires monitor support for 5K and uses two DP ports for one 5K display connection Power and charge USB-C/Thunderbolt 3 workstation laptops & ultrabooks with 100 watt PD. Higher power delivery, more than other USB-C 10Gbps quad monitor docks. Charge smartphones and other high powered devices with two downstream front-facing charging ports with BC 1.2 for USB-A and USB-C devices. Fast-charge ports support always-on charging so devices will charge whether or not a host laptop is connected. This USB-C Gen 2 docking station features 4 downstream USB ports in total to connect USB peripherals. Also included, is a gigabit Ethernet port with PXE Boot and WoL support, as well as 4-position TRRS stereo audio headset/mic port. This USB-C docking station comes with plenty of security features a K-slot for a Kensington style laptop lock and holes to mount the dock on the desk or wall and includes a USB-IF Certified 1m USB-C cable. USB-C dock features optimized ventilation on both ends and bottom side of dock to provide cooling support to higher temperature thermals that can be generated by high performance video/graphics applications and multiple 4K 60Hz video outputs. Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes: Advanced Windows Layout Utility: To setup and save custom windows layouts. Mac Address Pass-Through Utility: To improve network security. USB Event Monitoring Utility: To track and log connected USB devices Wi-Fi Auto Switch Utility: Enabling users to quickly access faster network speeds via wired LAN. For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools Specifications Warranty Information Warranty 3 Years Connector(s) 1 - Connector Type(s) Barrel Power Connector (CP (OD:7.4/ID:5.1/CPD:0.6)) USB Type-A (9 pin, 5 Gbps) 7.5W Charging USB 3.1 Gen 2 USB Type-C (Fast-Charge, 24 Pin, 10 Gbps) Ethernet Gigabit 3.5 mm Mini-Jack (4 Position) 2 - Connector Type(s) USB 3.1 Gen 1 USB Type-A (9 pin, 5 Gbps) 4 - Connector Type(s) DisplayPort HDMI 1 - Host Connectors USB Type-C (24pin, Gen 2, 10Gbps) Environmental Operating Temperature 0 to 50°C Storage Temperature -20 to 70°C Humidity 0% to 95% (non-condensing) at 25°C Hardware 4K Support Yes Fast-Charge Port(s) Yes Displays Supported 4 Ports 16 Audio Yes Interface USB 3.1 Gen 2 Bus Type USB 3.1 Gen 1 USB 3.1 Gen 2 Compatible Lock Slot Kensington Standard Slot (K-Slot) Chipset ID DisplayLink - DL6910 Realtek - RTS5423 Realtek - RTS5411 or RTS5411E Realtek - RTL8153 Indicators 1 - LED Indicators Power On/Off Packaging Information Package Height 3.8 in Package Length 9.1 in Shipping (Package) Weight 12.7 oz Package Width 5.6 in Performance Maximum Digital Resolutions 3840 x 2160p @ 60Hz, 5120 × 2880 (with 2x DP Connection) Supported Charging Outputs BC 1.2 (1.5A) USB-C (15W) PXE Yes Physical Characteristics Product Height 1.8 in Product Length 8.5 in Weight of Product 11.6 oz Product Width 3.5 in Color Black & Space Gray Power Power Source AC Adapter Included Laptop Charging via Power Delivery 100W Input Voltage 110V-240V AC Output Voltage 20V DC Output Current 8.5A Software OS Compatibility Windows 10, 11 (64 bit) Mac OS 10.14-12.0 Chrome OS 61.x Special Notes / Requirements System and Cable Requirements A host laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB Power Delivery Note Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery What's in the Box 1 - Included in Package Docking Station Host Cable (1m) Universal Power Adapter Power Adapter Cords (NA/JP) User Manual
