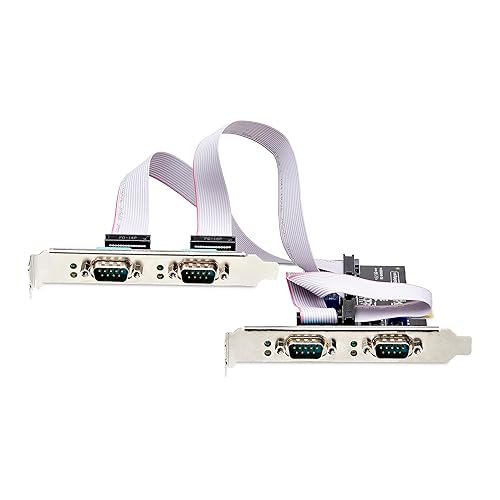

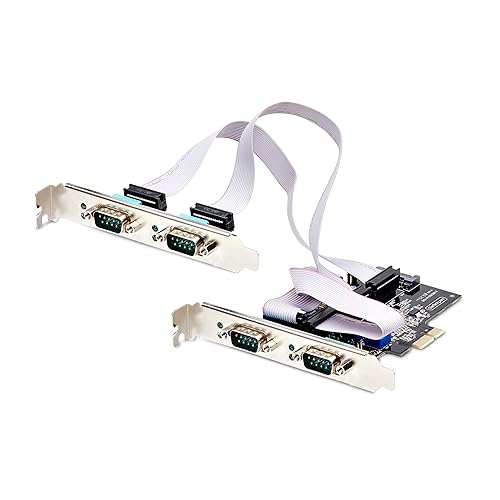

StarTech.com 4-Port Serial PCIe Card, Quad-Port PCI Express to RS232/RS422/RS485 DB9 Serial Card, Standard/Low-Profile Brackets, 16C1050 UART, ESD Protection, Windows/Linux (PS74ADF-SERIAL-CARD)

Add serial communication support to a desktop computer or Small Form Factor (SFF) system, using this 4-Port Serial PCI Express Card. The four DB9 ports can be independently configured to support RS-232, RS-422, and 2/4-wire RS-485 Recommended Standards, for communication with compliant serial peripheral devices. This PCIe Serial Card is equipped with on-board DIP switches, enabling each DB9 serial port to operate in RS-232, RS-422, and/or RS-485 mode(s). The card features LED indicators per port, providing real-time monitoring of port activity. The PCI Express Serial Adapter Card features three power modes that are configurable via on-board jumpers, including 12V (1.5A per port), 5V (1.5A per port), or no power (RI), over pin 9. This serial card enables the continued use of legacy serial devices, preventing down time and avoiding costly upgrades. The 4-Port PCIe Serial Card is an ideal system upgrade for a wide range of applications (e.g., point-of-sale terminals, PLCs, factory control and automation, scientific sensors, medical equipment, scanners, and oscilloscopes). This product is backed for 2-years and free lifetime 24/5 multi-lingual technical assistance.

PS74ADF-SERIAL-CARD

Brand	‎StarTech.com
Item model number	‎PS74ADF-SERIAL-CARD
Operating System	‎Windows 7, 8, 8.1, 10, 11 , Windows Server 2016, 2019, 2022 , Linux 2.6.13 and newer (LTS Versions Only)
Item Weight	‎2.08 ounces
Product Dimensions	‎4.8 x 4.3 x 0.6 inches
Item DimensionsLxWxH	‎4.8 x 4.3 x 0.6 inches
Color	‎Black
Manufacturer	‎StarTech.com
ASIN	‎B0CQ8S1MM8
Country of Origin	‎Taiwan
Date First Available	‎December 14, 2023
Brand	StarTech.com
Hardware Interface	PCI Express x1
Product Dimensions	4.8"L x 4.3"W x 0.6"H
Item Weight	0.13 Pounds
Compatible Devices	Personal Computer
