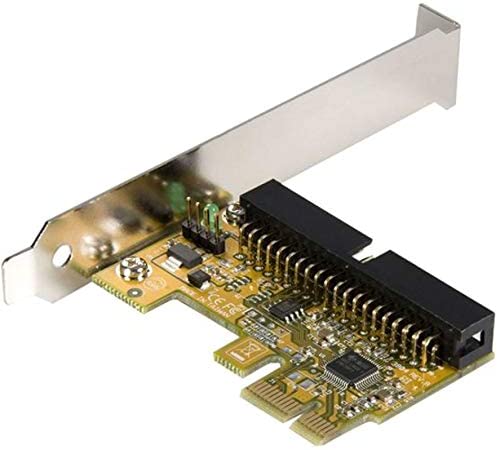

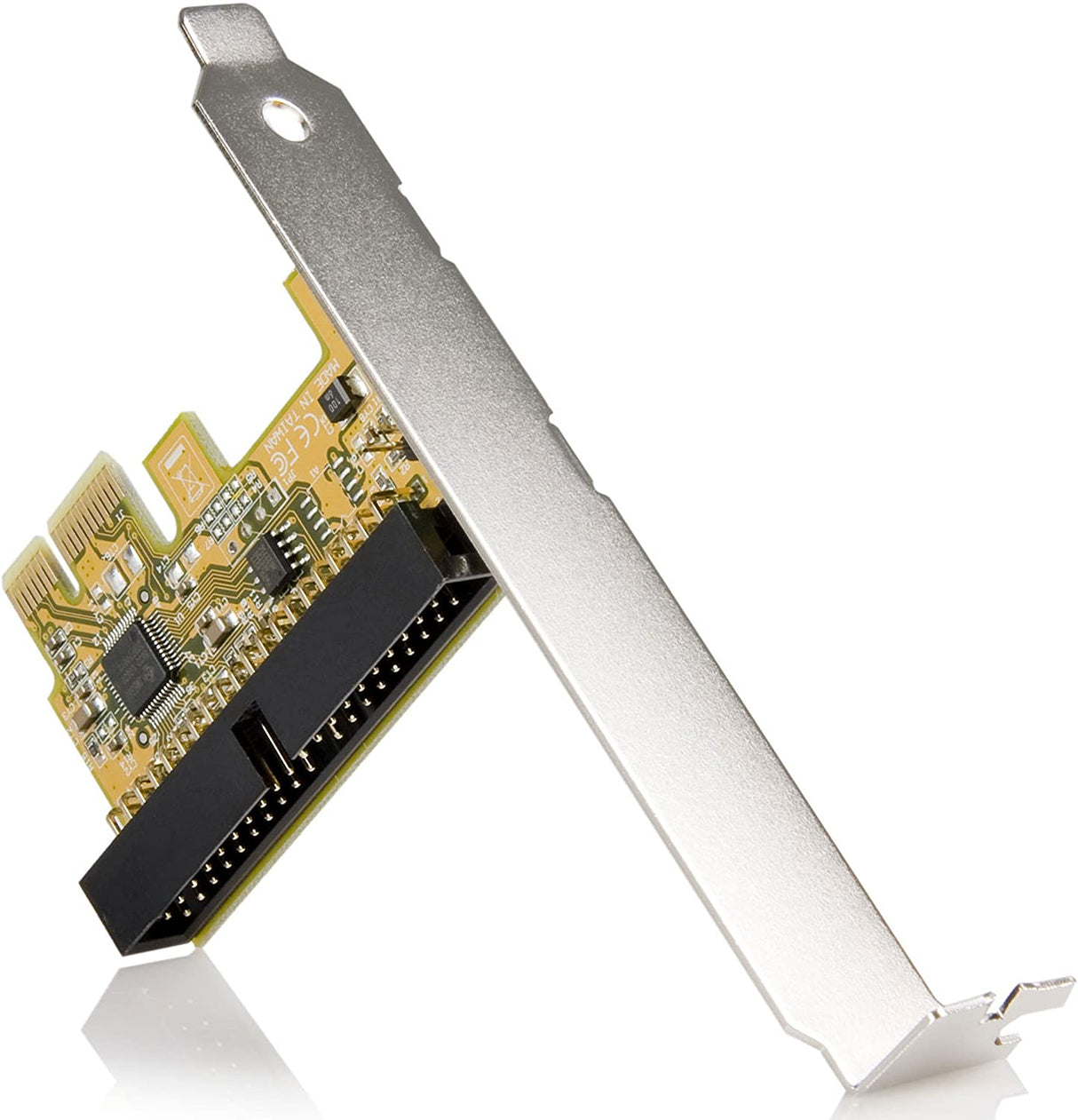

StarTech.com 1 Port PCI Express IDE Controller Adapter Card - Storage Controller - ATA - 133 MBps - PCIe x1 (PEX2IDE)

PEX2IDE PCI Standard Profile IDE Controller Adapter Card provides both standard and low profile brackets for adapting to slimline or small form factor system applications. This card provides a cost-effective way to use legacy drives with modern computers, by converting a PCI Express port into an IDE port. Interface: IDE. Data transfer rate: Up to 1.04 Gb/s. Ports: 1 x 44-pin IDC male ultra ATA/133 (ATA-7) ultra ATA. Form factor: Plug-in card. Platform supported: PC. Number of ports: 1. Compatibility: Windows 2000, XP (32/64-bit), Server 2008 R2, Vista (32/64-bit), 7 (32/64-bit), 8 (32/64-bit). Card type: Standard profile. Chipset ID: JMicron- J MB368. Connector type: 1 x PCIe male. Includes a low profile installation bracket, supports ATA/ATAPI commands, 48-bit LBA support, supports UDMA 6 mode which supports transfer rates up to 133 Mbps. Applications: Add an additional IDE port to a computer system, replace a failed IDE port, add an IDE port for connecting legacy ATA devices such as old hard drives and tape drives. System and cable requirements: PCIe expansion slot. Package contents: 1 x PCIe IDE controller card, 1 x IDE cable, 1 x low profile bracket, 1 instruction manual. Certification and standards: CE, ROHS, FCC. Warranty: Lifetime limited.
