SIIG ipcolor 4K HDMI 2.0 Extender Daisy Chain Transmission Kit
Model Number: CE-H26M11-S1
SIIG ipcolor 4K HDMI 2.0 Extender Daisy Chain Transmission Kit is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Specifications:
Compliance: HDMI 2.0 and HDCP 2.2
Resolution: Up to 3840x2160 @60Hz, HDR YUV 4:2:0 10bit
ipcolor Transmission protocol:
Latency: Zero
Signal compression: None
Audio:
HDMI input: PCM 2/5.1/7.1, Dolby, DTS 5.1
Toslink output: PCM2, DTS 5.1, Dolby 5.1
Transmission distance:
One-to-One connection:
4K@60Hz: Up to 40m via Cat5 cable
4K@60Hz: Up to 70m via Cat6/6a/7 cable

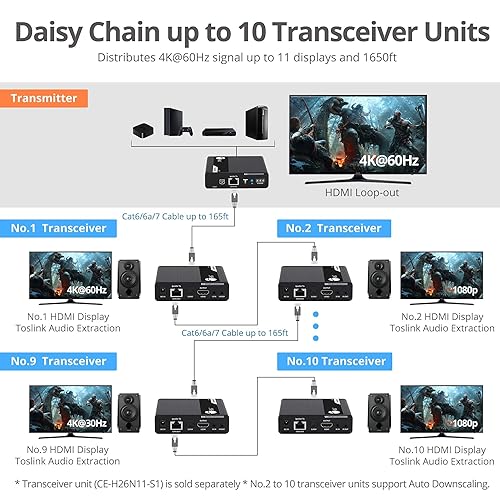

One-to-Many (daisy chain) connection:
4K@60Hz: Up to 165ft to each transceiver via Cat6/6a/7 cable
Additional Transceivers, part# CE-H26N11-S1, sold separately
Daisy chain:
Up to 10 Transceivers, part# CE-H26N11-S1, sold separately
Transmission distance: Up to 165ft to each transceiver
Connection topology:
One-to-One: 1 Transmitter to 1 Transceiver
One-to-Many (daisy chain): 1 Transmitter to up to 10 Transceivers
Additional Transceivers, part# CE-H26N11-S1, sold separately
IR remote control: 20-60Hz frequency range
Product:
Color: Black
Housing: Aluminum with Plastic

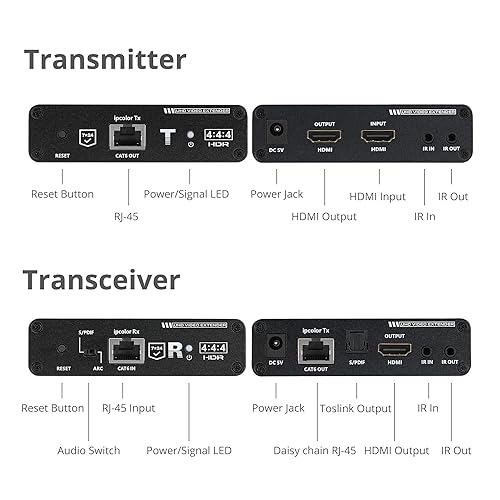

Transmitting unit (TX):
Dimensions: 4.17" (L) x 1.03" (H) x 3.90" (W)
Weight: 0.46 lbs
Connectors:
1x 19-pin HDMI, Type A, Female, Input
1x19-pin HDMI, Type A, Female, Loop out
1x 3.5mm jack, IR Blaster
1x 3.5mm jack, IR Receiver
1x 8-pin, RJ45, Output
1x Reset button
1x Power jack
Transceiver unit (RX):
Dimensions: 4.17" (L) x 1.03" (H) x 3.90" (W)
Weight: 0.46 lbs
Connectors:
1x 19-pin HDMI, Type A, Female, Output
1x 3.5mm jack, IR Blaster
1x 3.5mm jack, IR Receiver
1x 8-pin RJ4, Input
1x 8-pin RJ45, Output (for Daisy Chain connection)
1x S/PDIF Toslink, Audio & ARC
1x Slide switch, (S/PDIF or ARC)
1x Reset button
1x Power jack
Power adapter:
Input: 100-240V / 50-60Hz
Output: DC 5V/2A
UL listed: E335801 / Level: VI
Environmental c
CE-H26M11-S1
| Brand | SIIG |
| Manufacturer | SIIG |
| Model | CE-H26M11-S1 |
| Part Number | CE-H26M11-S1 |
| Compatible Devices | Amplifier, Gaming Console, Monitor, Projector, Speaker, Television |
| Number of Items | 1 |
| Batteries included | No |
| Batteries Required | No |
| Type of cable or wire | Ethernet, HDMI |
| Number of Ports | 16 |
| Item model number | CE-H26M11-S1 |
| Product Dimensions | 9.91 x 10.59 x 2.62 cm; 208.65 g |
| ASIN | B08WNYM4H3 |
| Date First Available | Feb. 17 2021 |
| Customer Reviews | 5.05.0 out of 5 stars 2 ratings5.0 out of 5 stars |
| Compatible devices | Amplifier, Gaming Console, Monitor, Projector, Speaker, Television |
| Specific uses for product | TV, Monitor |
| Connector type | HDMI |
| Colour | Black |
| Item dimensions L x W x H | 9.9 x 10.6 x 2.6 Centimetres |
