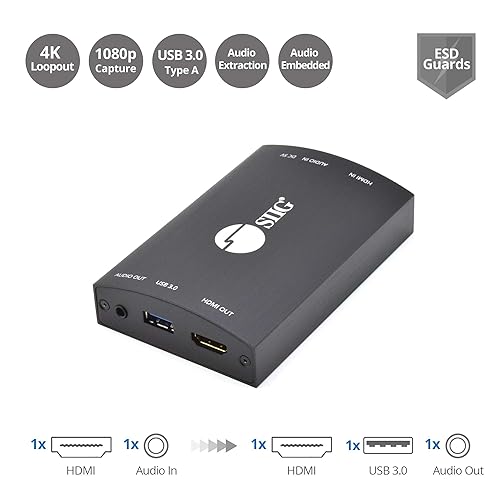

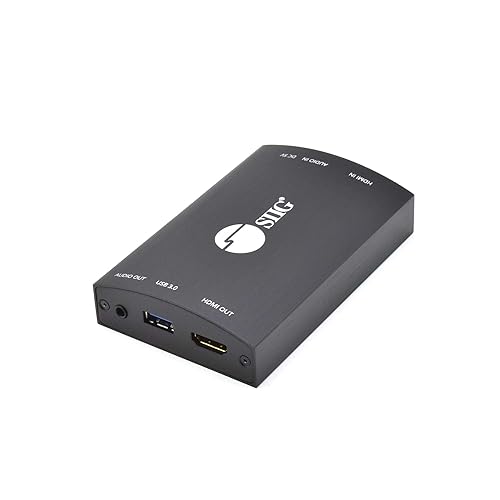

SIIG CE-H26H11-S1 USB 3.0 HDMI Video Capture Dev
Model Number: CE-H26H11-S1
SIIG CE-H26H11-S1 USB 3.0 HDMI Video Capture Dev is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Specifications:
Chipset: IT6663FN
HDMI Bandwidth: Single-link 600MHz (18Gbps)
Video Bandwidth: Up to 350MBps (USB 3.0)
Input resolution: Up to 4K@60Hz YUV 4:4:4
Recording mode: H.264 (Software compression)
Recording video format: YUY2 (USB 3.0) / MJPG (USB 2.0 / 3.0)
Software compatibility: OBS Studio (Windows, Linux), AMCap (Windows), Potplayer (Windows)¸VLC (OS X, Linux), XSplit Boardcast (Windows), Skype (Windows, OS X), Zoom (Windows), Hangout (Windows), TeamViewer (Windows)
ESD protection: Human body model ±15KV (air-gap discharge); ±8KV (contact discharge)
Product:
Dimensions: 4.13" (L) x 0.94" (W) x 2.68" (H)
Weight: 0.28 lbs
Color: Black
Housing material: Aluminum
Connectors:
1x 19-pin HDMI, Female, Input
1x 19-pin HDMI, Female, Loop-out
1x 9-pin USB 3.0, Type-A, Female, To PC system
1x 3.5mm jack, Audio, Input
1x 3.5mm jack, Audio, Output
1x 5-pin, Micro USB, Power jack
Power adapter:
Input: 100-240VAC, 50/60 Hz
Output: DC 5V/2A
UL Listed: E135856 /Level: VI
Environmental conditions:
Operating temperature: 32 to 104 degrees F
Storage temperature: -4 to 140 degrees F
Relative humidity: 20 to 90% RH (non-condensing)
Certifications/Standards: FCC, CE, RoHS
TAA compliant
Country of origin: Taiwan
System Requirements:
Desktop PC with one available USB 3.0 port
Windows® 10 / 8.1 / 7
MacOS® and Linux
Package contents:
USB 3.0 HDMI Video Capture Device with 4K Loopout
USB 3.0 A to A cable
Power adapter
Quick start guide
CE-H26H11-S1
| Brand | SIIG |
| Manufacturer | SIIG |
| Model | CE-H26H11-S1 |
| Model Name | CE-H26H11-S1 |
| Part Number | CE-H26H11-S1 |
| OS | Windows |
| Hardware interface | USB |
| Tuner Technology | DVB-T |
| Compatible Devices | Camcorder, Camera, Gaming Console |
| Mounting Hardware | Capture Card, Installation Guide |
| Video capture resolution | 1080p |
| Batteries included | No |
| Batteries Required | No |
| Number of Ports | 3 |
| Item model number | CE-H26H11-S1 |
| Product Dimensions | 6.81 x 10.49 x 2.39 cm; 127.01 g |
| ASIN | B08WC9J5G5 |
| Date First Available | Feb. 16 2021 |
| Brand | SIIG |
| Hardware interface | USB |
| Video capture resolution | 1080p |
| Operating system | Windows |
| Model name | CE-H26H11-S1 |
| Platform | Linux, Windows, Windows 7 |
| Item weight | 127 g |
| Included components | Capture Card, Installation Guide |
| Tuner technology | DVB-T |
| Video standard | yuv |
