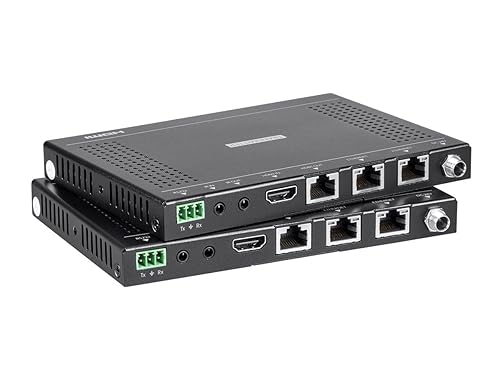

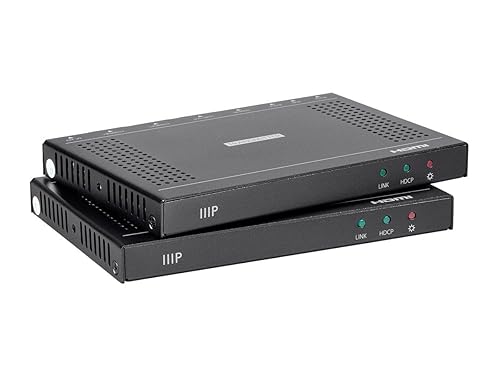

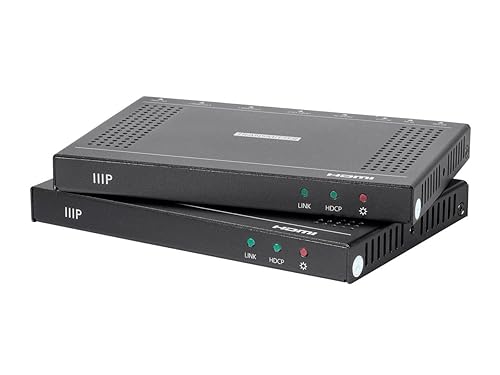

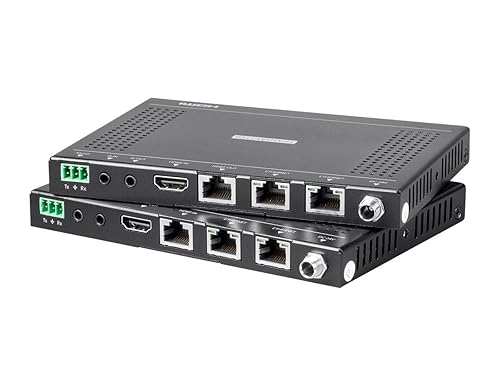

Monoprice Blackbird 4K Pro HDBaseT Extender Kit, 100m with PoH, RS232, HDCP 2.2

Blackbird 4K Pro HDBaseT Extender Kit, 100m with PoH, RS232, HDCP 2.2

The Blackbird™ 4K Pro HDBaseT™ Extender distributes HDMI® signals over a single Cat6 cable to distances up to 100 meters. It supports the PoH feature, eliminating the need for power adapters on the receiver.

Features:

• Ultra-thin design

• Supports resolution up to 4K@60Hz

• Supports HDCP 2.2

• Transmits 4K video to distances up to 70 meters

• Transmits 1080p video to distances up to 100 meters

• Supports Ethernet extension to distances up to 100 meters

• Support bi-directional PoH

Full Specs

• Transmitter Inputs: 1x HDMI®, 1x RS232, 1x IR (3.5mm), 2x Ethernet (RJ45)

• Transmitter Outputs: 1x HDBaseT™ (RJ45), 1x IR (3.5mm)

• Receiver Inputs: 1x HDBaseT (RJ45), 1x IR (3.5mm), 1x RS232, 2x Ethernet (RJ45)

• Receiver Outputs: 1x HDMI, 1x IR (3.5mm)

• Transmission Standard: HDBaseT

• Maximum Resolution: 4K@60Hz

• HDCP Version: 2.2

• Maximum Bandwidth: 10.2 Gbps

• Ethernet Speeds: 10/100 Mbps

• 4K Transmission Distance: up to 230 feet (70 meters)

• 1080p Transmission Distance: up to 328 feet (100 meters)

• Ethernet Transmission Distance: up to 328 feet (100 meters)

• Operating Temperature: +32 ~ +122°F (0 ~ +50°C)

• Operating Humidity: 0 ~ 90% RH, noncondensing

• Input Power: 24 VDC, 1.25A

• AC Adapter Input Power: 100 ~ 240 VAC, 50/60 Hz

• Maximum Power Consumption: 10 watts

• Transmitter Dimensions: 6.0" x 0.6" x 4.1" (152 x 16 x 104 mm)

• Receiver Dimensions: 6.0" x 0.6" x 4.1" (152 x 16 x 104 mm)

• Transmitter Weight: 8.3 oz. (235g)

• Receiver Weight: 8.5 oz. (241g)
