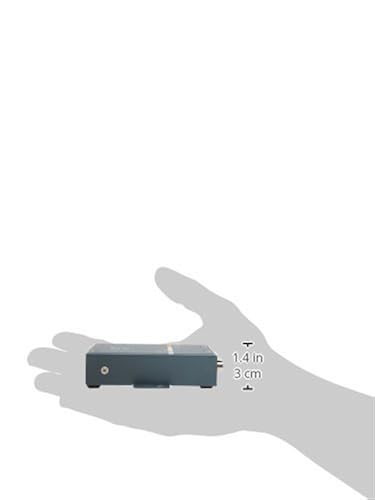

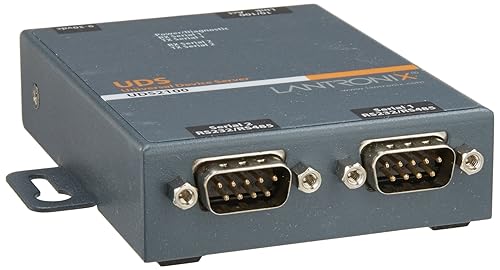

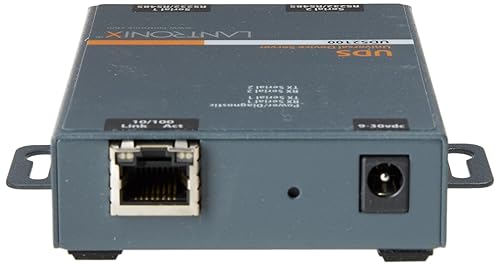

Lantronix UDS2100 2-Port Device Server
Model Number: UD2100002-01
Lantronix UDS2100 2-Port Device Server is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Lantronix UDS2100 2-Port Device Server
Manufacturer: Lantronix
Part: UD2100002-01
UPC: 783384231733
Category: Networking - Servers - Other Servers
Description: Lantronix Device Server UDS2100 Two Port Serial (RS232/
RS422/ RS485) to IP Ethernet
Lantronix Device Server UDS2100 Two Port Serial (RS232/ RS422/ RS485)
to IP Ethernet - Device server - 2 ports - 10Mb LAN, 100Mb LAN, RS-232,
RS-422, RS-485
Product Description Lantronix Device Server UDS2100 Two Port Serial
(RS232/ RS422/ RS485) to IP Ethernet - device server
Device Type Device server
Form Factor External
Processor 1 x 48 MHz
RAM 256 KB
Flash Memory 2 MB
Ports Qty 2
Data Link Protocol Ethernet, Fast Ethernet, RS-232, RS-422, RS-485
OS Required Microsoft Windows 98/ME/NT/2000/XP
Power AC 120/230 V
Dimensions (WxDxH) 2.8 in x 3.7 in x 0.9 in
Weight 14.11 oz
Manufacturer Warranty 2 years warranty
Extended Specifications
General
Device Type Device server
Width 2.8 in
Depth 3.7 in
Height 0.9 in
Weight 14.11 oz
Processor / Memory / Storage
Processors Installed 1 x 48 MHz
Max Supported Qty 1
RAM 256 KB SRAM
Flash Memory 2 MB
Networking
Form Factor External
Ports Qty 2
Connectivity Technology Wired
Data Link Protocol Ethernet, Fast Ethernet, RS-232, RS-422, RS-485
Network / Transport Protocol TCP/IP, UDP/IP, ICMP/IP
Remote Management Protocol SNMP, Telnet, HTTP
Status Indicators Link activity, port duplex mode, power, status
Features Flow control, DHCP support, ARP support, manageable, half
duplex mode, full duplex mode
Expansion / Connectivity
Interfaces 2 x RS-232/4
UD2100002-01
| Brand | Lantronix |
| Manufacturer | Lantronix |
| Model | UD2100002-01 |
| Model Name | UD2100002-01 |
| Model year | 2010 |
| Part Number | UD2100002-01 |
| RAM | 0.26 MB |
| Flash memory installed size | 2 |
| Processor model number | UDS2100 |
| Compatible Devices | Personal Computer |
| Number of Items | 1 |
| Color Screen | No |
| Output Wattage | 1.8 Watts |
| Wattage | 1.8 watts |
| Batteries included | No |
| Batteries Required | No |
| Number of Ports | 2 |
| Connector Type | ethernet, rs 232 |
| Form Factor | ATX |
| Includes rechargable battery | No |
| Has Programmable Buttons | No |
| Item model number | UD2100002-01 |
| Product Dimensions | 9.5 x 7.2 x 2.3 cm; 400 g |
| ASIN | B000KQ5UO0 |
| Date First Available | June 14 2010 |
| Best Sellers Rank | #331,407 in Electronics (See Top 100 in Electronics) #342 in Computer Servers |
| Is discontinued by manufacturer | No |
| Model name | UD2100002-01 |
| Brand | Lantronix |
| Compatible devices | Personal Computer |
| Connector type | ATX |
| Output wattage | 1.8 Watts |
| Form factor | ATX |
| Wattage | 1.8 watts |
| Cooling method | Air |
| Item dimensions L x W x H | 9.5 x 7.2 x 2.3 Centimetres |
| Item weight | 400 Grams |
