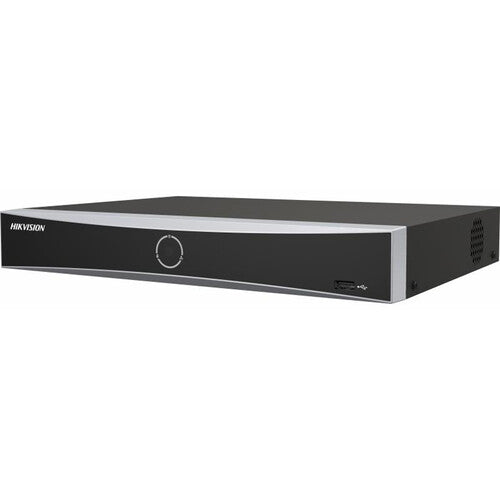

Hikvision AcuSense DS-7604NXI-K1/4P 4-Channel 12MP NVR (No HDD)

Hikvision DS-7604NXI-K1/4P Overview

Record from and manage up to 4 cameras with the AcuSense DS-7604NXI-K1/4P 4-Channel 12MP NVR (No HDD) from Hikvision. This NVR supports IP cameras up to 12MP. It is equipped with a SATA port that supports an HDD up to 10TB (HDD available separately). H.265+, H.265, H.264+, and H.264 video compressions keep file sizes manageable while maintaining the best quality possible. AcuSense technology provides vehicle and human detection while filtering out false video content analysis alarms.

This NVR supports two-way audio. An HDMI and a VGA port enable video output to an external monitor (available separately) at up to 4K UHD resolution.

Recording resolution up to 12MP

H.265+, H.265, H.264+, and H.264 video compressions

TLS encryption for secure transmission stream

1 x VGA and 1 x HDMI outputs

HDD storage expandable to 10TB

4-channel synchronous playback

1000M RJ45 self-adaptive Ethernet port

2 x USB 2.0

Smart Functions

Motion Detection 2.0 for accurate human and vehicle analysis (4 channels)

Smart search for selected video area

Smart playback improves playback efficiency

Face detection and analytics include: face picture comparison, human face capture, and face picture search

Up to 16 face picture libraries, along with up to 20,000 face pictures in total

1-channel human face capture

2-channel face picture comparison alarm

UPC: 842571145441

In the Box Hikvision AcuSense DS-7604NXI-K1/4P 4-Channel 12MP NVR (No HDD). Limited 3-Year Manufacturer Warranty.

User Manual 4.0 MB

Hikvision DS-7604NXI-K1/4P Specs

General

Number of Channels 4 Playback Resolution HDMI: 3840 x 2160 at 30 Hz 2560 x 1440 at 60 Hz VGA: 1920 x 1080 at 60 Hz Recording Resolution 1080p, 720p, 4CIF, 2CIF, DCIF, QCIF, CIF, UXGA, VGA, 3 MP, 4 MP, 5 MP, 6 MP, 8 MP, 12 MP Throughput 40 Mb/s (Incoming) 80 Mb/s (Outgoing) IP Camera Support 4 Decoding Resolution 1 Channel: 8 MP, 12 MP at 30 fps 2 Channels: 8 MP at 30 fps 3 Channels: 4 MP at 30 fps 4 Channels: 4 MP at 30 fps 2-Way Audio Yes

Connectivity

A/V I/O 1 x HDMI 1 x VGA 1 x RCA Audio Output (2 V p-p, 1 Kilohm) 1 x RCA Audio Input (1 Kilohm, Linear) Communication Inputs/Outputs 1 x RJ45 Gigabit Ethernet 4 x RJ45 10/100 Mb/s Ethernet PoE 2 x USB-A 2.0 Audio Inputs/Outputs 1 Input 1 Output System Connection 1 x SATA Remote Connections 128 Network Protocols DDNS, DHCP, DNS, HTTP, HTTPS, IPv4, IPv6, NFS, NTP, RTSP, SADP, SMTP, SNMP, TCP/IP, TLS, UPnP, iSCSI

Compatibility

Supported Video Codecs H.264, H.264+, H.265, H.265+ Supported Audio Codecs AAC, G.711A, G.711U, G.722, G.726 Supported IEEE Standards 802.3af, 802.3at

Computing

Optical Drive None

System

Installed Drive None Max Capacity Supported 10 TB (Total) Number of Bays 1 x Internal

Software System Requirements

Mobile App Compatible Yes: Android & iOS App Name: Hik-Connect *As of November, 2022: Check with manufacturer for the most up-to-date compatibility

Notifications

Alarm Connections None Event Trigger Analytics, Motion

System Functions

Search Modes Smart Search Recording Modes Analytics Fisheye Dewarping None

Electrical

Power Consumption 10 W (Without HDD) Power Supply Type External PoE Power Budget 50 W DC Input Power 48 VDC at 1.35 A

Environmental

Operating Temperature 14 to 131°F / -10 to 55°C Operating Humidity 10 to 90%

Physical

Built-In Display None Certifications CE, FCC *as per Manufacturer LED Indicators Yes Dimensions (W x D x H) 12.6 x 9.4 x 1.9" / 320.0 x 240.0 x 48.0 mm Weight 2.2 lb / 1 kg (Without HDD)

Packaging Info

Package Weight 4.47 lb Box Dimensions (LxWxH) 16.6 x 12.6 x 3.4"
