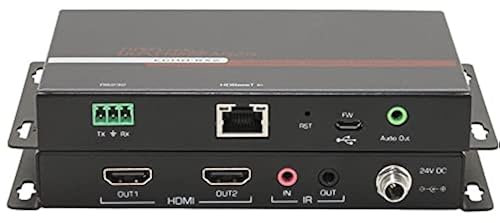

Hall Research Echo-RX2 Extender (Receiver) with Dual Outputs

The ECHO family is a series of extension products designed to allow a single HDMI 2.0 source to display remotely at up to eight different locations, using technology. HDMI resolutions up to 4K UHD (4K@60 4:4:4) can be extended up to 70m, while resolutions up to 1080p can be extended 100m over a single CAT5e or CAT6 cable. The ECHO family supports HDCP 2.2 and 1.4 content protection, as well as HDR10 high dynamic range video. In addition to HDMI extension, the ECHO family also extends RS-232 serial data, and bi-directional IR for control of remote devices. All senders include a local HDMI output, EDID routing control, de-embedded analog audio, and Power over Cable (PoC) to power remote receivers. The ECHO-4S and ECHO-8S have built-in HDMI splitters to extend a single video to four and eight receivers respectively and have additional features including RS-232 and IR loop output for daisy-chaining Senders, and digital TOSLINK audio de-embedding.

ECHO-RX2

Item Weight	2 pounds
ASIN	B096TCW29K
Item model number	Echo-RX2
Date First Available	May 21, 2021
Manufacturer	Hall Research
Brand	Hall Research
Connectivity Technology	HDMI
Special Feature	eARC
Compatible Devices	Smartphone, Speaker
Total HDMI Ports	2
Connector Type	HDMI
Audio Output Mode	Stereo
Surround Sound Channel Configuration	5.1
Video encoding	H.264, H.265/HEVC
Number of Channels	2
