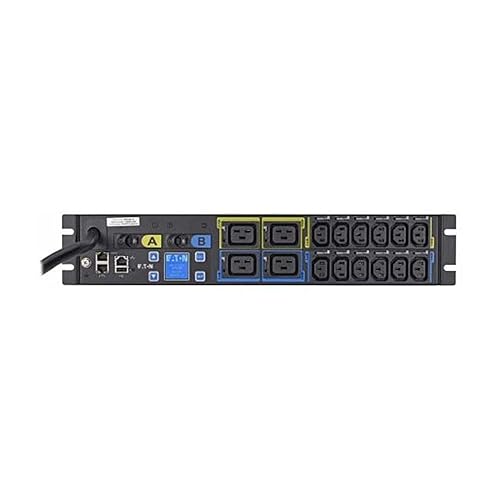

Eaton Electrical - EMIU06-10 ePDU Metered 16-Outlet PDU - NEMA L6-30P - 12 x IEC 60320 C13, 4 x IEC 60320 C19-230 V AC - 5760 W - Network (RJ-45) - 2U - Horizontal - Rack Mount

Eaton Metered Input ePDUs provide remote monitoring of the current draw of individual sections via network communication. This capability, combined with state-of-the-art software allows you to aggregate the information from many ePDUs in one location. A local display is also available for phase balancing and for easy start-up and provisioning of servers. New ePDU G3Metered Input models feature best-in-class technologies, including ±1% billing grade accuracy, an advanced LCD pixel display, a hot-swap meter and the ability to daisy chain four ePDUs to share the same network connection and IP address. Product Type: PDU Input Voltage: 230 V AC Product Type: PDU Input Voltage: 230 V AC Manufacturer Part Number: EMIU06-10 Input Receptacles: 1 x NEMA L6-30P Input Current: 24 A Output Receptacles: 4 x IEC 60320 C19 Output Receptacles: 12 x IEC 60320 C13 Input Receptacles: 1 x NEMA L6-30P Input Current: 24 A Manufacturer: Eaton Corporation Product Name: ePDU Metered 16-Outlet PDU Output Receptacles: 4 x IEC 60320 C19 Output Receptacles: 12 x IEC 60320 C13 Product Line: ePDU Rack Height: 2U Brand Name: Eaton Product Series: Metered Rack Height: 2U Brand Name: Eaton Placement: Rack Placement: Rack Height: 19 Width: 3.4 Depth: 8.4 Product Family: ePDU Metered Mounting Orientation: Horizontal Power Rating (Watt): 5760 W Network (RJ-45): Yes Mounting Orientation: Horizontal Power Rating (Watt): 5760 W

EMIU06-10

Product Dimensions	23 x 10.5 x 6.8 inches
Item Weight	12.85 pounds
ASIN	B073N7Q76G
Item model number	EMIU06-10
Date First Available	July 2, 2017
Manufacturer	Eaton Electrical
Brand	Eaton
Output Wattage	5760 Watts
Form Factor	Rack-mountable
Wattage	5760 watts
Item dimensions L x W x H	23 x 10.5 x 6.8 inches
Item Weight	12.85 Pounds
Maximum Input Voltage	230 Volts (AC)
Minimum Input Voltage	230 Volts (AC)
UPC	786685991078
