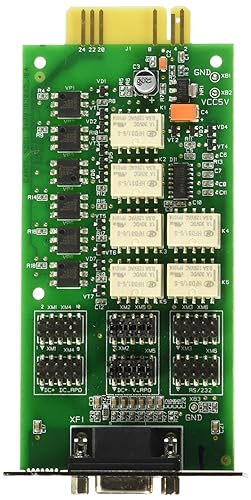

Eaton DB9 RS-232 Relay/Serial Interface Mini-Slot Card for Eaton 5PX G2, 9SX, and 9PX Lithium-ion UPS Systems
Model Number: RELAY-MS
Eaton DB9 RS-232 Relay/Serial Interface Mini-Slot Card for Eaton 5PX G2, 9SX, and 9PX Lithium-ion UPS Systems is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Mini-Slot Card Works with Eaton 5PX G2 and 9SX UPS Systems This RELAY-MS relay/serial interface card offers two types of interfaces via a DB9/RS-232 connector: dry contacts (contact mode) and RS-232 serial interface (RS-232 mode). It enables network monitoring of a connected UPS system through a relay-connected computer. Network monitoring helps protect the computer by initiating automatic shutdowns. Supported Eaton UPS systems include the 5P, 5PX, 5PX G2, 9PX, 9PXM, 9SX and 93E series. No UPS shutdown, restart or load disconnection is necessary to install RELAY-MS. Ready for Operation in 2 Modes In contact mode (the default setting), RELAY-MS provides UPS information to an alarm system, programmable logic controller (PLC) or computer via dry contacts (relay). Transmitted information includes load power, load on bypass, load on battery, load on utility, battery fault and low battery. In RS-232 mode (RS-232 cable sold separately), RELAY-MS offers an RS-232 interface for connection to a computer or UPS control display unit.
National Stock Number | 5998-01-626-0340 |
Brand | Eaton |
Series | Remote Power Management Adapter |
Item model number | RELAY-MS |
Hardware Platform | PC |
Item Weight | 0.32 ounces |
Product Dimensions | 5.9 x 9.44 x 1.96 inches |
Item Dimensions LxWxH | 5.9 x 9.44 x 1.96 inches |
Number of Processors | 1 |
Voltage | 240 Volts |
Batteries | 1 Lithium Ion batteries required. |
Manufacturer | Eaton Corporation |
ASIN | B0076CT4VG |
Is Discontinued By Manufacturer | No |
Date First Available | February 20, 2012 |
Contact Type | Normally Open |
Brand | Eaton |
Operation Mode | Automatic |
Wattage | 15.8 watts |
Specification Met | Information Not Available |
