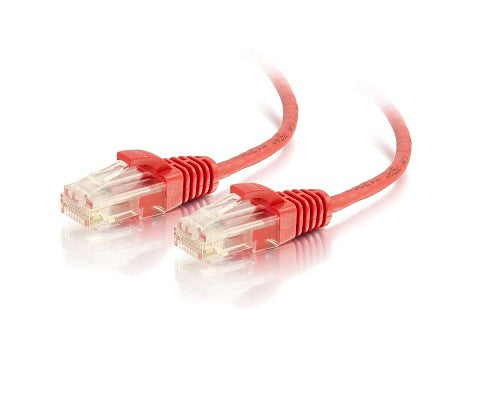

C2g 02233

The Cat6 Snagless Unshielded (UTP) Slim Network Patch Cable is the perfect solution for high density datacenter applications. The use of 28 AWG conductors allows for a 36% reduction in diameter over a standard Cat6 network patch cable. This reduced diameter provides a smaller cable surface area which allows for increased airflow when compared to standard Cat6 cables. The 28 AWG conductors also allow this cable to have a smaller bend radius than standard Cat6 cables. The small size and small bend radius of this cable allows it to be easily routed through cable management panels. This cable is designed for fast Ethernet networks that require bandwidth-intensive voice, data, or video distribution applications. Constructed from high quality copper cable, this design minimizes Near-End Crosstalk (NEXT) levels. The molded, snagless boot prevents unwanted cable snags during installation and provides extra strain relief. Available in a variety of colors to easily color-code your network installation.

C2G02233

Features	Poe (Power Over Ethernet), Stranded Conductors, Stranded Copper
Connector Type	Slim
Shielded/Unshielded	Unshielded
CE Certified	Yes
Insulation Material	Fmpe (Foam Polyethylene)
Product Length US	15.0 Ft
Wire Gauge	28 Awg
Jacket Material	Pvc (Polyvinyl Chloride)
Plating Specification	50 Μ In Gold
Conductor Material	Copper
Voltage	30.0 V
Operating Temperature Max	80 °c
Bend Radius	15.2 Mm
REACH Compliant	Yes
Application Sector	Commercial, Industrial, Residential
Product Weight US	0.199 Lb
Product Depth US	8.0 In
Product Line	C2g
Cable Type	Ethernet Patch Cable
Energy Savings	No
Product Width US	12.5 In
Cable Diameter	3.8 Mm
Country Of Origin	Vietnam
Manufacturer Part Number	C2g02233
Shield Type	Utp
Color	Red
Connector Material	Gold
Indoor/Outdoor	Indoor
Cable Length	15 Ft
Product Height US	0.5 In
Data Transfer Rate	10 Gbps
Type	Cable
RoHS Compliant	Yes
