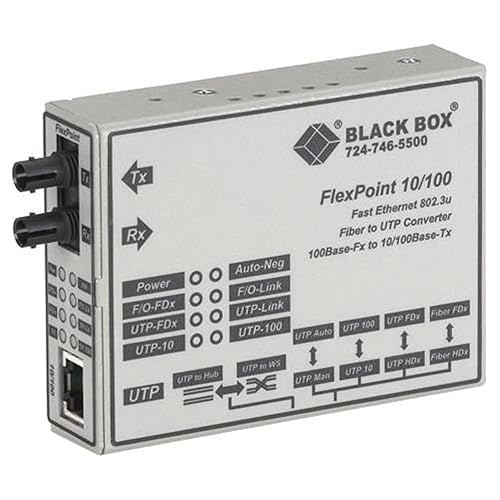

Black Box Network Services LMC100A-R3 Flexpoint Modular Media Converter 10bas

Further Details Functions as a Layer 2 switch-each port is capable of learning and aging up to 1024 MAC addresses. Sends data up to 2 kilometers (62.1 mi.). Complies with 10BASE-T, 100BASE-TX, and 100BASE-FX IEEE 802.3 standards. Both UTP and fiber ports support full- and half-duplex operation. UTP port autosenses 10- or 100-Mbps speeds. Manual override switch for extra control over fiber and UTP ports. Crossover switch provides easy connections to hubs or switches. Hardware available for mounting converter to a wall or a DIN rail. Metal housing has side air vents. Can also be used in the FlexPoint 14-Slot Power Chassis or the FlexPoint 5-Position Rackmount Kit. FlexPoint trade; Converters from Black Box are versatile and cost-effective standalone converters that you can upgrade to a chassis-based system. They provide the ultimate in flexibility and reliability for your expanding multimedia LAN.The incredible variety and versatility of this system make it ideal for networks that are subject to constant upgrades and changes.Tailor the system to your requirements. Get the converters you need now and use them individually. Then, when your LAN grows, mount your converters on the wall, in the FlexPoint 5-Position Rackmounting Kit, or in the FlexPoint Power Chassis. The chassis holds 14 converters and single or dual AC power supplies.

LMC100A-R3

Is Discontinued By Manufacturer	No
Product Dimensions	4 x 3 x 1 inches; 14.4 ounces
Item model number	LMC100A-R3
Date First Available	November 19, 2017
Manufacturer	Black Box Corporation
ASIN	B077M1Z175
Operation Mode	ON-OFF
Current Rating	0.8 Amps
Operating Voltage	3 Volts
Contact Type	Normally Open
Connector Type	8 Pin EPS
Brand	Black Box
Material	Metal
Item dimensions L x W x H	4 x 3 x 1 inches
International Protection Rating	IP54
Connectivity Protocol	Ethernet
