Atdec SD-DP-420 Spacedec Donut Pole Mount with Quick Release Mechanism and 75x75/100x100mm VESA Support, 16.5-Inch, Black Short

PRODUCT DESCRIPTION

Atdec's Donut Poles offer superior display versatility. They come in three different lengths each including one QuickShift Donut to guarantee a customized display installation. The cutting-edge QuickShift lever allows the screen to be moved up and down the pole by hand, without the need for any tools. Viewing angle and screen orientation are also fully adjustable thanks to the ball joint mechanism, finished off with a quick release mechanism to rapidly remove and change screens. Built in internal cable management ensures a professional finish for maximum display impact.

FROM THE MANUFACTURER

Spacedec Donut Poles offer superior display versatility. They come in three deferent lengths each including one Quick Shift Donut to guarantee a customized display installation. The cutting-edge Quick Shift lever allows screen to be moved up and down the pole by hand, without the need for any tools. Viewing angle and screen orientation are also fully adjustable thanks to the ball joint mechanism, finished off with a quick release mechanism to rapidly remove and change screens. Built in internal cable management ensures a professional finish for maximum display impact. It is available in 3 different pole lenghts: 420 mm (16.5-Inch), 750 mm (29.5-Inch), and 1150 mm (45.3-Inch).

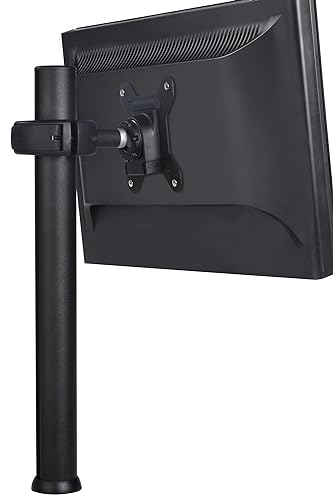

SD-DP-420 Spacedec Donut Pole Mount

Click here for a larger image Picture showing desk clamp and bolt through mounting options

Click here for a larger image Picture showing ball joint and quick release mechanism

Click here for a larger image Picture showing internal and external cable management

Click here for a larger image

PRODUCT KEY FEATURES:

* Designed for simple installation

* Quick Shift donut guarantee a customized display installation

* The cutting-edge Quick Shift lever allows screen to be moved up and down the pole by hand, without the need for any tools

* Quick release mechanism for fast display attachment/removal

* Ball joint mechanism allows 20-Degree of display adjustment in any direction from the vertical plane

* Viewing angle and portrait/landscape screen orientation are also fully adjustable

* Advanced internal and external cable management ensures a professional finish for maximum display impact

* Bolt through and desk clamp mounting options included

* Comes with all mounting hardware

* Made up of Aluminum/Steel

* 10-Year limited warranty

* GENERAL FEATURES:

* DISPLAY COMPATIBILITY:

Spacedec Donut Pole is compatible with most Flat Panel Displays between 12-Inch (30 cm) and 24-Inch (61 cm) that feature either 75 mm x 75 mm or 100 mm x 100 mm VESA mounting hole patterns.

DISPLAY WEIGHT COMPATIBILITY:

Each Quickshift Donut supports a maximum weight of 12 kg (26.5 lbs)

* Donut Pole 420 mm supports a total of 12 kg (26.5 lbs)

* Donut Pole 750 mm supports a total of 24 kg (53 lbs)

* Donut Pole 1150 mm supports a total of 36 kg (79.5 lbs)

* MOUNTING OPTION:

Spacedec Donut Pole Single, Double and Triple includes Bolt Through and Desk Clamp mounting options

* Desk Clamp suits desktop thicknesses from 12 mm (0.5-Inch) - 38 mm (1.5-Inch)

* Bolt Through suits desktop thicknesses from 12 mm (0.5-Inch) - 40 mm (1.5-Inch)

* CABLE MANAGEMENT:

Cable Slot, Cable Clips and Cable Balls (included in package)

SPACEDEC:

The Spacedec range offers advanced, ergonomic flat screen mounting solutions for home, office, and other commercial applications with a wide range of size and weight options. Spacedec's range is perfectly engineered using the highest quality material, and smart features allows for the easy adjustment of monitor height, and viewing distance, all from a seated position.
