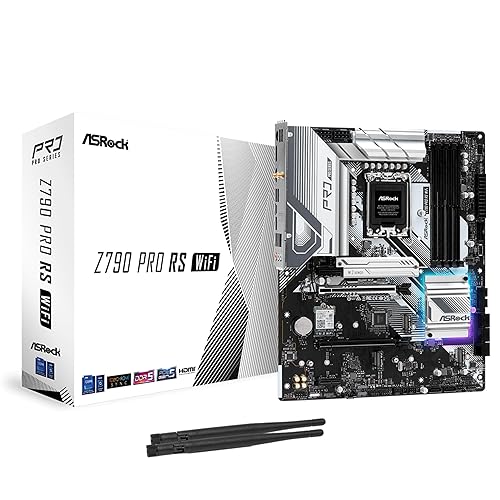

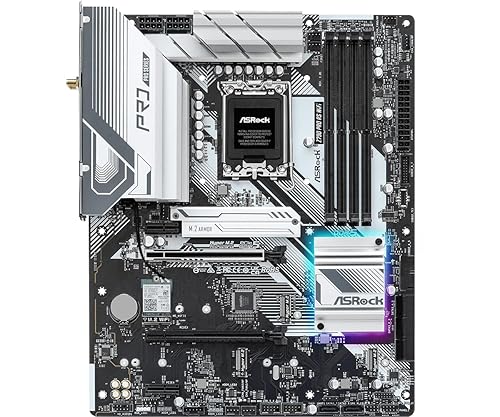

ASRock Z790 Pro RS WiFi, Intel 12th and 13th Generation CPU (LGA1700), Z790 Chipset, DDR5 ATX Motherboard
Model Number: Z790 PRO RS WIFI
ASRock Z790 Pro RS WiFi, Intel 12th and 13th Generation CPU (LGA1700), Z790 Chipset, DDR5 ATX Motherboard is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
ASRock Z790 Pro RS WiFi, Intel 12th and 13th Generation CPU (LGA170...
Socket: LGA1700 *Intel 12th and 13th generation CPU.
Chipset: Intel Z790
Form Factor: ATX
Memory Specification 1: 4 x DDR5 DIMM Slots
Memory Specification 2: Dual Channel DDR5 Memory Technology
- 4 x DDR5 DIMM Slots
- Supports DDR5 non-ECC, unbuffered memory up to 7200+(OC)*
- Max System Memory Capacity: 192GB
- Intel® Ultimate Memory Profile (XMP) Ready 3.0
*1DPC 1R up to 7200+ MHz (OC), 4800 MHz (Native)
1DPC 2R up to 6000+ MHz (OC), 4400 MHz (Native)
2DPC 1R up to 5600+ MHz (OC), 4000 MHz (Native)
2DPC 2R up to 4800+ MHz (OC), 3600 MHz (Native)
Power Phase: 14+1+1 Power Phase, 50A Dr.MOS for VCore+GT with Enlarged Heatsink Armor
GPU Function: Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only
with processors which are GPU integrated.
- Intel Xe Graphics Architecture (Gen 12)
Graphics Output: 1 x HDMI 1 x DisplayPort 1.4
PCIE: 1 PCIe 5.0 x16, 1 PCIe 4.0 x16
PCIe X1: 2 PCIe 3.0 x1
OC: Yes.
SLI:
CrossFire: Yes
Sound Function: Realtek ALC897 7.1 CH HD Audio Codec Nahimic Audio
USB 2.0: 8 USB 2.0 (4 Rear, 4 Front).
USB 3.2 Gen1 (USB 3.0) 5Gb/s 6 USB 3.2 Gen1 (2 Rear, 4 Front)
USB 3.2 Gen2 / Thunderbolt 310Gb/s 1 USB 3.2 Gen2 Rear Type-C 1 USB 3.2 Gen2 Rear Type-A
USB 3.2 Gen2 x 2 Type-C 20Gb/s 1 USB 3.2 Gen2 x 2 Front Type-C
[Thunderbolt 4(USB4.0)]-(br) [Thunderbolt 4 Header] -(br) [SATA3] 8
M.2 Slots: 4 Hyper M.2 (PCIe Gen4 x 4).
【M.2 Slot Heat Sink】-
M.2 Wifi: 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT).
Wireless LAN (Wi-Fi): 802.11ax Wi-Fi 6E Module
- IEEE 802.11a/b/g/n/ac/ax
Supports Dual-Band 2x2 with extended 6GHz band* support
LAN: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- Dragon RTL8125BG
- Supports Dragon 2.5G LAN Software
- Smart Auto Adjust Bandwidth Control
- Visual User Friendly UI
- Visual Network Usage Statistics
- Optimized Default Setting for Game, Browser, and Streaming Modes
- User Customized Priority Control
LED: Polychrome SYNC
Technical Standards Compliance Mark; Frequency band (5 GHz): W52 (5180 - 5240 MHz), W53 (5260 - 5320 MHz), W56 (5500 - 5720 MHz); Frequency band (2.4 GHz): 2412 - 2472 MHz; *Because of the regulatory conditions in different countries are different, Wi-Fi 6 GHz. Not activated. When Windows Update and software updates are available, (in supported country).
Z790 PRO RS WIFI
| Brand | ASRock |
| Manufacturer | ASRock |
| Model | 90-MXBL50-A0UAYZ |
| Model Name | Z790 Pro RS WiFi |
| Part Number | Z790 PRO RS WIFI |
| Memory storage capacity | 128 GB |
| Memory Slots Available | 4 |
| RAM Memory Maximum Size | 128 GB |
| RAM memory technology | DDR5 |
| Processor Socket Type | LGA 1700 |
| Compatible processor types | Intel Xeon |
| Graphics Card Interface | PCI Express |
| Compatible Devices | Intel 12th and 13th Generation Core Processors (LGA1700) |
| Chipset Type | Intel Z790 |
| Number of Items | 1 |
| Batteries included | No |
| Batteries Required | No |
| Wireless Standard | 802.11ax |
| Number of Ports | 23 |
| Total USB Ports | 17 |
| Form Factor | atx |
| Item model number | 90-MXBL50-A0UAYZ |
| Product Dimensions | 3.05 x 2.44 x 2.8 cm; 1.2 kg |
| ASIN | B0BM38QB9W |
| Batteries | 1 9V batteries required. |
| Date First Available | Nov. 17 2022 |
| Customer Reviews | 4.44.4 out of 5 stars 27 ratingsvar dpAcrHasRegisteredArcLinkClickAction; P.when('A', 'ready').execute(function(A) {if (dpAcrHasRegisteredArcLinkClickAction !== true) { dpAcrHasRegisteredArcLinkClickAction = true; A.declarative('acrLink-click-metrics', 'click',{ "allowLinkDefault": true },function (event) { if (window.ue) {ue.count("acrLinkClickCount", (ue.count("acrLinkClickCount") || 0) + 1); }} );} });P.when('A', 'cf').execute(function(A) {A.declarative('acrStarsLink-click-metrics', 'click', { "allowLinkDefault" : true }, function(event){ if(window.ue) {ue.count("acrStarsLinkWithPopoverClickCount", (ue.count("acrStarsLinkWithPopoverClickCount") || 0) + 1); }}); }); 4.4 out of 5 stars |
| Best Sellers Rank | #96,052 in Electronics (See Top 100 in Electronics) #969 in Computer Motherboards |
| Brand | ASRock |
| CPU socket | LGA 1700 |
| Compatible devices | Intel 12th and 13th Generation Core Processors (LGA1700) |
| RAM memory technology | DDR5 |
| Compatible processors | Intel Xeon |
| Chipset type | Intel Z790 |
| Memory clock speed | 3600 MHz |
| Platform | Windows |
| Model name | Z790 Pro RS WiFi |
| Memory storage capacity | 128 GB |
