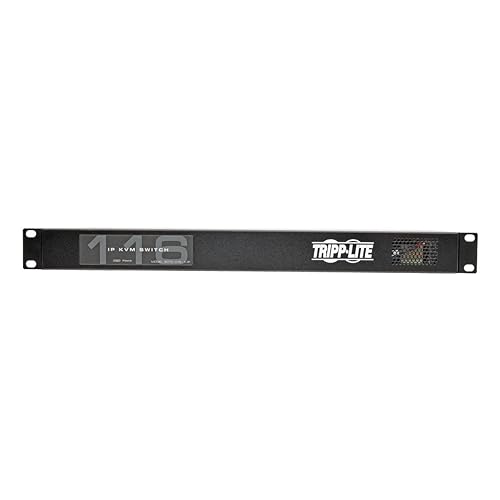

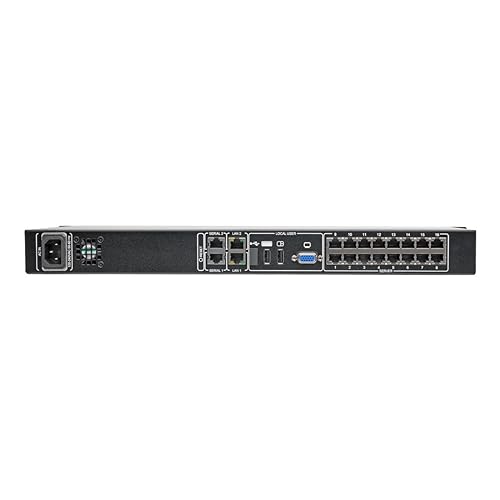

16-Port 1U Rackmount CAT5 KVM 16-Port 1 Local + 1 Remote User

AMAZON.CA PRODUCT DESCRIPTION

Tripp Lite's 16-Port NetCommander Cat5 IP KVM switch is the optimal solution for controlling multiple computers from either a local console or a remote location. Simultaneous support is provided for up to one local and one remote user, allowing each to access a different port on the KVM at the same time. A single unit occupies a mere 1U of rack space, yet can control up to 16 directly connected computers. Each computer/server can be located up to 100 ft. from the KVM switch using Cat5e/6 cabling, with support for video resolutions up to 1920 x 1080 at 60Hz. A full-screen graphical OSD with multi-level authentication (Administrator and User) allows you to quickly and efficiently manage your installation. Allows for remote authentication via RADIUS and LDAP/S, and supports both IPv4 and IPv6. The OSD includes a range of settings for system configuration that allow you to add accounts, customize account access, install a SSL certificate, backup and restore system settings, upgrade firmware, and more. Accessing the connected computers is a breeze; a wide range of video and mouse sync settings ensure optimal remote session performance in any situation. In addition to ports for computers/servers, two serial ports are provided for the connection and control of serial manageable devices such as PDU's, firewalls, and routers. IP PDU's can be added as devices to be controlled by the KVM, and individual KVM ports can be assigned to a PDU port, giving you the ability to Power Cycle or Power Off/On the computer/server connected to that port. Additionally, Virtual Media allows an .iso file located in a Shared folder of a SAMBA or NFS server to be mounted to a Target Server and accessed as if it were directly stored on it. Virtual Media data transfer rates up to 12Mbps (B078-101-USB2 required) are supported. A B078-101-USB-1 can be used to provide Virtual Media support, but only at speeds up to 1Mbps. 3-year limited warranty.

FROM THE MANUFACTURER

Tripp Lite's B072-016-1-IP NetCommander� 16-Port Rackmount Cat5 KVM Switch is the smart solution for controlling multiple computers and servers from one monitor, keyboard and mouse. Requiring just 1U of rack space, the B072-016-1-IP features a rugged housing, premium connectors and superior functionality to ensure trouble-free operation in demanding high-availability environments. The B072-016-1-IP can control sixteen servers/computers directly, or up to 256 by cascading additional KVM switches. It is compatible with both PS/2 and USB connections using Tripp Lite B078-101-Series server interface units and inexpensive Cat5 patch cables (available separately). Built-in IP access capability enables servers/computers to be controlled from any location via LAN, WAN or Internet.

KEY FEATURES

B072-016-1-IP NETCOMMANDER� 16-PORT RACKMOUNT CAT5 KVM SWITCH OFFERS:

* Manage an entire network with one keyboard, mouse and monitor from 1U of rack space

* Control up to 256 computers/servers remotely via LAN, WAN or Internet

* Supports VGA video resolutions up to 1600 x 1200

* Connects to PS/2 and USB computers and servers using inexpensive Cat5 cabling

* Supports all major operating systems*

* Mac not supported over IP.

All-in-One Network Management for Critical Systems

Click here for a larger image Simple, Flexible Network Control

Click here for a larger imageALL-IN-ONE NETWORK MANAGEMENT FOR CRITICAL SYSTEMS

The B072-016-1-IP offers a comprehensive, cost-effective network management solution that installs in 1U of rack space. No server-resident software is required, so server performance and reliability are never compromised. Upgradable firmware fine-tunes compatibility with emerging standards. Servers are connected to the switch using inexpensive Cat5 patch cables, reducing cable clutter and conserving valuable rack space.

SUPPORTS MULTIPLE PLATFORMS

The B072-016-1-IP supports both PS/2 and USB connections (Tripp Lite B078-101-Series server interface units and Cat5 patch cables required; sold separately). Because compatibility is based on common hardware standards rather than system software dependencies, almost any platform can be accommodated. Connect multiple versions of multiple platforms in any combination, including Windows�, Mac�*, UNIX�, Linux, Sun and DOS.

* Mac not supported over IP.

SIMPLE, FLEXIBLE NETWORK CONTROL

The B072-016-1-IP is designed to ease multi-server management in data centers, server rooms and other high-density environments. An advanced on screen display (OSD) with high-resolution video up to 1600 x 1200 provides a graphical user interface with management tools including custom port labeling, auto-scanning and panel array mode. Users may also select a connected computer using on-console pushbuttons or keyboard hotkey commands. Two LEDs per KVM port indicate (1) when a computer is connected to a KVM port and powered on, (2) when no computer is connected to the KVM port or the connected computer is not powered on, and (3) when a connected, powered-on computer is selected.

CONTROL MULTIPLE COMPUTERS

The B072-016-1-IP assures BIOS-level control of any server, regardless of server condition or network connectivity status, and covers the entire spectrum of crash scenarios. It can extend this level of control to up to 256 servers/computers by cascading additional B072-Series KVMs. This gives network managers the flexibility to add capacity when it's needed, accommodating growing data center requirements without disrupting existing equipment.

B072-016-1-IP Expansion Diagram

Click here for a larger image B072-016-1-IP Access Servers Diagram

Click here for a larger imageACCESS SERVERS ANYWHERE WITH BUILT-IN IP REMOTE ACCESS CAPABILITY

The B072-016-1-IP provides secure IP remote access to connected servers/computers without requiring additional rack space. IP remote access enables system administration, BIOS-level troubleshooting, GUI application installations, equipment reboots and more to be accomplished from any location using a standard Web browser or multi-platform client software. Multiple users are able to view remote sessions simultaneously, and remote control can be transferred between users with appropriate permissions.

SECURE EVERY CONNECTION

The B072-016-1-IP supports the highest security standards for encryption (128-bit SSL and HTTPS) and authentication for remote users.

PEACE OF MIND

The B072-016-1-IP comes with a 1-year warranty.

ADDITIONAL KVM ACCESSORIES (SOLD SEPARATELY)

To connect servers/computers to the KVM: one Tripp Lite B078-101-Series server interface unit and one Cat5 patch cable per server/computer are required (see below). To cascade from the B072-016-1-IP: additional B072-016-1 or B072-008-1 KVM switches, server interface units and Cat5 cables; consult the owner's manual for detailed information about daisy-chain configurations. Rackmount console: Tripp Lite model B021-000-17 or B021-02R-17 (see below).

TECHNICAL SPECIFICATIONS

TRIPP LITE B072-016-1-IP NETCOMMANDER� 16-PORT RACKMOUNT CAT5 KVM SWITCH

Click here for a larger image Model: B072-016-1-IP Users: 1 Maximum video resolution: 1600 x 1200 KVM ports: 16 x RJ45 External console ports: 1 x HD15, 2 x PS/2 Firmware upgrade port: 1 x RJ11 Maximum CPU control: 256 units (with cascading) Dimensions (HWD): 1.75 x 17.0 x 9.0 in. (1U) Weight: 4.9 lb. Material of construction: Metal housing OS compatibility: Windows�, Mac�*, UNIX�, Linux, Sun, DOS Agency approvals: CE

RoHS

TAA compliant Warranty: 1 year * Mac not supported over IP.

WHAT'S IN THE BOX

* B072-016-1-IP Rackmount KVM Switch

* 1 x RJ11 to DB9 Firmware Upgrade Cable

* 1 x 6-ft. C13 to 5-15P Power Cord

* Rackmounting Hardware

* Owner's Manual CD & Quick Start Guide

NETWORK CONTROL SOLUTIONS FROM TRIPP LITE

Tripp Lite UPS offers a wide range of products to provide reliable, cost-effective network control solutions for network data centers and other IT applications.

P078-101-SERIES SERVER INTERFACE UNITS

Connect a USB or PS/2 server/computer to a Tripp Lite B070- or B072-series KVM switch utilizing inexpensive Cat6/Cat5eCat5 cabling (available separately). Eliminate the need for bulky KVM cable kits and enable the KVM to be located up to 100 feet from connected servers/computers. Require no special software or external power supply.

B078-101-USB � B078-101-PS/2

These server interface modules are compatible with all Tripp Lite B070- and B072-series KVM switches.

N105-SERIES CAT5E 350MHZ MOLDED SHIELDED PATCH CABLES (RJ45 M/M)�GRAY

Premium Cat5 cables protect against EMI/RFI interference in network environments. Shielded RJ45 connectors with 50-micron gold-plated contacts; 4-pair 24 AWG stranded STP with drain wire. Rated for 350MHz/1Gbps communication. Molded boot for extra strain relief and durability. TIA/EIA and UL certified. Available in 7-, 10, 25-, 50- and 100-ft. lengths. Lifetime warranty.

N105-007-GY � N105-010-GY � N105-025-GY � N105-050-GY � N105-100-GY

Wide selection of Cat5 cables in other colors and lengths available.

B021-000-17 RACKMOUNT CONSOLE

Provides a complete network control system in just 1U of rack space. The B021-000-17 includes a keyboard, 17-in. LCD screen and touch pad in a 1U slide-out unit, and is compatible with any KVM switch or server equipped with PS/2 connectors. 1-year warranty.

B021-02R-17 DUAL-RAIL RACKMOUNT CONSOLE

Provides a complete network control system in just 1U of rack space. The B021-000-17 includes a keyboard, 17-in. LCD screen and touch pad in a 1U slide-out unit. Dual-rail design enables the keyboard to be stored in the rack while the LDC screen remains visible. Compatible with any KVM switch or server equipped with USB or PS/2 connectors. 1-year warranty.

SR42UB SMARTRACK� ENCLOSURE

Premium 42U rack enclosure with doors and side panels. The SR42UB features locking, removable, reversible front and rear doors; locking, removable side panels keyed alike with doors; 4 interior vertical posts with unthreaded square-hole openings; preinstalled casters and leveling feet; and 3000-lb. stationary/2250-lb. rolling load capacity. The SR42UB ships fully assembled and comes with a 5-year repair/replacement warranty. A full range of rackmount accessories is also available.

SMART2200RMXL2U SMARTPRO� UPS SYSTEM

Advanced automatic voltage regulation and battery backup protection for mission-critical servers, storage devices and telecom equipment in 2U of rack space. The SMART2200RMXL2U provides 2200VA/1600W power capacity with 8 outlets including 3 outlets that are individually controllable for remote equipment reboots or load shedding. USB and DB9 ports, an SNMP accessory slot and PowerAlert monitoring software provide complete power network monitoring and control. The SMART2200RMXL2U supports connected equipment for 16 minutes during power failures at a half load of 800 watts. Runtime is expandable with optional external battery packs, sold separately. $250,000 Ultimate Lifetime Insurance; 2-year warranty.
