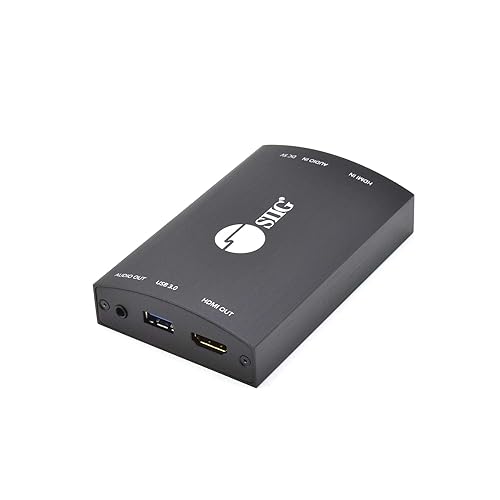

SIIG CE-H26H11-S1 USB 3.0 HDMI Video Capture Dev

Specifications:

Chipset: IT6663FN

HDMI Bandwidth: Single-link 600MHz (18Gbps)

Video Bandwidth: Up to 350MBps (USB 3.0)

Input resolution: Up to 4K@60Hz YUV 4:4:4

Recording mode: H.264 (Software compression)

Recording video format: YUY2 (USB 3.0) / MJPG (USB 2.0 / 3.0)

Software compatibility: OBS Studio (Windows, Linux), AMCap (Windows), Potplayer (Windows)¸VLC (OS X, Linux), XSplit Boardcast (Windows), Skype (Windows, OS X), Zoom (Windows), Hangout (Windows), TeamViewer (Windows)

ESD protection: Human body model ±15KV (air-gap discharge); ±8KV (contact discharge)

Product:

Dimensions: 4.13" (L) x 0.94" (W) x 2.68" (H)

Weight: 0.28 lbs

Color: Black

Housing material: Aluminum

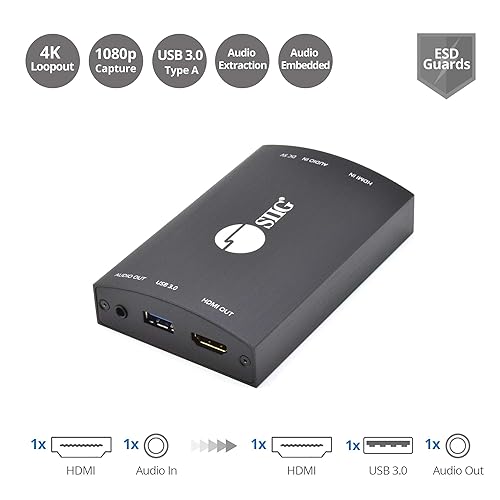

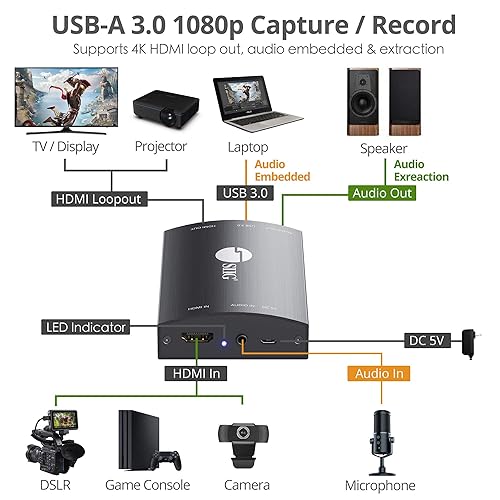

Connectors:

1x 19-pin HDMI, Female, Input

1x 19-pin HDMI, Female, Loop-out

1x 9-pin USB 3.0, Type-A, Female, To PC system

1x 3.5mm jack, Audio, Input

1x 3.5mm jack, Audio, Output

1x 5-pin, Micro USB, Power jack

Power adapter:

Input: 100-240VAC, 50/60 Hz

Output: DC 5V/2A

UL Listed: E135856 /Level: VI

Environmental conditions:

Operating temperature: 32 to 104 degrees F

Storage temperature: -4 to 140 degrees F

Relative humidity: 20 to 90% RH (non-condensing)

Certifications/Standards: FCC, CE, RoHS

TAA compliant

Country of origin: Taiwan

System Requirements:

Desktop PC with one available USB 3.0 port

Windows® 10 / 8.1 / 7

MacOS® and Linux

Package contents:

USB 3.0 HDMI Video Capture Device with 4K Loopout

USB 3.0 A to A cable

Power adapter

Quick start guide

CE-H26H11-S1
