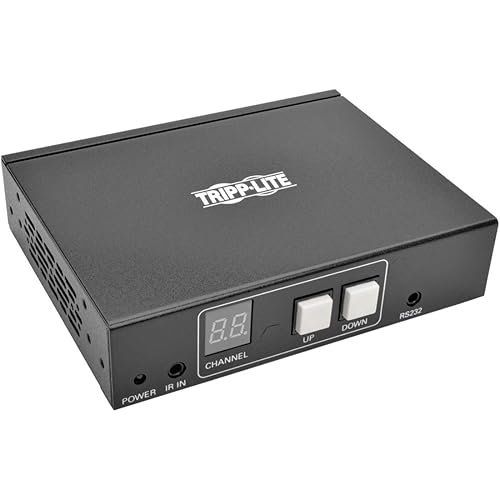

Tripp Lite DisplayPort Over IP Receiver/Extender Cat5 / Cat6 with RS-232 Serial & IR Control 1080p 100M TAA (B160-100-DPSI)
Model Number: B160-100-DPSI
Tripp Lite DisplayPort Over IP Receiver/Extender Cat5 / Cat6 with RS-232 Serial & IR Control 1080p 100M TAA (B160-100-DPSI) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Tripp Lite DisplayPort Over IP Receiver/Extender Cat5 / Cat6 with R...
AMAZON.CA PRODUCT DESCRIPTION
The B160-100-DPSI DisplayPort audio/video with RS-232 serial and IR control over IP receiver extends and distributes DisplayPort audio/video, RS-232 serial and IR (infrared) remote signals through a dedicated Ethernet network switch located up to 328 feet (100 M) away. With an additional 328 feet between the switch and the transmitter (sold separately), the total maximum distance from source to display is 656 feet (200 M). the B160-100-DPSI is designed for managed network switches with igmp, which allow login and remote management via switch interface. You can connect up to 64 transmitters and 255 receivers in a single managed switch installation. The B160-100-DPSI supports video resolutions up to 1920 x 1080 (1080p) at 60 Hz. It Works with any analog or digital source, including HDMI and VGA. It extends IR control signals that control a source, such as a Blu-ray player, from a remote display, as well as RS-232 signals at serial baud rates up to 57600 bps. Compatible with Tripp Lite b160-001-dpsi, b160-001-hdsi and b160-001-vsi transmitters. 1-Year limited warranty
FROM THE MANUFACTURER
1 Output Device - 656.17 ft Range - 1 x Network (RJ-45) - DisplayPort - Serial Port - Full HD - 1920 x 1080 - Twisted Pair - Category 6 - Wall Mountable, Rack-mountable, Pole-mountable - TAA Compliant.
B160-100-DPSI
| Brand | TRIPP LITE |
| Manufacturer | Tripp Lite |
| Place of Business | CHICAGO, IL, 60609 US |
| Model | B160-100-DPSI |
| Model year | 2017 |
| Part Number | B160-100-DPSI |
| Compatible Devices | Devices with DisplayPort output and RS-232 or IR control capabilities |
| Special features | DisplayPort Over IP, RS-232 Serial & IR Control, Network Switch Integration, Multi-Device Connectivity |
| Mounting Hardware | Receiver unit^External power supply w/NEMA 1-15P plug (Input: 100–240V, 50/60 Hz, 0.5A; Output: 5V, 2A)^Plug adapters for U.S., U.K., Europe and Australia^IR-In cable^3.5 mm to DB9 adapter cable (M/M)^Mounting hardware^Owner’s manual |
| Number of Items | 1 |
| Batteries included | No |
| Batteries Required | No |
| Connector Type | rs 232 |
| Does it contain liquid? | No |
| Item model number | B160-100-DPSI |
| Product Dimensions | 25.65 x 16 x 5.33 cm; 771.11 g |
| ASIN | B01MTANMQ4 |
| Date First Available | Jan. 24 2017 |
| Customer Reviews | 3.43.4 out of 5 stars 4 ratings3.4 out of 5 stars |
| Is discontinued by manufacturer | No |
| Brand | TRIPP LITE |
| Special feature | (function(f) {var _np=(window.P._namespace("DetailPageProductOverviewTemplatesJava"));if(_np.guardFatal){_np.guardFatal(f)(_np);}else{f(_np);}}(function(P) { P.when('A').execute(function(A){ A.on('a:truncate:po-attribute-truncate-1:updated', function(data) { var isTruncated = !data.truncateInstance.getIfTextFits(); var seeMoreElement = document.getElementById('po-attribute-see-more-id-1'); if(seeMoreElement) { seeMoreElement.style.display = isTruncated ? '' : 'none'; } }) });})); DisplayPort Over IP, RS-232 Serial & IR Control, Network Switch Integration, Multi-Device Connectivity See more |
| Connector type | RJ45 |
| Colour | Black |
| Included components | (function(f) {var _np=(window.P._namespace("DetailPageProductOverviewTemplatesJava"));if(_np.guardFatal){_np.guardFatal(f)(_np);}else{f(_np);}}(function(P) { P.when('A').execute(function(A){ A.on('a:truncate:po-attribute-truncate-4:updated', function(data) { var isTruncated = !data.truncateInstance.getIfTextFits(); var seeMoreElement = document.getElementById('po-attribute-see-more-id-4'); if(seeMoreElement) { seeMoreElement.style.display = isTruncated ? '' : 'none'; } }) });})); Receiver unit^External power supply w/NEMA 1-15P plug (Input: 100–240V, 50/60 Hz, 0.5A; Output: 5V, 2A)^Plug adapters for U.S., U.K., Europe and Australia^IR-In cable^3.5 mm to DB9 adapter cable (M/M)^Mounting hardware^Owner’s manual See more |
| Item weight | 771 g |
| Compatible devices | Devices with DisplayPort output and RS-232 or IR control capabilities |
| Frequency bands supported | 2.4 GHz, 5 GHz |
| Range | 328 feet |
| Manufacturer | Tripp Lite |
