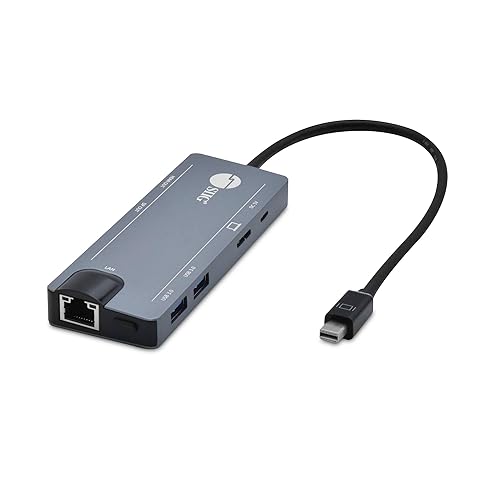

SIIG JU-H30F11-S1 Mini DP 4K Video Dock LAN Hub

Specifications:

Chipset: AX88179QF

Compliant with Universal Serial Bus 3.0 specification and backward compatible with USB 2.0

Compliant with DP 1.2 and HDMI 1.4

Video bandwidth: Up to 21.6Gbps for Mini DP and 10.2Gbps for HDMI

Resolution:

Mini DisplayPort: Up to 4K@60Hz

HDMI: Up to 4K@30Hz

Note: Only one video output can be used at any one time, either HDMI or DP. DOES NOT support both video outputs simultaneously

Gigabit Ethernet:

Supports up to 1000 Mb/s data transfer rate and is backward compatible with 10/100 Mb/s

Supports IEEE 802.3x full duplex operation

Compatible with IEEE 802.3, 802.3u

USB 3.0:

Up to 5Gbps data transfer rate

Requires plugging into a computer's USB 3.0 port via included USB 3.0 Type-A to Micro-B USB cable

Product:

Overall length (including the embedded cable): 12.00" (305±10mm)

Dimensions: 4.77" (L) x 0.70" (H) x 1.83" (W)

Weight: 0.18 lbs

Color: Gray

Housing material: ABS

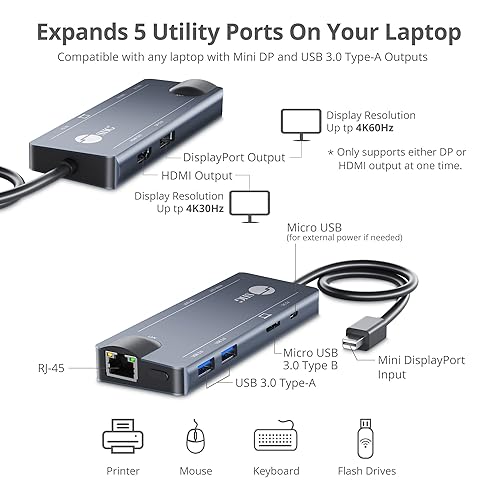

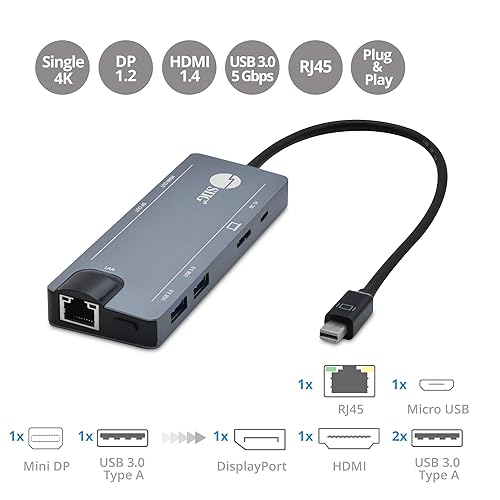

Connectors:

1x 20-pin, Mini DP, Male, Input

1x 9-pin, Micro-B USB 3.0, Female, Input

1x 20-pin, Mini DP, Female, Output

1x 19-pin, HDMI Type-A, Female, Output

2x 9-pin, USB 3.0 Type-A, Female, Output

1x 8-pin, RJ45, Network, Female, Output

1x 5-pin USB 2.0 Micro-B, Female, power input (optional)

Environmental conditions:

Operating temperature: 32 to 104 degrees F

Storage temperature: -4 to 140 degrees F

Relative humidity: <20% to 90% RH (non-condensing)

Certifications/Standards: FCC, CE, RoHS, TAA compliant

Country of origin: Taiwan

System Requirements:

Intel® CoreTM Duo 2.0 GHz CPU or faster

Desktop or laptop with an available Mini DisplayPort and USB 3.0 port

Windows® 10 / 8.1 / 8 / 7 (32-/64-bit)

macOS® 10.9 to 10.15,(not recommended for use with macOS 11)

JU-H30F11-S1
