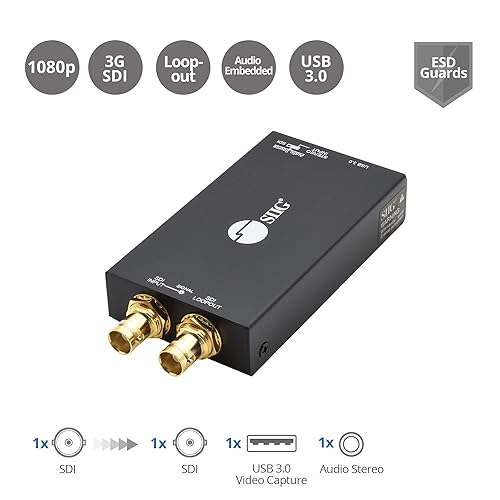

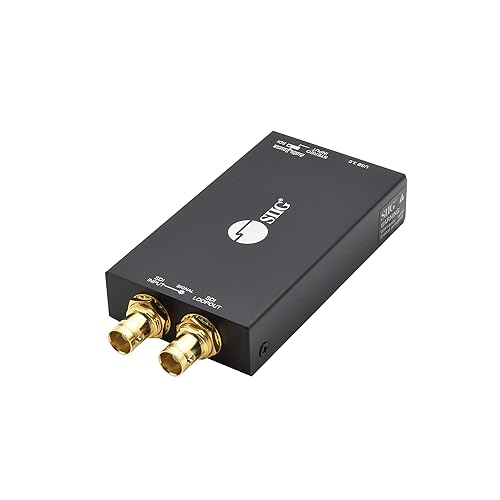

SIIG CE-SD0K11-S1 USB 3.0 3G-SDI CAPTURE DEVICE
Model Number: CE-SD0K11-S1
SIIG CE-SD0K11-S1 USB 3.0 3G-SDI CAPTURE DEVICE is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
SIIG CE-SD0K11-S1 USB 3.0 3G-SDI CAPTURE DEVICE
Specifications:
Chipset: EJ511
Version: USB 3.0
Input Video Bandwidth: 2.970 Gbps, 2,970/1.001 Gbps
Output Video Bandwidth: Up to 350MBps (USB 3.0)
Video resolution: Up to 1080p@60Hz
Recoding mode: H.264 (Software compression)
Recoding Video Format: YUY2 (USB 3.0) / MJPG (USB 2.0 / 3.0)
Audio Input: SDI Embedded Audio & Stereo Audio input
Audio Format: 2 Channel, 44.1 and 48KHz sample rate, up to 16bit PCM
Software compatibility: OBS Studio (Windows, Linux), AMCap (Windows), Potplayer (Windows), Skype (Windows, OS X), Hangout (Windows), TeamViewer (Windows)
ESD protection: Human body model ±15KV (air-gap discharge); ±8KV (contact discharge)
Product:
Dimensions: 4.86" (L) x 0.79" (H) x 2.18" (W)
Weight: 0.37 lbs
Color: Black
Housing material: Metal

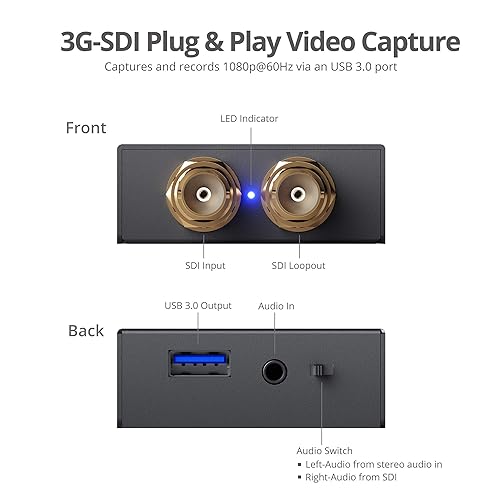

Connectors:

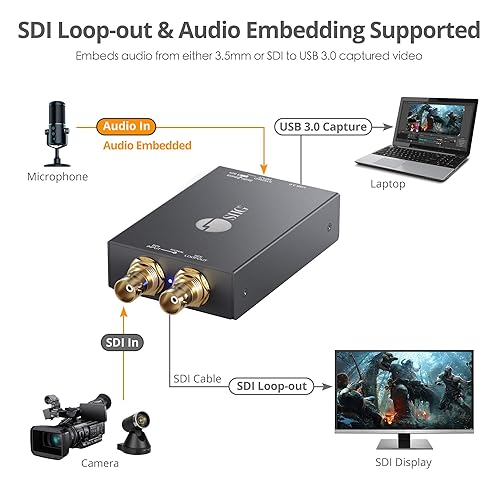

1x SDI, Video input
1x SDI, Video Loop-out
1x 3.5mm Audio input
1x USB 3.0 Type-A, Female for PC and FW update
1x Slide Switch, Audio mode selection
Environmental conditions:
Operating temperature: 32 to 104 degrees F
Storage temperature: -4 to 140 degrees F
Relative humidity: 20 to 90% RH (non-condensing)
Certifications/Standards: FCC, CE, RoHS
TAA compliant
Warranty: 3 years limited
Country of origin: Taiwan
System Requirements:
Desktop PC with one available USB 3.0 port
Windows® 10 / 8.1 / 7 (32-/64-bit)
macOS® 10.15 / 11
Package contents:
USB 3.0 3G-SDI Capture Device with Loopout
USB 3.0 A to A cable
Quick Start Guide
CE-SD0K11-S1
| Brand | SIIG |
| Manufacturer | SIIG |
| Model | CE-SD0K11-S1 |
| Part Number | CE-SD0K11-S1 |
| Hardware interface | USB |
| Mounting Hardware | Cable |
| Video capture resolution | 1080p |
| Batteries included | No |
| Batteries Required | No |
| Item model number | CE-SD0K11-S1 |
| Product Dimensions | 5.54 x 12.34 x 2.01 cm; 167.83 g |
| ASIN | B08WHQ7XCZ |
| Date First Available | Feb. 16 2021 |
| Brand | SIIG |
| Maximum supply voltage | 5.5 Volts |
| Interface type | SDI, USB |
| Number of channels | 2 |
| Product Dimensions | 12.3L x 5.5W Centimetres |
| UPC | 662774044729 |
| Manufacturer | SIIG |
