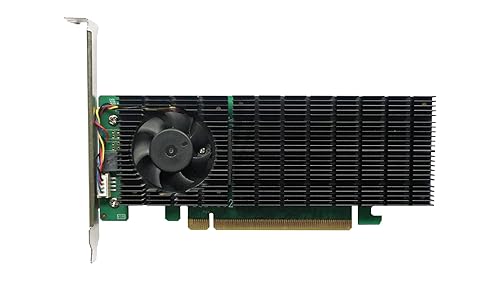

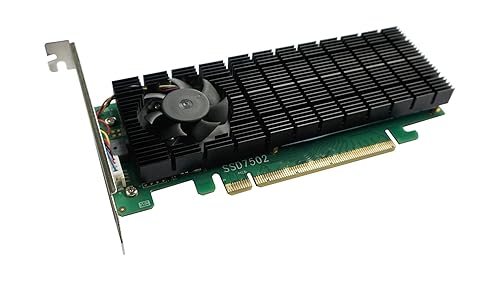

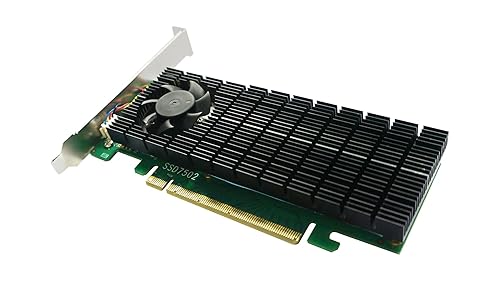

Highpoint SSD7502 PCIe 4.0 x16 2-Port M.2 NVMe RAID Controller 2-Port M.2 SSD7502 Individual Retail PCIe 4.0 x16

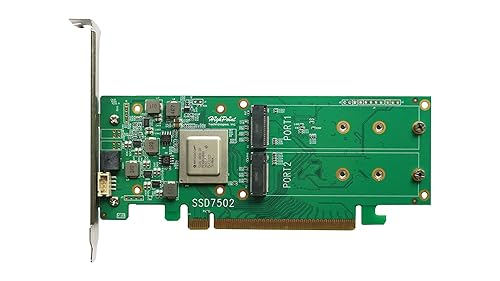

Industry's Fastest Dual-Port PCIe NVMe RAID Controller: The SSD7502 is the industry's fastest Dual-Port PCIe Gen4 RAID controller, & features bootable RAID support for Windows and Linux based platforms. The low-profile SSD7502 incorporates a state of the art Gen4 PCIe Switch Chipset to ensure each M.2 port has x4 lanes of dedicated bandwidth.Cutting-Edge PCIe Gen4 High-Speed Intelligent Switch Chipset: The SSD7502 incorporates Broadcom's Next-Gen PCIe 4.0 switch chipset, which ensures maximum transfer bandwidth is available for each device port, at all times. The SSD7502 is capable of delivering up to 14,000MB/s of transfer performance using just two Gen4 M.2 NVMe SSD'S!Universal Compatibility: The SSD7502 can be installed into any computing platform with an industry-standard PCIe 4.0 or 3.0 x16 slot. Like all SSD7500 series NVMe RAID controllers, the SSD7502 does not require a host platform with Bifurcation support, & is not dependent on a specific brand or model of motherboard.Bootable RAID Solution for Linux & Windows: The SSD7502 can be used to configure bootable RAID or single NVMe SSD configurations for Windows & Linux systems. Optional UEFI downloads & complete installation guides are available for each supported platform. RAID 0 (Rapid Boot) - Also known as a “stripe” array, this mode delivers Maximum Performance and capacity by linking multiple NVMe SSD's together to act as a single storage unit.RAID 1 (Secure Boot) - This mode creates a hidden duplicate of the target SSD, and is ideal for bootable volumes.Gen4 Hyper-Cooling System: Ultra-Efficient, low-Noise Cooling Solution designed specifically for Gen4 NVMe SSD's. Maximizing Gen4 NVMe storage performance without the proper implementation of modern cooling apparatus is a risky proposition. PCIe 4.0 devices and NVMe SSD’s generate considerable heat under heavy load. To combat the threat of overheating, SSD7500 Series RAID controllers are equipped with our innovative Gen4 NVMe Hyper-Cooling System, which combines an anodized aluminum heat sink, ultra-durable near-silent fan and high-conductivity thermal pad."Hyper-Cooling" refers to this unique design's ability to rapidly transfer waste heat away from critical NVMe and controller componentry to ensure your NVMe SSD’s consistently operate within their recommended temperature thresholds, even under sustained heavy I/O.

SSD7502

Hard Drive	‎Solid State Drive
Brand	‎HighPoint
Item model number	‎SSD7502
Operating System	‎Linux: RHEL/Debian/Ubuntu/Proxmox/Fedora/XenProject (Linux Kernel 3.10 and later); Arch Linux (Kernel 5.17.5 and above); Only supports 64-bit operating system., Windows: Windows 11 and 10, Windows Server 2022/2019/2016/2012 R2, Microsoft Hyper-V; Only supports 64-bit operating system, macOS: macOS 10.13 - macOS Monterey 12.x
Item Weight	‎13.1 ounces
Product Dimensions	‎0.8 x 6.57 x 2.72 inches
Item DimensionsLxWxH	‎0.8 x 6.57 x 2.72 inches
Manufacturer	‎HighPoint Technologies, Inc.
ASIN	‎B092F1DFH7
Date First Available	‎April 13, 2021
Customer Reviews	2.02.0 out of 5 stars 1 rating2.0 out of 5 stars
Best Sellers Rank	#92 in RAID Controllers
Brand	HighPoint
Hardware Interface	PCI
Style	2-Port M.2 SSD7502
Item Weight	371.95 Grams
Compatible Devices	Personal Computer
