HighPoint SSD7120 NVMe 4-Port M.2/U.2 Unbeatable Performance/Comprehensive Selection; No Motherboard Bifurcation Required
Model Number: SSD7120
HighPoint SSD7120 NVMe 4-Port M.2/U.2 Unbeatable Performance/Comprehensive Selection; No Motherboard Bifurcation Required is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
HighPoint SSD7120 NVMe 4-Port M.2/U.2 Unbeatable Performance/Compre...

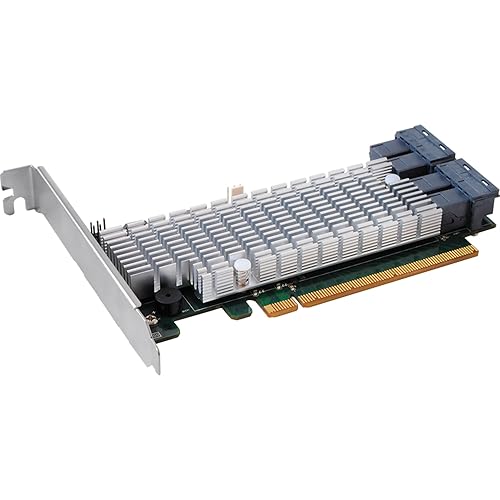

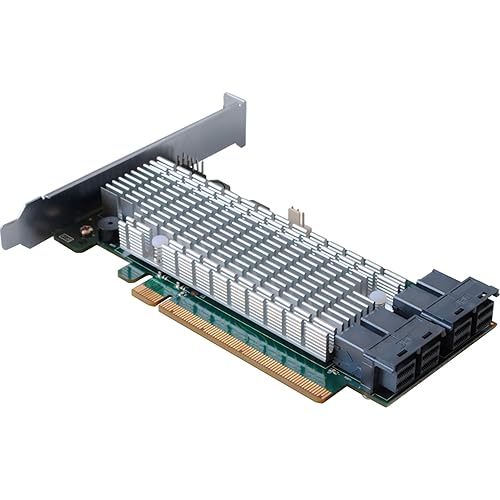

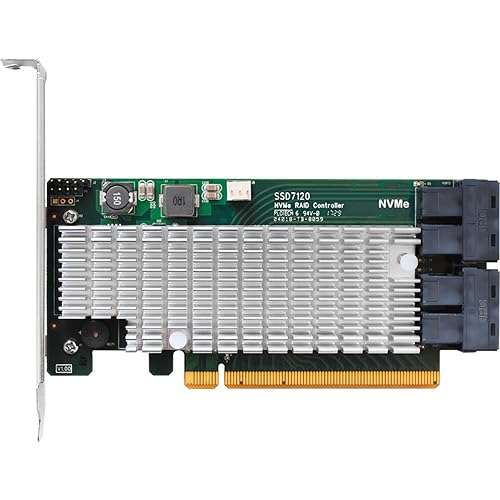

Ultra-High Performance, Flexible NVMe U.2 RAID Controller - Designed for high-end desktop & workstation platforms, the SSD7120 is capable of delivering transfer performance up to 8x faster than onboard NVMe solutions and up to 44x faster than SATA SSD's. The SSD7120's unique hardware architecture provides dedicated PCIe 3.0 x4 (32Gb/s) bus bandwidth for each SSD, and unlocks the true performance potential of NVMe based storage configurations. The U.2 ports are compatible a wide range of 2.5" rackmount chassis in today's marketplace and simplify upgrade and maintenance procedures.
Dedicated PCIe 3.0 x16 Shatters the DMI Performance Bottleneck - Unlike onboard DMI 3.0 based NVMe solutions, which are forced to share a single PCIe 3.0 x4 lane with the motherboard's SATA & USB ports, the SSD7120 features dedicated PCIe 3.0 x16 bus bandwidth, which allows each SSD to interface directly with the platform's CPU.
Independent, Stand-Alone NVMe SSD Solution - All SSD7100 Series RAID controllers are fully independent NVMe RAID solutions, and are not tethered to specific motherboards or chipset families; any system sporting a free PCIe 3.0 x16 slot with direct access to the CPU is fair game.
NVMe RAID Management with Integrated TRIM & S.M.A.R.T. Monitoring & TBW Tracking - The NVMe Manager portion of the RAID Management interface features TRIM support, and S.M.A.R.T. monitoring with total Terabyte Written (TBW) tracking. TRIM support promotes the longevity and endurance of NVMe storage by enabling each SSD to handle garbage collection more efficiently, which helps eliminate write speed degradation. S.M.A.R.T. monitoring allows you to check a variety of attributes for each NVMe SSD, including temperature, voltage & TBW.
Scalable Performance Across Multiple RAID Controllers - Multiple SSD7120 NVMe RAID controllers can be linked and installed into a single system, and deliver up to 256Gb/s of performance - 8x faster than NVMe drives locked behind Intel DMI 3.0.
SSD7120
| Brand | HighPoint |
| Item model number | SSD7120 |
| Operating System | Linux: RHEL/Debian/Ubuntu/Proxmox/Fedora/XenProject (Linux Kernel 3.10 and later); Arch Linux (Kernel 5.17.5 and above); Only supports 64-bit operating system., Windows: Windows 11 and 10, Windows Server 2022/2019/2016/2012 R2, Microsoft Hyper-V; Only supports 64-bit operating system, macOS: macOS 10.13 ~ macOS Monterey 12.x |
| Item Weight | 8.5 ounces |
| Product Dimensions | 5.97 x 0.06 x 2.68 inches |
| Item DimensionsLxWxH | 5.97 x 0.06 x 2.68 inches |
| Flash Memory Size | 32 GB |
| Manufacturer | HighPoint Inc. -- Dropship |
| Language | English, English, English, English |
| ASIN | B0774WLSH4 |
| Is Discontinued By Manufacturer | No |
| Date First Available | November 2, 2017 |
| Best Sellers Rank | #565 in RAID Controllers |
| Brand | HighPoint |
| Hardware Interface | PCI Express 3.0 |
| Style | SSD7120 |
| Item Weight | 8.48 ounces |
| Compatible Devices | (function(f) {var _np=(window.P._namespace("DetailPageProductOverviewTemplatesJava"));if(_np.guardFatal){_np.guardFatal(f)(_np);}else{f(_np);}}(function(P) { P.when('A').execute(function(A){ A.on('a:truncate:po-attribute-truncate-4:updated', function(data) { var isTruncated = !data.truncateInstance.getIfTextFits(); var seeMoreElement = document.getElementById('po-attribute-see-more-id-4'); if(seeMoreElement) { seeMoreElement.style.display = isTruncated ? '' : 'none'; } }) });})); Devices with PCI Express 3.0 x16 slot and compatible operating systems (Windows 10, macOS 10.12 or later, and Linux 3.3 or later) See more |
