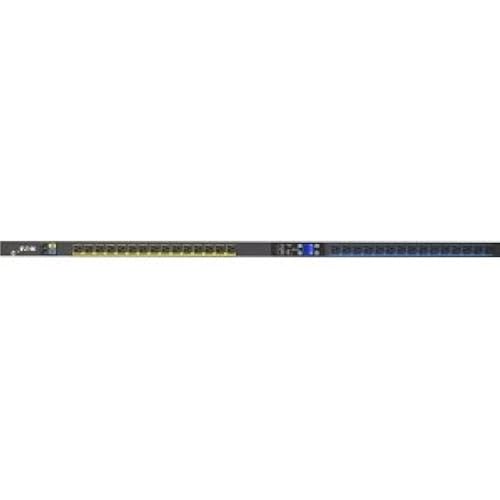

Eaton Metered Input rack PDU, 0U, L5-30P input, 2.88 kW max, 120V, 24A, 10 ft cord, Single-phase, Outlets: (30) 5-20R - NEMA L5-30P - 24 x NEMA 5-20R - 120 V AC - 2880 W - Network (RJ-45) - 38U - Rack-mountable

Product Features:PRODUCT SPECIFICATIONSManufacturer:Eaton CorporationManufacturer Part Number:EMI102-10Manufacturer Website Address:http://www.eaton.com/EatonCom/Markets/NorthAmericaBrand Name:EatonProduct Line:ePDUProduct Name:ePDU 24-Outlets PDU

Marketing Information:Eaton G3 Metered Input ePDUs provide a best-in-class design featureing billing grade accuracy monitoring of input and branch circuits on a local LCD pixel display or over a network connection. The high accuracy meter will measure current, voltage, power and energy for load balancing, capacity planning, efficiency monitoring and energy usage reporting. Designed for IT and data center applications means high reliability and a robust design made for high operating temperatures found in containment or networking closets.

Advanced LCD pixel display for local display of current, voltage, power, energy and menu setup of parameters such as IP address or display rotationHigh operating temperature (140F / 60C) for containment or hot network closet environmentsHot-swap meter for servicability of without removing power to the rack+/- 1% billing grade accuracy for high accuracy reporting of energy usageDaisy chain of IP addresses allows four devices to share one network connectionColor coded outlet sections simplify load balancing

Plug/Connector TypeNEMA L5-30PReceptacle TypeNEMA 5-20RReceptacle Detail24 x NEMA 5-20RInput Voltage120 V ACPower Rating (Watt)2.88 kWInput Current24 ANetwork (RJ-45)YesMount TypeRack-mountableRack Height38UCord Length10 ftHeight66.50" (1689.10 mm)Width2.05" (52.07 mm)Depth2.10" (53.34 mm)Weight (Approximate)6.85 kgCountry of OriginChinaLimited Warranty3 Year

EMI102-10
