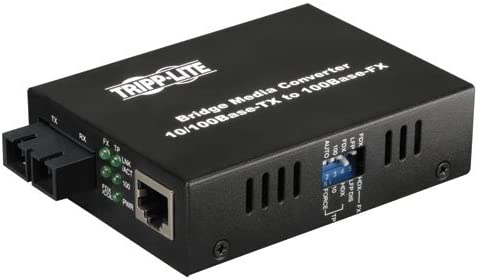

Tripp Lite N784-001-SC External Multimode Media Converter 10/100 FX/TX SC/RJ45, 2km, 1300nm

AMAZON.CA PRODUCT DESCRIPTION
null

FROM THE MANUFACTURER

Extend your network and save money with Tripp Lite's N784-001-SC Media Converter. The N784-001-SC converts Cat5/6 cables to SC-connected fiber optic, allowing for extension distances of up to 2 km and saving you money on costly long-run cables. With advanced features like selectable half or full duplex operation, 1310 nm wavelength, automatic MDI/MDI-X configuration and link fault pass-through, the N784-001-SC supplies superior signal quality and gives you ultimate network control. For extra flexibility, the converter can be powered either by an AC adapter or USB port. The N784-001-SC is compatible with both 62.5/125 and 50/125 multimode fiber cable. For peace of mind, the unit is RoHS-compliant and comes with a 1-year warranty.

KEY FEATURES
TRIPP LITE'S N784-001-SC FIBER OPTIC 10/100BASET TO 100BASEFX-SC MEDIA CONVERTER:
* Ideal cost-effective solution for extending network distance
* Extend networks up to 2 km by converting UTP Ethernet to Fiber Optic
* Switch selectable half or full duplex operation
* 1310 nm wavelength
* Automatic MDI/MDI-X configuration
* Can be powered via USB or AC adapter
* Diagnostic LEDs and link fault pass-through (LFP) detect failures

The Cost-Effective Solution for Large-Scale Network Applications
Click here for a larger image N784-001-SC Connection Diagram
Click here for a larger imageTHE COST-EFFECTIVE SOLUTION FOR LARGE-SCALE NETWORK APPLICATIONS
Your network no longer has to be limited by UTP cabling or the high price of extending its reach. With Tripp Lite's N784-001-SC 10/100BaseT to 100BaseFX-SC Media Converter, you can extend your network up to 2 km with fast, cost-effective fiber optic cabling. The N784-001-SC allows you to upgrade your application coverage while maintaining your existing infrastructure, saving you money and time.

WIDE COMPATIBILITY
The N784-001-SC uses widely compatible SC fiber optic connectors and a standard RJ45 Cat5/6 connector. It provides a 1310 nm wavelength and is also compatible with both 62.5/125 and 50/125 multimode fiber cable, allowing you to integrate the unit into existing applications seamlessly.

ADVANCED MONITORING AND CONTROL
Monitoring and controlling your network nodes is easy with advanced features like selectable half or full duplex operation, automatic MDI/MDI-X configuration, diagnostic LEDs and link fault pass-through (LFP). LFP allows the unit to communicate across multiple LFP-enabled nodes to detect and report failures in the network. Five LEDs indicate operating and alert status of the unit and connected components.

FLEXIBLE INSTALLATION
With the ability to be powered by either an AC adapter or via USB, the N784-001-SC allows for flexible installation at any point in your network. The unit does not have to remain close to a computer, server or other signal source.

PEACE OF MIND
The N784-001-SC has an environmentally friendly, RoHS-compliant design and comes with a 1-year warranty for extra peace of mind.

TECHNICAL SPECIFICATIONS
Click here for a larger image Tripp Lite N784-001-SC Fiber Optic 10/100BaseT to 100BaseFX-SC Media Converter: Connectors: 1 x RJ45 (Female); 1 x SC (Female) Dimensions (HxWxD): 1.0 in. x 3.7 in. x 2.8 in. Material of Construction: Steel WHAT'S IN THE BOX
* N784-001-SC 10/100 Media Converter, UTP - SC
* AC-DC Power Adapter ( 100-240V )
* Owner's Manual

Media Converters N784-001-SC N784-001-ST Connectors 1 x RJ45; 1 x SC 1 x RJ45; 1 x ST Extension Distance 2 km 2 km LFP Compatible Warranty 1-year 1-year
