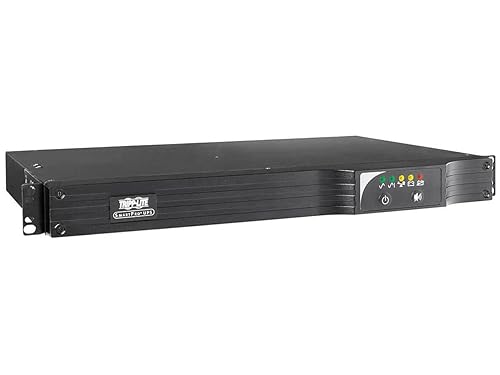

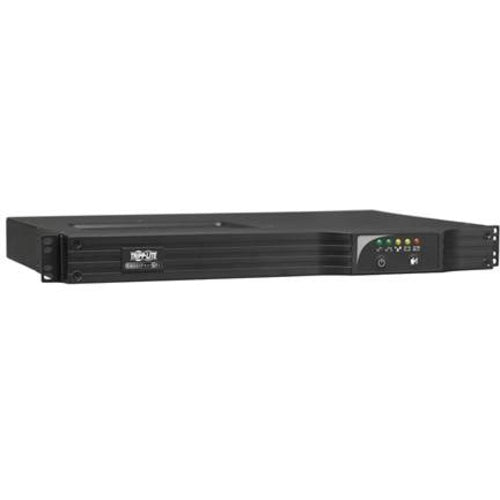

Tripp Lite Smart UPS, Line Interactive, Rack, 500VA
Model Number: SMART500RT1U
Tripp Lite Smart UPS, Line Interactive, Rack, 500VA is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Tripp Lite's SMART500RT1U intelligent, line-interactive rack/tower uninterruptible power supply prevents data loss, downtime and equipment damage due to power outages, voltage fluctuations and transient surges. Requires only one rack space (1U) in a 2 or 4 post rack, with included accessories for upright tower placement. Large internal batteries offer 14.6 minutes half load runtime and 3.2 minutes at full load. Maintains regulated 120V nominal output without using battery power during brownouts as low as 90V. 500VA/300 watt power handling capability is compatible with networking, telecom and other sensitive electronic applications. Includes 6 UPS supported outlets with a single outlet load bank that can be individually controlled via software interface to reboot select equipment on demand or shed less significant loads to extend battery runtime for more critical equipment. Includes 1 surge-only outlet for peripherals not requiring battery backup. Supports simultaneous remote monitoring of UPS and site power conditions via built-in USB and DB9 monitoring ports. Includes PowerAlert UPS monitoring and unattended shutdown software with complete cabling. Built-in accessory slot supports SNMP with optional SNMPWEBCARD adapter. Emergency Power Off (EPO) interface offers option for instantaneous power-off of UPS and connected equipment in the case of fire or emergency situation. Multi-function audible alarms and set of 5 front panel LEDs offer at-a-glance notification of UPS and line power status. Network-grade AC surge suppression protects equipment from damage and performance problems resulting from transient surges and line noise. Attractive all-black color scheme. USB, RS232, EPO and optional SNMP/Web card are available for simultaneous use NEMA 5-15P input; 7 NEMA 5-15R outlets Front panel status LEDs; 1 switched output load bank 500VA line-interactive 1U rack/tower UPS 120V nominal output during brownouts as low as 90V.
Item Weight | 18.74 pounds |
ASIN | B00DOALKU2 |
Item model number | SMART500RT1U |
Customer Reviews | 5.0 5.0 out of 5 stars 1 rating5.0 out of 5 stars |
Best Sellers Rank | #1,102 in Computer Uninterruptible Power Supply Units |
Is Discontinued By Manufacturer | No |
Date First Available | August 31, 2011 |
Manufacturer | Tripp-Lite |
Brand | Tripp Lite |
Item Dimensions LxWxH | 17.5 x 1.77 inches |
Voltage | 120 Volts |
Item Weight | 18.74 Pounds |
Form Factor | Rack |
Height | 1.7 In |
Depth | 11.3 In |
Outlet Orientation | 1 Switchable Load Bank |
Recommended Electrical Service | 15a 120v |
Ethernet | Snmpwebcard Compatible |
USB | 1 Usb Port |
Outlets | 6 |
Product Color | Black |
Half Load Run Time | 17 Minutes |
Full Load Run Time | 5 Minutes |
LEDs | Battery Charge |
Battery Run Time | 3 Min |
Operating Temperature | +32 To +104 Degrees Fahrenheit |
Overload | 15a Input Breaker |
Output Voltage | Ac 120 V |
UPS Technology | Line Interactive |
Product Type | Ups |
Serial | 1 Db9 Communication Port |
Batteries | Rechargeable Batteries |
Weight | 15.83 Lbs |
Maximum Input Amps | 5.6a |
Width | 17.3 In |
Rackmount | Yes |
Voltage | 120 V |
Alarms | Low Battery |
Output Nominal Voltage | 120 Vac |
Dimensions | 1.75" X 17.5" X 11.75" |
Output Voltage Wave Form | Sine Wave |
Short Circuit | 15 A Circuit Breaker |
Power Protection Type | Rackmount Ups Battery Backup |
Cord Length | 10' |
