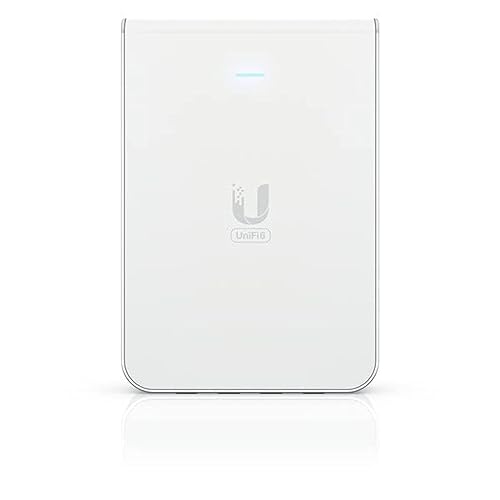

Ubiquiti U6-IW UniFi 6 in-Wall Access Point, Dual-Band (2.4 GHz/5 GHz), WiFi 4 / WiFi 5 / WiFi 6, 4 x 1GbE RJ45 Data-Out Ports, 1 x 1GbE RJ45 Data-in Port, White
Model Number: U6-IW
Ubiquiti U6-IW UniFi 6 in-Wall Access Point, Dual-Band (2.4 GHz/5 GHz), WiFi 4 / WiFi 5 / WiFi 6, 4 x 1GbE RJ45 Data-Out Ports, 1 x 1GbE RJ45 Data-in Port, White is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
The Access Point WiFi 6 In-wall (U6 IW) is a dual-band, wall-mounted access point with (4) GbE RJ45 ports that brings plug-and-play WiFi 6 to your home or office. One of the U6 IW's ports also supports 802.3 af PoE output so you can connect and power an Ethernet device. With its 2.4 and 5 GHz WiFi 6 bands, the U6 IW offers an aggregate, over-the-air throughput rate of 5.3 Gbps, which can support over 300 clients. The U6 IW is also Bluetooth-compatible so it can be set up in minutes and managed from anywhere via the UniFi Network Application or UniFi Network Mobile App.
TECHNICAL SPECIFICATIONS
Dimensions: 139.66 x 96 x 31.19 mm (5.5 x 3.78 x 1.28")
Weight: 460 g (1.01 lb)
Enclosure materials: Plastic, aluminum
Mount material: Aluminum
Management interfaces: Ethernet, Bluetooth
Networking interfaces: (1) Data-in: 1GbE RJ45 port, (4) Data-out: 1GbE RJ45 ports
PoE interfaces: (1) PoE in (PoE output not used), (1) PoE out (requires a PoE+ switch)
Button: Factory reset
LED: White/blue
Power method: PoE
Power supply: UniFi PoE switch, 48V, 0.5A PoE adapter (optional)
Max. power consumption: Excluding PoE output: 13.5W
Max PoE wattage per port by PSE: 15.4W* (*Requires a PoE+ switch)
Voltage range PoE mode: 44—57V DC
Max. TX power: 2.4 GHz – 22 dBm; 5 GHz – 26 dBm
MIMO: 2.4 GHz – 2 x 2 (UL MU-MIMO); 5 GHz – 4 x 4 (DL/UL MU-MIMO)
Throughput rate: 2.4 GHz – 573.5 Mbps; 5 GHz – 4.8 Gbps
Antenna gain: 2.4 GHz – 5 dBi; 5 GHz – 5.9 dBi
Operating temperature: -30 to 60° C (-22 to 140° F)
Operating humidity: 5 to 95% noncondensing
Certifications: CE, FCC, IC
WiFi standards: 802.11a/b/g, WiFi 4/WiFi 5/WiFi 6
Wireless security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID: 8 per radio
VLAN: 802.1Q
Advanced QoS: Per-user rate limiting
Guest traffic isolation: Supported
Concurrent clients: 300+
Zero-wait DFS: Yes
Supported Data Rates:
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4): 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
802.11ac (WiFi 5): 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6): 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
| Brand | Ubiquiti Networks |
| Manufacturer | Ubiquiti Networks |
| Place of Business | New York, NY, 10017 |
| Model | U6-IW |
| Part Number | U6-IW |
| OS | RouterOS |
| Compatible Devices | Smartphone |
| Special features | QoS, Access Point Mode |
| Mounting Hardware | U6-IW |
| Number of Items | 1 |
| Batteries included | No |
| Batteries Required | No |
| Data transfer rate | 573.5 Megabits Per Second |
| Wireless Standard | Bluetooth |
| Frequency | 5 GHz |
| Number of Ports | 6 |
| Connector Type | Wi-Fi |
| Does it contain liquid? | No |
| Language | English |
| Item model number | U6-IW |
| ASIN | B09TYD6HX1 |
| Date First Available | Jan. 4 2023 |
| Customer Reviews | 4.2 4.2 out of 5 stars 16 ratings 4.2 out of 5 stars |
| Best Sellers Rank | #8,880 in Electronics (See Top 100 in Electronics) #25 in Network Access Points |
| Brand | Ubiquiti Networks |
| Special feature | QoS, Access Point Mode |
| Frequency band class | Dual-Band |
| Wireless communication standard | Bluetooth |
| Compatible devices | Smartphone |
| Frequency | 5 GHz |
| Included components | U6-IW |
| Connectivity technology | Wi-Fi |
| Colour | White |
| Antenna type | Internal |
