Transition Networks 10/100 Bridging 10/100Base-TX to 100Base-FX Media
Model Number: SBFTF1013-105-NA
Transition Networks 10/100 Bridging 10/100Base-TX to 100Base-FX Media is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Transition Networks 10/100 Bridging 10/100Base-TX to 100Base-FX Media

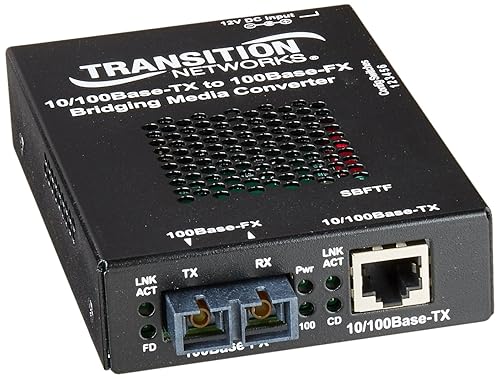

The Transition Networks SBFTF1013-105-NA 2-port RJ-45 to SC standalone fast Ethernet media/rate converter extends network distance up to 120 Km. It features auto-negotiation for automatic configuration to achieve the best mode of operation over a link and AutoCross that automatically detects/configures the twisted pair port to the correct MDI or MDI-X configuration. It supports link pass-through and far end fault for efficient troubleshooting.
- Stand-alone media/rate converter allows users to integrate fiber optic cabling into 10/100Base-TX copper environments.
- Dimensions: 1"H x 3.25"W x 4.8"D.
- Suitable for use with PC.
- Comes in black color.
- Interfaces/ports: One 10Base-T or 100Base-TX RJ-45, one multi mode SC.
- Power supply: External AC/DC, 12 VDC, 0.8 A min.
- LEDs: PWR (power), FD (fiber duplex), LNK/ACT, CD (copper duplex).
- Data rates: 10 Mbps, 100 Mbps (layer 2).
- IEEE standards: IEEE 802.3, Switches: Auto-negotiation on/off, half or full-duplex with auto-negotiation off, 10/100 Mbps with auto-negotiation off.
- Packet size: 2044 bytes untagged, 2048 bytes tagged, RAM buffer: 512KB.
- Maximum distance supported: 1.24 mile.
- Features auto-MDI/MDIX, auto-negotiation, link pass through and far-end-fault (FEF) detection.
- Temperature: 0 - 50 deg C operating, Humidity: 5 - 90 percent non-condensing.
- Meets UL, FCC Class A, VCCI Class 1, CISPR22/EN55022, Class A, EN55024, EN61000, CE Mark certifications and standards.
- Weight: 2 lbs.
- Sold as 1 Each.
SBFTF1013-105-NA
| Brand | Transition Networks |
| Item model number | SBFTF1013-105-NA |
| Product Dimensions | 12.19 x 8.2 x 2.49 cm; 0.28 g |
| Item dimensions L x W x H | 12.2 x 8.2 x 2.5 Centimetres |
| Voltage | 12 Volts |
| ASIN | B001GQFFOI |
| Date First Available | Sept. 8 2011 |
| Manufacturer | Transition Networks, Inc |
