Panduit R100X125V1C P1 Cassette Turn-Tell Self-Laminated Label, Vinyl, White 12 – 10 AWG Wire/Cable

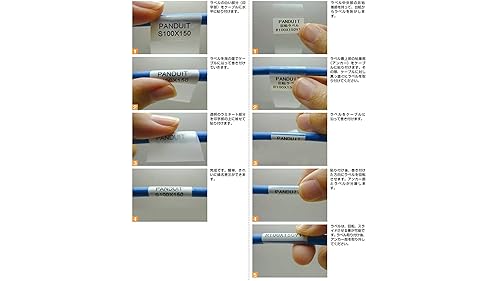

This Panduit R100X125V1C Turn-Tell cassette contains white thermal transfer label material for printing 1 x 1.25 inch labels for marking cable or wire. These labels have a 0.38" blank printable area and will fit wire with an outside diameter of 0.16 to 0.22 inches or #12 to #10 American Wire Gauge (AWG). They will accommodate a Category 3 UTP telephone wire. The label material is vinyl, which resists oil, has low moisture absorption, and is non-conductive. The labels have a pressure sensitive adhesive backing, are self-laminating, and can rotate on the cable for visibility at any angle or easy repositioning. This allows the labels to be installed on terminated wires or cables without disconnecting. The labels have a temperature range of -40 to +200 degrees F. This cassette contains 100 labels and includes both label material and ribbon. It is compliant with the Restriction of Hazardous Substances (RoHS) directive and is suitable for use with Panduit's LS8E and LS8EQ hand-held thermal transfer printers.Thermal transfer (TT) labels come in sheets, rolls, or cassettes with an adhesive backing and a surface material die-cut into individual shapes for use in thermal transfer printers. As the label passes through the printer, a thermal printhead melts a coating of wax or resin from the ink ribbon onto the label where it is then absorbed. This printing method is typically used in manufacturing for in-house printing of bar codes and alphanumeric identification, price tags, warning labels, and other specialty print jobs. Panduit manufactures electrical and networking products. The company, founded in 1955, is headquartered in Tinley Park, Il.

R100X125V1C

Product Dimensions	152.4 x 60.96 x 152.4 cm; 140 g
Date First Available	June 17 2014
Item model number	R100X125V1C
Colour	White
Size	12 – 10 AWG Wire/Cable
Material	Vinyl
Brand	Panduit
Finish type	Vinyl
