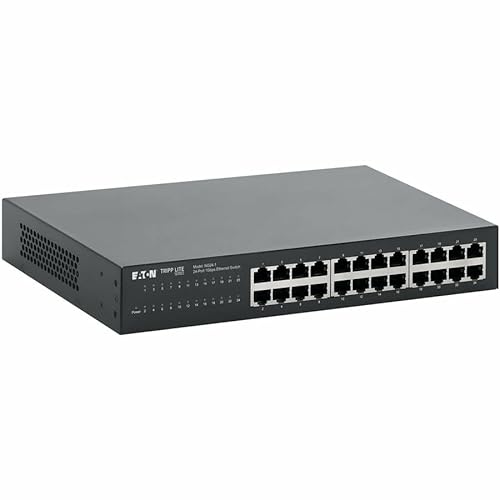

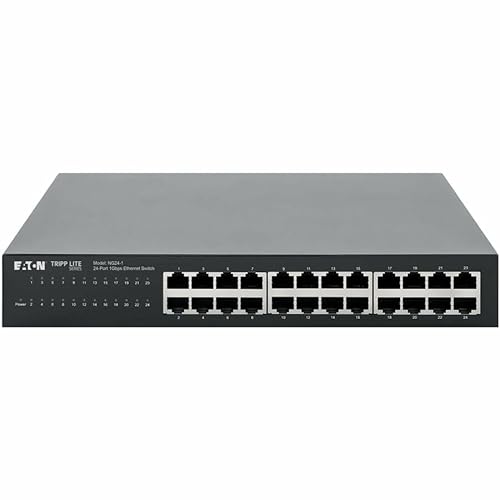

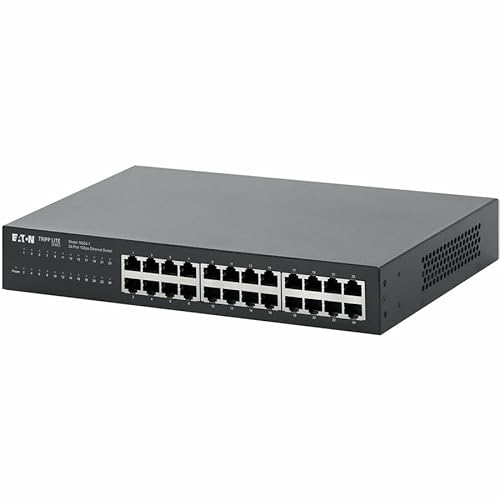

Eaton Tripp Lite Series 24-Port 10/100/1000 Mbps Desktop Gigabit Ethernet Unmanaged Switch, Metal Enclosure

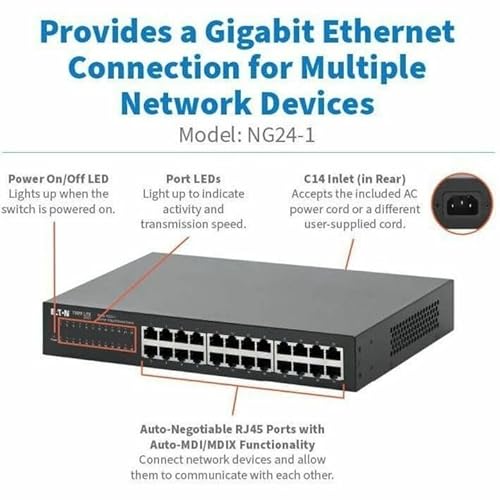

24-Port Unmanaged Gigabit Ethernet Switch for Small Offices and WorkgroupsThe energy-efficient NG24-1 network switch connects up to 24 devices, such as computers, routers, printers and servers, to a Gigabit Ethernet network and allows them to communicate with each other. It's recommended for your small office or data center, workgroup or creative production environment. It helps you share large bandwidth-intensive files, such as CAD drawings and videos, at Gigabit (1000 Mbps/1 Gbps) speeds, improving efficiency and cutting costly downtime.Maximum Network FunctionalityThe NG24-1 features 24 twisted-pair RJ45 Gigabit Ethernet ports that support auto-negotiable 10/100/1000 Mbps and auto MDI/MDIX functionality, so crossover cables and uplink ports are not needed for connections to PCs, routers and other switches. No configuration is required, so you can have your Gigabit network up and running immediately. IEEE 802.3x flow control (full duplex) and back pressure (half duplex) allow smooth transmission of large files.Complies with IEEE Energy Efficient Ethernet StandardsThe NG24-1 supports IEEE 802.3az Energy Efficient Ethernet standards by automatically shifting unused ports into a low-power state without interrupting network connections. It consumes very little input power-just 10W. It also meets IEEE 802.3ab, 802.3i and 802.3u standards.Plug-and-Play Functionality for Easy UseNo configuration is required in setting up the unmanaged NG24-1, so you can have your 10/100/1000 Mbps network up and running immediately. Cat5/5e/6/6a UTP/STP cables (sold separately) provide optimal performance. Easy-to-read LEDs indicate connection and activity status for each port. The NG24-1 supports MAC address auto-learning and auto-aging for efficient routing.Heavy-Duty Metal Enclosure with Versatile Installation OptionsThis rugged switch features a detachable C13/C14 power cord that connects to a protected UPS or AC wall outlet. The housing contains no fan, resulting in silent operation. The NG24-1 is designed for desktop placement with the included rubber feet or 1U rack mounting using the included brackets.

NG24-1

Product Dimensions	7"L x 11"W x 1.7"H
Item Weight	3.2 Pounds
Voltage	120 Volts
Maximum Power	16 Watts
Interface Type	RJ45, Uplink Port
Manufacturer	Eaton Corporation
UPC	037332287236
Item Weight	3.2 pounds
ASIN	B0FKMQZSRP
Item model number	NG24-1
Best Sellers Rank	#1,599 in Computer Networking Switches
Date First Available	July 31, 2025
Brand	Tripp Lite series
Number of Ports	24
Included Components	2 x Rack-mounting Brackets, 4 x Rubber Feet, 8 x Bracket Screws, Detachable C13 to C14 power cord, 5 ft. (1.5 m), NG24-1 24-Port Gigabit Ethernet Unmanaged Switch, Owner's Manual See more
Color	Black
Compatible Devices	Home Office, Network, PC, Printer, Router, Server, Workplace
