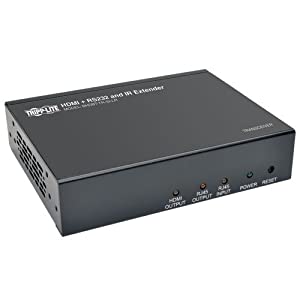

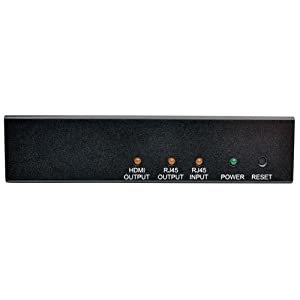

Tripp Lite HDBaseT HDMI Over Cat5e/6/6a Extender Transceiver, Serial and IR Passthrough, 4Kx2K UHD, Up to 328 ft. (100 m) (BDHBT-TR-SI-LR) Serial & IR (328 ft)

Insert the BHDBT-TR-SI-LR HDBaseT HDMI over Cat5e/6/6a Extender Transceiver between the transmitter and receiver units in your Tripp Lite HDBaseT installation to extend the range of your signal. Connect its HDMI port to a projector, monitor or television to expand your installation.

Using a single Cat5e/6/6a cable, the BHDBT-TR-SI-LR transmits uncompressed HDMI audio and video, RS-232 serial and IR control signals up to 328 feet (100 m) from the previous unit in the chain (either the transmitter or another transceiver), including 1920 x 1080(1080p) signals @ 60 Hz and even Ultra High Definition (UHD) 3840 x 2160 (4K x 2K) video signals. Add up to five BHDBT-TR-SI-LR Extender Transceivers to the chain for a total range up to 2,000 feet (600 m) with a monitor connected to each transceiver.

RS-232 serial signals and IR remote control signals (@ 39 KHz) also pass through the transceiver, so your HDBaseT installation can control such RS-232 devices as scanners and touchscreen displays at baud rates up to 115 Kbps. You can also operate a Blu-ray player using its remote when at the remote monitor and vice versa. Locking HDMI ports (ideal for use with Tripp Lite’s P569-006-LOCK High-Speed HDMI cables with locking connectors) prevent cables from coming loose or undone, ensuring an intact signal. Attach the BHDBT-TR-SI-LR to a wall, rack or pole using the included hardware.

Key Features * Extends and expands your Tripp Lite HDBaseT installation
* Connects multiple monitors at different links in a chain
* Extends a 3840 x 2160 (4K x 2K) signal up to 328 feet (100 m)
* Extends a 1080p @ 60 Hz signal up to 328 feet (100 m)
* Supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD
* 1-year limited warranty
